Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

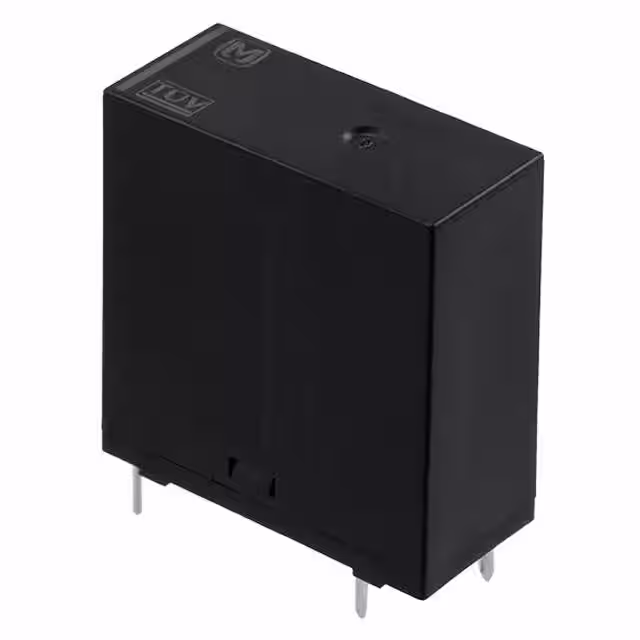

LKG1AF-9V-10-1RELAY GEN PURPOSE SPST 10A 9V |
2,759 | - |
|
Datasheet | LK-G | Box | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 58.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.9 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
LKQ1AF-12V-TV-5RELAY GEN PURPOSE SPST 5A 12V |
1,684 | - |
|
Datasheet | LK-Q | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1285VA | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
LKQ1AF-24V-TV-5RELAY GEN PURPOSE SPST 5A 24V |
3,143 | - |
|
Datasheet | LK-Q | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1285VA | 10.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
LKQ1AF-24V-TV-8RELAY GEN PURPOSE SPST 8A 24V |
1,665 | - |
|
Datasheet | LK-Q | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 10.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
LKQ1AF-5V-TV-5RELAY GEN PURPOSE SPST 5A 5V |
1,897 | - |
|
Datasheet | LK-Q | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1285VA | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
LKQ1AF-5V-TV-8RELAY GEN PURPOSE SPST 8A 5V |
3,488 | - |
|
Datasheet | LK-Q | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
LKQ1AF-5V-TV8-Y2RELAY GEN PURPOSE SPST 8A 5V |
2,753 | - |
|
Datasheet | LK-Q | Box | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
LKQ1AF-9V-TV-5RELAY GEN PURPOSE SPST 5A 9V |
2,298 | - |
|
Datasheet | LK-Q | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1285VA | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 7.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
LKQ1AF-9V-TV-8RELAY GEN PURPOSE SPST 8A 9V |
2,234 | - |
|
Datasheet | LK-Q | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 7.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADZ12105HRELAY GEN PURPOSE SPST 120A 5V |
3,274 | - |
|
Datasheet | ADZ | Box | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 280 mA | Latching, Single Coil | - | Solder Lug | - | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADZ12112HRELAY GEN PURPOSE SPST 120A 12V |
4,670 | - |
|
Datasheet | ADZ | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 116.7 mA | Latching, Single Coil | - | Solder Lug | - | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADZ12105VRELAY GEN PURPOSE SPST 120A 5V |
4,527 | - |
|
Datasheet | ADZ | Box | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 280 mA | Latching, Single Coil | - | Solder Lug | - | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADZ12124VRELAY GEN PURPOSE SPST 120A 24V |
3,628 | - |
|
Datasheet | ADZ | Box | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 58.3 mA | Latching, Single Coil | - | Solder Lug | - | - | 16.8 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADZ22112HRELAY GEN PURPOSE SPST 120A 12V |
3,559 | - |
|
Datasheet | ADZ | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 233.3 mA | Latching, Dual Coil | - | Solder Lug | - | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADZ22105VRELAY GEN PURPOSE SPST 120A 5V |
1,913 | - |
|
Datasheet | ADZ | Box | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 560 mA | Latching, Dual Coil | - | Solder Lug | - | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADZ22112VRELAY GEN PURPOSE SPST 120A 12V |
1,888 | - |
|
Datasheet | ADZ | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 233.3 mA | Latching, Dual Coil | - | Solder Lug | - | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
156-14Q200RELAY GEN PURPOSE 4PDT 24V |
2,700 | - |
|
Datasheet | 156, CII | Bulk | Obsolete | Socketable | 24VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 150 mA | Non Latching | - | Solder Lug | - | - | 20.4 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
156-14T2L0RELAY GEN PURP |
2,835 | - |
|
Datasheet | 156, CII | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | - | Non Latching | - | Solder Lug | - | - | 93.5 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
15722F2L5RELAY GEN PURP |
1,077 | - |
|
Datasheet | 157, CII | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Nom | 2400VA, 280W | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 82.5 VDC | - | 20 ms | 10 ms | -45°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
15732S7A1RELAY GEN PURPOSE DPDT |
3,881 | - |
|
Datasheet | 157, CII | Bulk | Active | Socketable | - | DPDT (2 Form C) | - | - | - | - | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about selecting, comparing and sourcing Power Relays, Over 2 Amps components through Winsun (HK) Electronics.
What should I check when selecting Power Relays, Over 2 Amps components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Power Relays, Over 2 Amps part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Power Relays, Over 2 Amps components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
