Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1904020-5RELAY GEN PURPOSE SPDT 30A 12V |
1,256 | - |
|
Datasheet | V23234, AXICOM | Box | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | - | 141.2 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 7 ms | -40°C ~ 125°C | Silver Alloy | General Purpose | - | - |
|
|
4-1904020-7RELAY GEN PURPOSE SPDT 30A 12V |
4,135 | - |
|
Datasheet | V23234, AXICOM | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 7 ms | -40°C ~ 125°C | Silver Alloy | General Purpose | - | - |
|
|
2-1904022-3RELAY GEN PURPOSE SPDT 30A 12V |
3,906 | - |
|
Datasheet | V23234, AXICOM | Box | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 7 ms | -40°C ~ 125°C | Silver Alloy | General Purpose | - | - |
|
|
3-1904027-2V23234A1004X054-EV-100 |
2,127 | - |
|
Datasheet | V23234, AXICOM | Bulk | Obsolete | Chassis Mount | 24VDC | SPDT (1 Form C) | 20 A | 12VDC - Nom | - | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 16 VDC | 3 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|
|
1-1904008-2V23234B0002X012-EV-100 |
1,918 | - |
|
Datasheet | V23234, AXICOM | Bag | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 12VDC - Nom | - | 160 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 6.5 VDC | 1 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|
|
1-1904007-2V23234B1001X010-EV-144 |
2,210 | - |
|
Datasheet | V23234, AXICOM | Bag | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 12VDC - Nom | - | 141.2 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|
2-1904011-1V23234C0001X003-EV-144 |
4,296 | - |
|
Datasheet | V23234, AXICOM | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 12VDC - Nom | - | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|
|
2-1904011-2V23234C0001X006-EV-100 |
1,849 | - |
|
Datasheet | V23234, AXICOM | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 12VDC - Nom | - | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|
|
1-1904015-3RELAY GEN PURPOSE SPST 20A 24V |
3,360 | - |
|
Datasheet | V23234, AXICOM | Bag | Obsolete | Socketable | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | - | 94.1 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 16 VDC | 3 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy | General Purpose | - | - |
|
|
1904015-5V23234C1004X085-EV-100 |
2,253 | - |
|
Datasheet | V23234, AXICOM | Bulk | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 20 A | 12VDC - Nom | - | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 16 VDC | 3 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|
|
HL2-HP-AC200V-FRELAY GEN PURPOSE DPDT 10A 200V |
4,184 | - |
|
Datasheet | HL | Bulk | Obsolete | Through Hole | 200VAC | DPDT (2 Form C) | 10 A | 125VAC - Nom | - | 6.6 mA | Non Latching | - | PC Pin | - | - | 160 VAC | 60 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

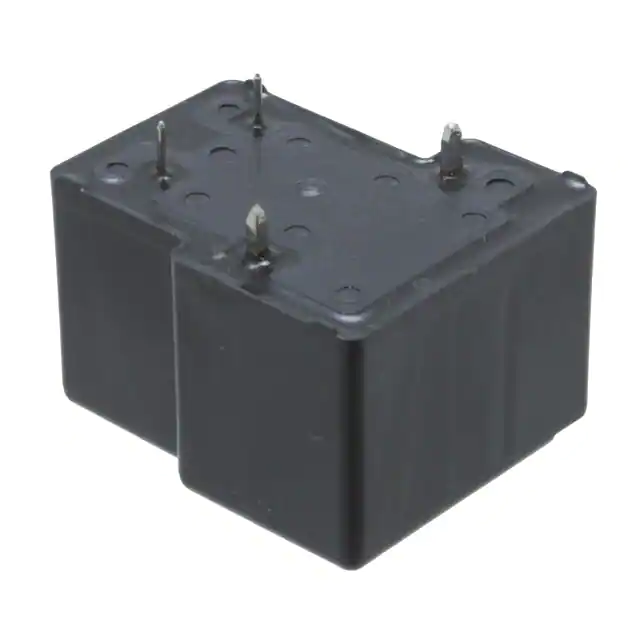

JTN1AF-PA-F-DC12VRELAY GEN PURPOSE SPST 30A 12V |
1,161 | - |
|
Datasheet | JT-N | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 66.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

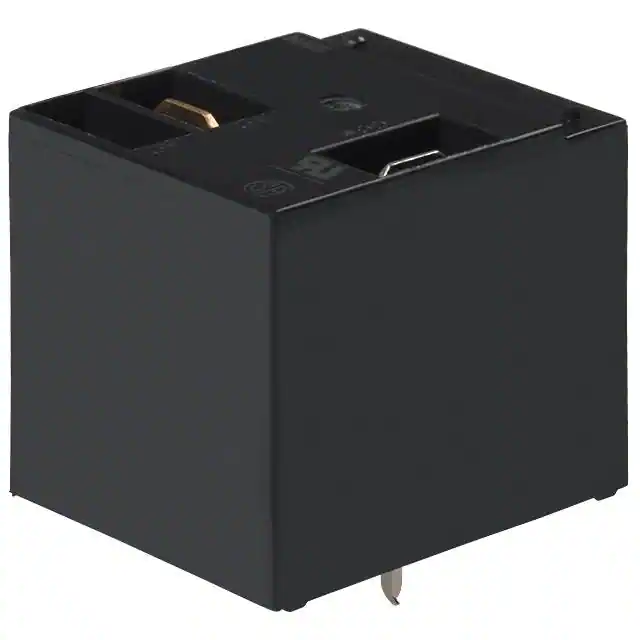

JTN1AF-TMP-F-DC24VRELAY GEN PURPOSE SPST 30A 24V |
4,256 | - |
|
Datasheet | JT-N | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 33.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

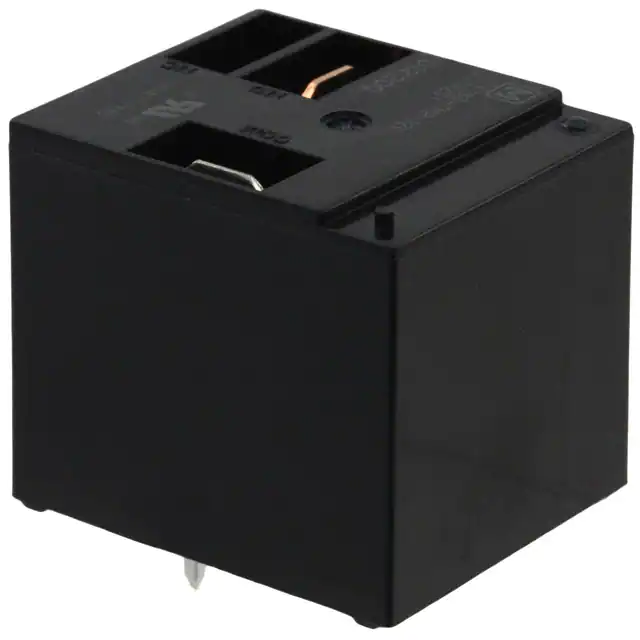

JTV1AF-TMP-12VRELAY GEN PURPOSE SPST 30A 12V |
4,798 | - |
|
Datasheet | JT-V | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 83.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AHN350Y2RELAY GEN PURPOSE SPST 16A 240V |
2,222 | - |
|
Datasheet | AHN | Bulk | Obsolete | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 4.1 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 192 VAC | 72 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
HC1E-HP-AC120V-FRELAY GEN PURPOSE SPDT 5A 120V |
3,716 | - |
|
Datasheet | HC | Bulk | Obsolete | Through Hole | 120VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 12 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 96 VAC | 36 VAC | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC2-L-DC24V-D-FRELAY GEN PURPOSE DPDT 7A 24V |
2,913 | - |
|
Datasheet | HC | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 37 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC3-DC24V-D-FRELAY GEN PURPOSE 3PDT 7A 24V |
2,417 | - |
|
Datasheet | HC | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 1750VA | 37 mA | Non Latching | Diode | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
HC4D-HL-AC120VRELAY GEN PURPOSE 4PDT 3A 120V |
2,348 | - |
|
Datasheet | HC | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 250VAC - Max | 750VA | 10.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -50°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
HJ4-DC12V-DRELAY GEN PURPOSE 4PDT 5A 12V |
3,490 | - |
|
Datasheet | HJ | Bulk | Obsolete | Socketable | 12VDC | 4PDT (4 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 75 mA | Non Latching | Diode | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about selecting, comparing and sourcing Power Relays, Over 2 Amps components through Winsun (HK) Electronics.
What should I check when selecting Power Relays, Over 2 Amps components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Power Relays, Over 2 Amps part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Power Relays, Over 2 Amps components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
