Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ2800-2C-240A5RELAY GEN PURPOSE DPDT 40A 240V |
100 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2800-2C-120A5RELAY GEN PURPOSE DPDT 40A 120V |
1,467 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 96 VAC | 24 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2800-2C-220A6RELAY GEN PURPOSE DPDT 40A 220V |
1,395 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 220VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 18.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 176 VAC | 44 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
AZ943-1AH-12DERELAY GEN PURPOSE SPST 15A 12V |
2,938 | - |
|
Datasheet | AZ943 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 277VAC, 30VDC - Max | 2770VA, 300W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AZ2150-1A-12DEFRELAY GEN PURPOSE SPST 40A 12V |
1,349 | - |
|
Datasheet | AZ2150 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 77.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
AZ576-1C-24DERELAY GEN PURPOSE SPDT 20A 24V |
3,208 | - |
|
Datasheet | AZ576 | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 480VAC, 30VDC - Max | 5540VA, 510W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 8 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
.jpg "AZDC6-2AE-12D")
|

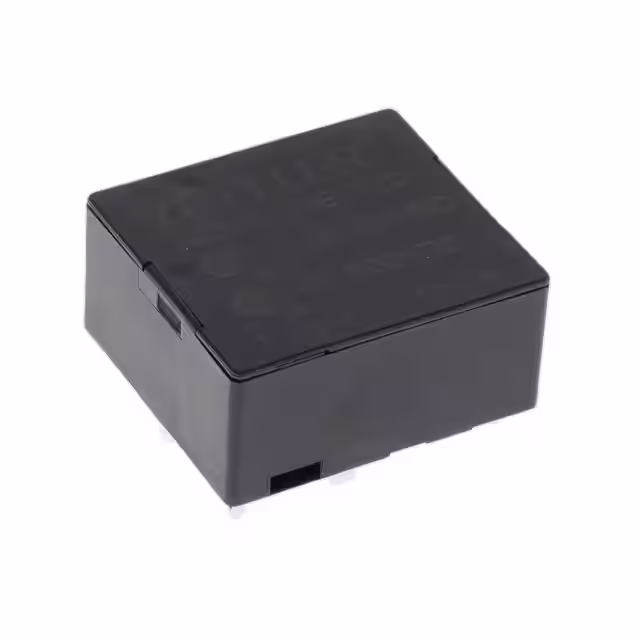

AZDC6-2AE-12DRELAY GEN PURPOSE DPST 12.5A 12V |
2,619 | - |
|
Datasheet | AZDC6 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 12.5 A | 600VDC - Max | 7500W | 116.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ576-1A-24DERELAY GEN PURPOSE SPST 20A 24V |
3,924 | - |
|
Datasheet | AZ576 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 480VAC, 30VDC - Max | 5540VA, 510W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 8 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ576-1C-12DERELAY GEN PURPOSE SPDT 20A 12V |
3,245 | - |
|
Datasheet | AZ576 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 480VAC, 30VDC - Max | 5540VA, 510W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AZ2100-1C-24DEFRELAY GEN PURPOSE SPDT 30A 24V |
3,895 | - |
|
Datasheet | AZ2100 | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 277VAC, 30VDC - Max | 12000VA, 1200W | 36.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
