Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-1A-T DC24RELAY GEN PURPOSE SPST 10A 24V |
483 | - |
|
Datasheet | G2R | Tray | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 21.8 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
G2R-1-T DC5RELAY GEN PURPOSE SPDT 10A 5V |
501 | - |
|
Datasheet | G2R | Tray | Active | Chassis Mount | 5VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 106 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-1-T DC12RELAY GEN PURPOSE SPDT 10A 12V |
1,070 | - |
|
Datasheet | G2R | Tray | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 43.6 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

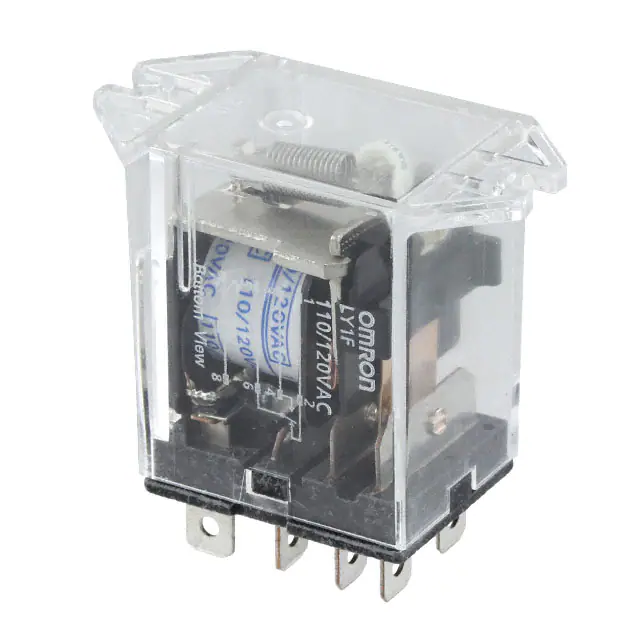

LY1F-AC110/120RELAY GEN PURPOSE SPDT 15A 120V |
170 | - |
|
Datasheet | LY | Bulk | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 9.2 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
LY1F-DC12RELAY GEN PURPOSE SPDT 15A 12V |
3,824 | - |
|
Datasheet | LY | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-1-T DC36RELAY GEN PURPOSE SPDT 10A 36V |
212 | - |
|
Datasheet | G2R | Tray | Active | Chassis Mount | 36VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 14.7 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 25.2 VDC | 5.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
G2R-2-S DC12(S)RELAY GEN PURPOSE DPDT 5A 12V |
351 | - |
|
Datasheet | G2RS | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 43.2 mA | Non Latching | - | Plug In | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
MY2N-GS-R DC24RELAY GEN PURPOSE DPDT 5A 24V |
1,117 | - |
|
Datasheet | MY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 7 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 36.3 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
MY2N-GS-R AC110/120RELAY GEN PURPOSE DPDT 5A 120V |
549 | - |
|
Datasheet | MY | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 27.1 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|

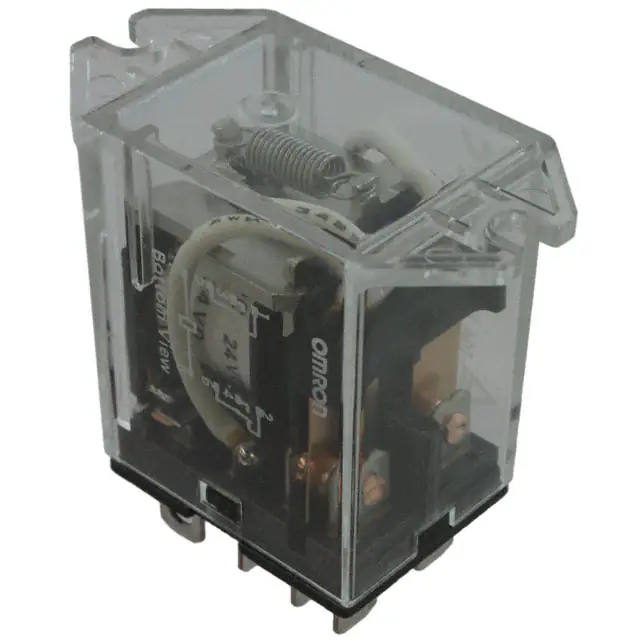

LY2F-DC24RELAY GEN PURPOSE DPDT 10A 24V |
3,777 | - |
|
Datasheet | LY | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 36.9 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
