Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

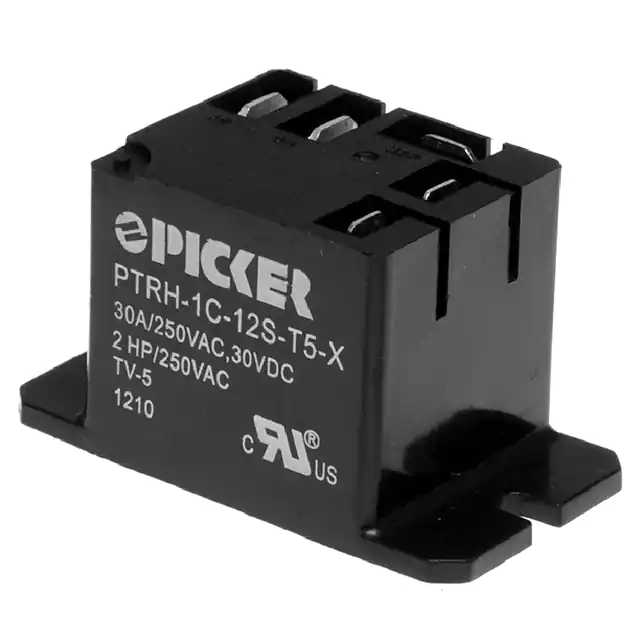

PTRH-1C-12S-T5-XRELAY GEN PURPOSE SPDT 30A 12V |
943 | - |
|
Datasheet | PTRH | Tube | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 300VAC, 110VDC - Max | 9000VA, 3300W | 80 mA | Non Latching | - | Quick Connect - Multiple Sizes | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC375-2C-12S4-XRELAY GEN PURPOSE DPDT 16A 12V |
1,894 | - |
|
Datasheet | PC375 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 34.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
PC113-2C-C1-120A-XRELAY GEN PURPOSE DPDT 12A 120V |
332 | - |
|
Datasheet | PC113 | Tray | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 26.4 mA | Non Latching | - | Solder Lug | - | Class F | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC312-5H-XRELAY TELECOM SPDT 3A 5V |
1,530 | - |
|
Datasheet | PC312 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 48VDC - Max | 900VA, 144W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
PC323-12H-XRELAY TELECOM DPDT 2A 12V |
2,272 | - |
|
Datasheet | PC323 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 250VAC, 48VDC - Max | 750VA, 144W | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
PTRD-1A-24S-1-XRELAY GEN PURPOSE SPST 40A 24V |
265 | - |
|
Datasheet | PTRD | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 110VDC - Max | 12000VA, 4400W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC375-1C-12S1-XRELAY GEN PURPOSE SPDT 16A 12V |
485 | - |
|
Datasheet | PC375 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 34.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
PC118-4C-P-24A-XRELAY GEN PURPOSE 4PDT 5A 24V |
137 | - |
|
Datasheet | PC118 | Tray | Active | Through Hole | 24VAC | 4PDT (4 Form C) | 5 A | 220VAC, 28VDC - Max | 1100VA, 140W | 130.4 mA | Non Latching | - | PC Pin | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC236-1C-24S-XRELAY GEN PURPOSE SPDT 20A 24V |
4,157 | - |
|
Datasheet | PC236 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC, 48VDC - Max | 5540VA, 960W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

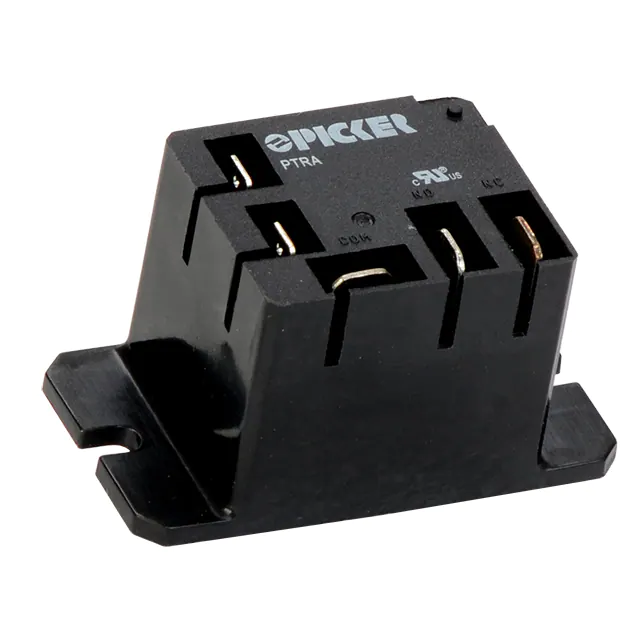

PTRA-1A-220S-T4-XRELAY GEN PURPOSE SPST 40A 220V |
4,855 | - |
|
Datasheet | PTRA | Tube | Active | Chassis Mount | 220VAC | SPST-NO (1 Form A) | 40 A | 300VAC, 110VDC - Max | 12000VA, 4400W | 163.1 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 165 VAC | 86 VAC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
