Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

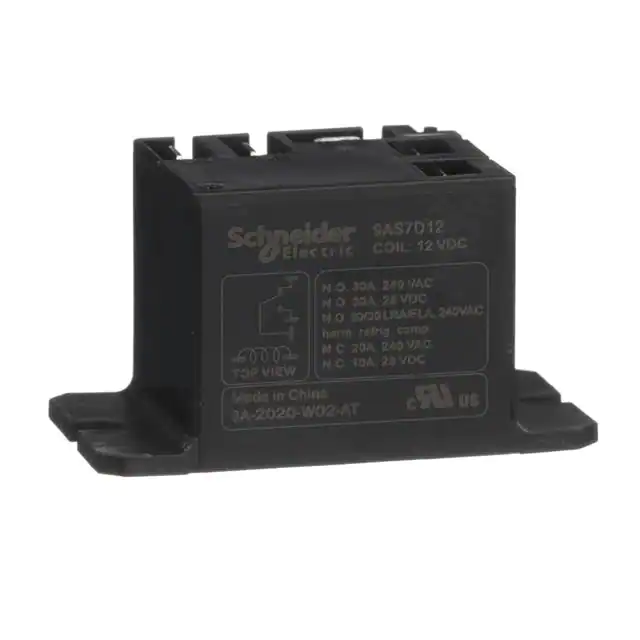

9AS7D12ELECTROMECHNICAL POWER RELAYS, S |
4,285 | - |
|
Datasheet | Harmony | Box | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 277VAC, 28VDC - Max | 8310VA, 840W | 77.4 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|

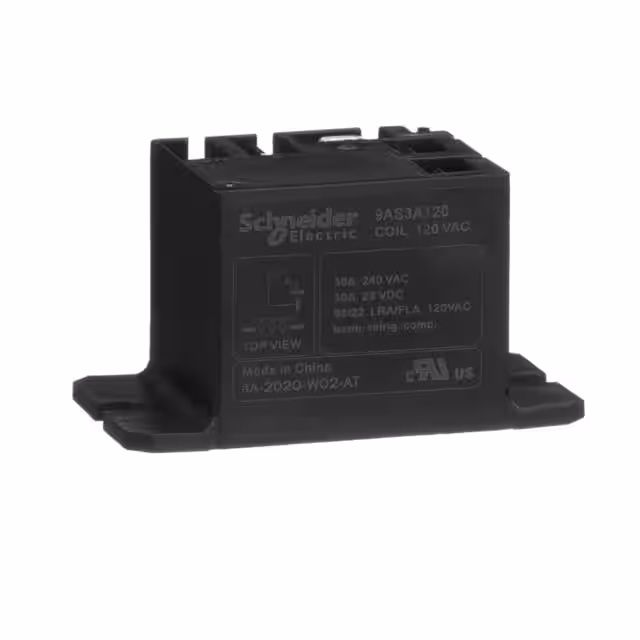

9AS3A120ELECTROMECHNICAL POWER RELAYS, S |
2,811 | - |
|
Datasheet | Harmony | Box | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 28VDC - Max | 8310VA, 840W | 48 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | - | 102 VAC | 24 VAC | 20 ms | 10 ms | -40°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
ABR7S21ELECTROMECHANICAL RELAY- STD. PA |
3,310 | - |
|
Datasheet | Telefast ABE7 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 130VDC - Max | 1250VA, 650W | 15 mA | Non Latching | - | PC Pin | - | - | 19.7 VDC | 2.4 VDC | - | - | - | - | General Purpose | - | - |
|
RSL1PVFUHARMONY, SLIM INTERFACE RELAY PR |
4,127 | - |
|
Datasheet | Harmony | Box | Active | DIN Rail | 60VDC | SPDT (1 Form C) | 6 A | 277VAC - Max | 1662VA | 2.9 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | 3 VDC | 12 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RSL1PRBUHARMONY, SLIM INTERFACE RELAY PR |
4,228 | - |
|
Datasheet | Harmony | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 277VAC - Max | 1662VA | 7.1 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

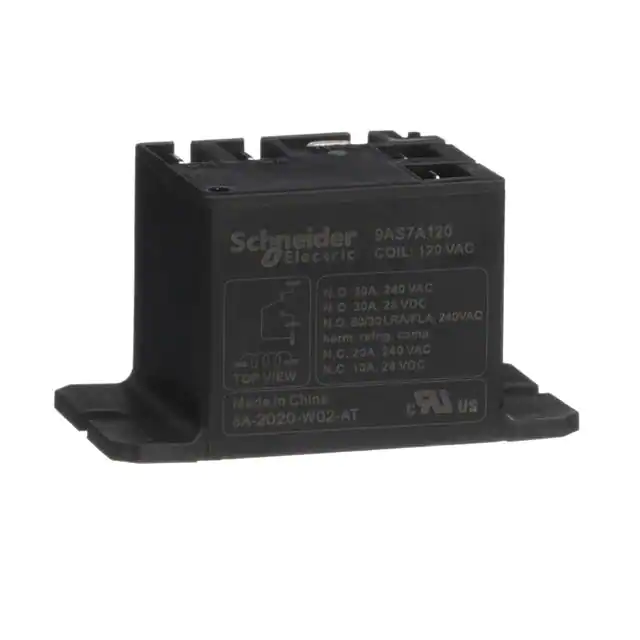

9AS7A120ELECTROMECHNICAL POWER RELAYS, S |
2,702 | - |
|
Datasheet | Harmony | Box | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 30 A | 277VAC, 28VDC - Max | 8310VA, 840W | 48 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | - | 102 VAC | 24 VAC | 20 ms | 10 ms | -40°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
|
RXM2AB2B7PVMRXM RLY MIXED SCKT2C/O 10A 24VAC |
3,789 | - |
|
Datasheet | Harmony | Box | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 133.3 mA | Non Latching | - | Screw Terminal | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RXM2AB2P7PVSRXM RLY SEPARATE SCKT2C/O 10A 23 |
4,605 | - |
|
Datasheet | Harmony | Box | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 15.3 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RXM2AB2B7PVSRXM RLY SEPARATE SCKT2C/O 10A 24 |
4,304 | - |
|
Datasheet | Harmony | Box | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 133.3 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RSB1A120P7PVRSB RLY SCKT1C/O 12A 230VAC VARI |
3,847 | - |
|
Datasheet | Harmony | Box | Active | Chassis Mount | 230VAC | SPDT (1 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 7.1 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | 180 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
