Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8501CO7V08POWER RELAY, TYPE C, 2 HP, 30A R |
3,733 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 208VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|

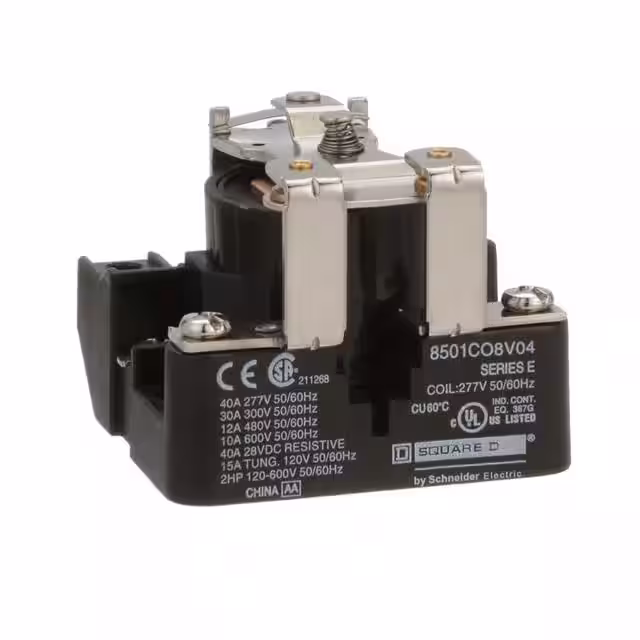

8501CO8V04POWER RELAY, TYPE C, 2.0 HP, 30A |
1,957 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 277VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
8501CDO6V53POWER RELAY, TYPE C, 2.0 HP, 30A |
3,751 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 60°C | - | General Purpose | - | - |
|
8501RS24P14V20RELAY 240VAC 3A TYPE R +OPTIONS |
1,302 | - |
|
Datasheet | Square D 8501R | Box | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 300VAC - Max | 900VA | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
8501CO7V29POWER RELAY, TYPE C, 2 HP, 30A R |
3,708 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 480VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|

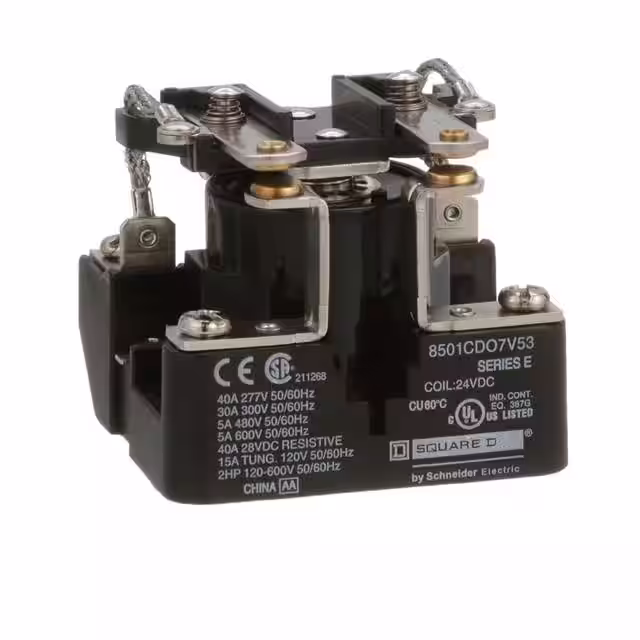

8501CDO7V53POWER RELAY, TYPE C, 2 HP, 30A R |
4,109 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 60°C | - | General Purpose | - | - |
|
|
199AX13OPEN PWR RY, DPDT, 40A, 24VAC |
3,076 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 40 A | 600VAC, 28VDC - Max | 24000VA, 1120W | 2 A | Non Latching | - | Screw Terminal | - | - | 20.4 VAC | 2.4 VAC | - | - | -55°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|

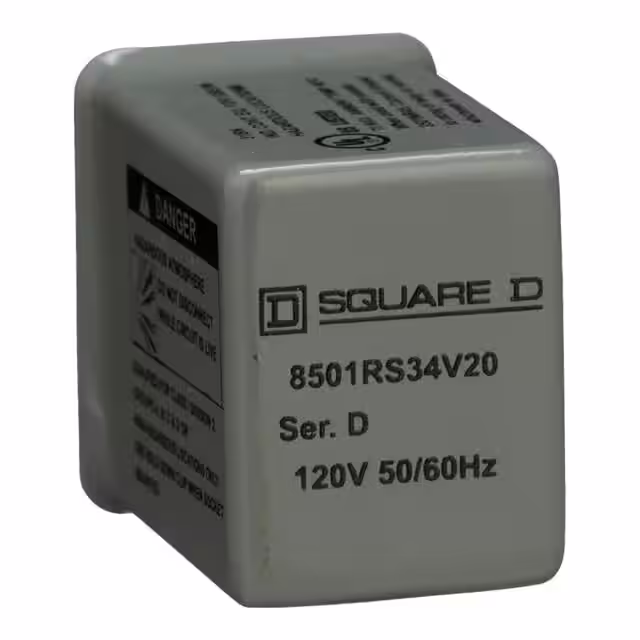

8501RS34V20PLUG IN RELAY, TYPE R, HERMETICA |
2,761 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
199AX14OPEN PWR RY, DPDT, 40A, 120VAC |
1,841 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 40 A | 600VAC, 28VDC - Max | 24000VA, 1120W | 413.8 mA | Non Latching | - | Screw Terminal | - | - | 102 VAC | 12 VAC | - | - | -55°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
8501RSD34V53PLUG IN RELAY, TYPE R, HERMETICA |
4,130 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
