Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

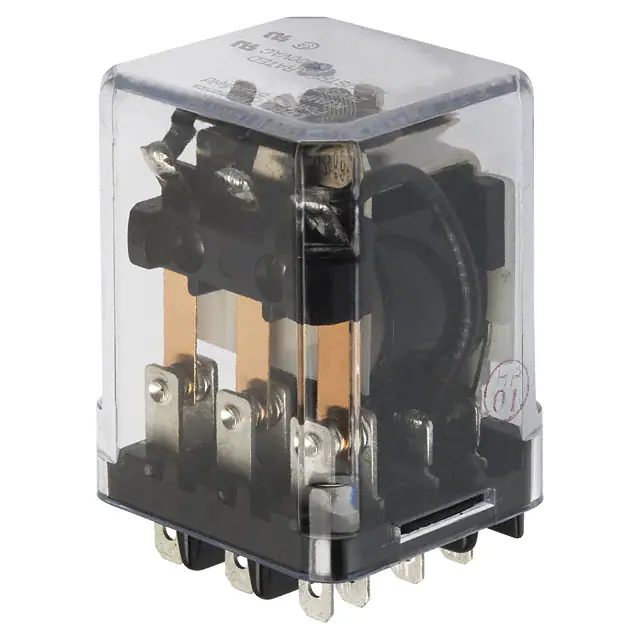

KUMP-14D18-24RELAY GEN PURPOSE 3PDT 15A 24V |
165 | - |
|
Datasheet | KUMP | Tray | Active | Socketable | 24VDC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

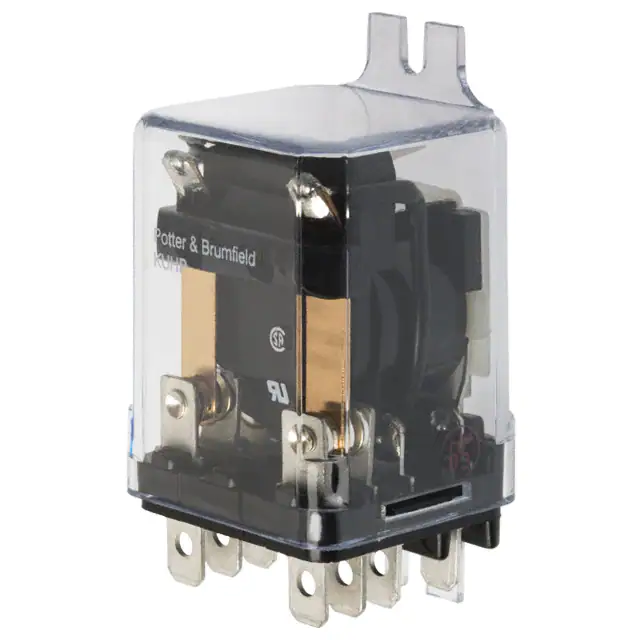

KUHP-11D51-12RELAY GEN PURPOSE DPDT 20A 12V |
635 | - |
|
Datasheet | KUHP | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 100 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUHP-11A51-120RELAY GEN PURPOSE DPDT 20A 120V |
3,502 | - |
|
Datasheet | KUHP | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 24 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

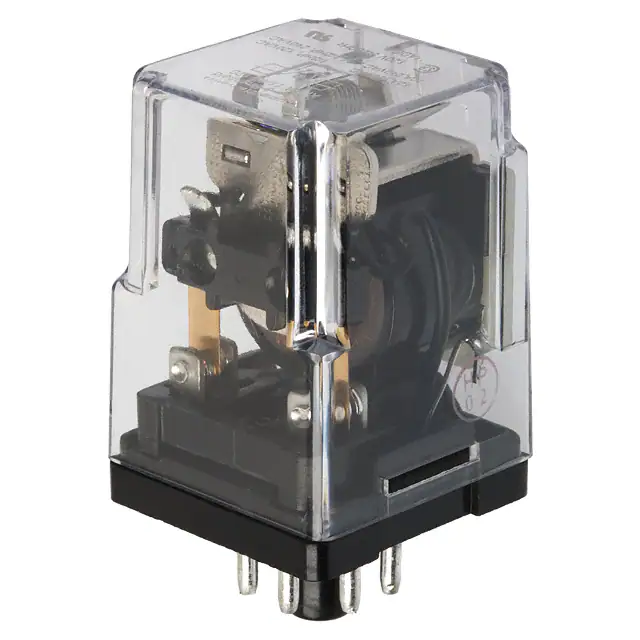

KRPA-11AN-120RELAY GEN PURPOSE DPDT 10A 120V |
238 | - |
|
Datasheet | KRPA | Tray | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KRPA-11AG-120RELAY GEN PURPOSE DPDT 10A 120V |
881 | - |
|
Datasheet | KRPA | Tray | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92P7D52-12RELAY GEN PURPOSE DPST 30A 12V |
482 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Screw Terminal | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

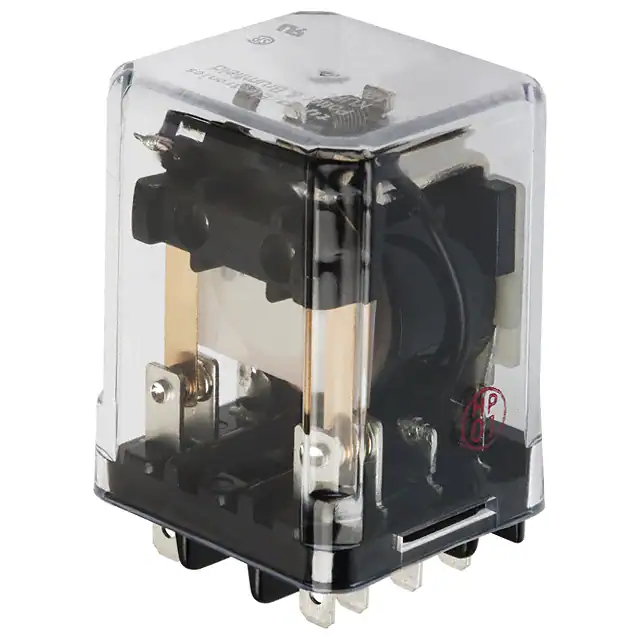

KUEP-11D15-24RELAY GEN PURPOSE DPDT 10A 24V |
144 | - |
|
Datasheet | KUEP | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 150VDC - Max | 1500VA | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUEP-3D15-125RELAY GEN PURPOSE SPST 10A 125V |
202 | - |
|
Datasheet | KUEP | Bulk | Active | Socketable | 125VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 9.6 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 93.75 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

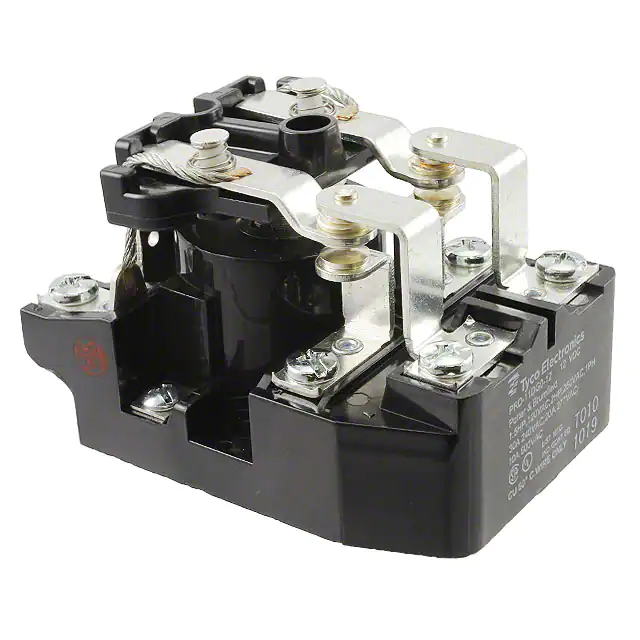

PRD-11DG0-12RELAY GEN PURPOSE DPDT 30A 12V |
4,754 | - |
|
Datasheet | PRD | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KRPA-11DG-125RELAY GEN PURPOSE DPDT 10A 125V |
3,048 | - |
|
Datasheet | KRPA | Tray | Active | Socketable | 125VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 9.6 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 93.75 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
