Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCI-205DMH,000RELAY GEN PURPOSE DPST 3A 5V |
1,967 | - |
|
Datasheet | PCI, OEG | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 50VDC - Max | 720VA, 150W | 69.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
V23105A5406A201RELAY TELECOM DPDT 3A 9V |
1,716 | - |
|
Datasheet | V23105, AXICOM | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 44.4 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.45 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | Telecom | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg "OMI-SH-212LM,594")
|
OMI-SH-212LM,594RELAY GEN PURPOSE DPST 5A 12V |
1,681 | - |
|
Datasheet | OMI, OEG | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OMIH-SS-148LM,000RELAY GEN PURP |
4,743 | - |
|
Datasheet | OMIH, OEG | Bulk | Active | Through Hole | 48VDC | - | 16 A | 250VAC, 30VDC | - | 10.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 36 VDC | 2.4 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
T7NS5D1-06RELAY GEN PURPOSE SPDT 10A 6V |
1,306 | - |
|
Datasheet | T7N | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.2 VDC | 0.6 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
3-1415899-0RZ03-1C4-D018 |
4,403 | - |
|
Datasheet | RZ, SCHRACK | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | - | Non Latching | - | PC Pin | - | Class F | 12.6 VDC | 1.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
8-1415899-8RZ01-1A3-D009 |
1,966 | - |
|
Datasheet | RZ, SCHRACK | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 45 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

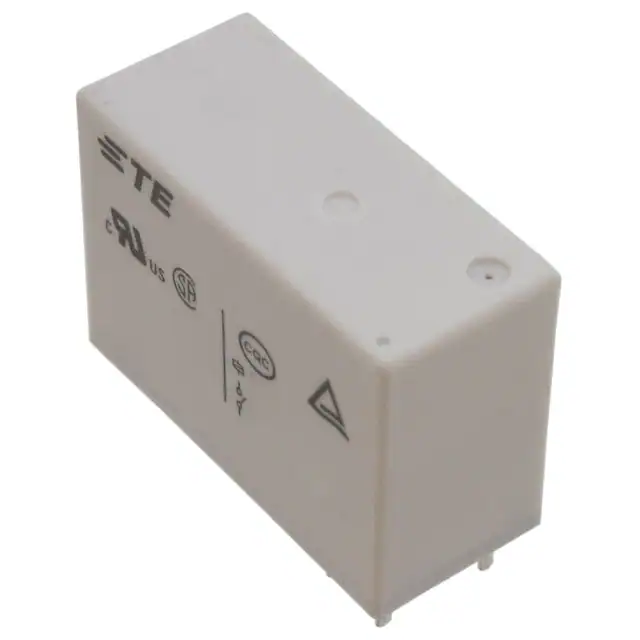

OZ-SS-112LM1,200RELAY GEN PURPOSE SPST 16A 12V |
3,621 | - |
|
Datasheet | OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OSA-SH-212DM5,600RELAY GEN PURPOSE DPST 5A 12V |
3,208 | - |
|
Datasheet | OSA, OEG | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 45 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OSZ-SS-112DM8,000RELAY GEN PURPOSE SPST 16A 12V |
2,520 | - |
|
Datasheet | OSZ, OEG | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 45 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
