Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MT231024RELAY GEN PURPOSE DPDT 10A 24V |
3,657 | - |
|
Datasheet | MT, SCHRACK | Tray | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 2500VA | 50.5 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
15733T300RELAY GEN PURPOSE 3PDT 120V |
3,423 | - |
|
Datasheet | 157, CII | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 15 A | 277VAC, 28 VDC - Nom | 3.1VA | 53.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
5-1415546-3RELAY GEN PURPOSE DPDT 25A 24V |
3,396 | - |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
5-1415546-4RELAY GEN PURPOSE DPDT 25A 24V |
3,983 | - |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
S89R5ABD1-24RELAY IMPULSE SPDT 15A 24V |
2,167 | - |
|
Datasheet | S89R | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 15 A | 277VAC - Max | 4155VA | 375 mA | Latching, Single Coil | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -10°C ~ 60°C | - | Impulse | - | - |
|
|
S89R5ABD1-120RELAY IMPULSE SPDT 15A 120V |
3,103 | - |
|
Datasheet | S89R | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 15 A | 277VAC - Max | 4155VA | 75 mA | Latching, Single Coil | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 60°C | - | Impulse | - | - |
|
RM702L24RELAY GEN PURPOSE 3PDT 16A 24V |
3,124 | - |
|
Datasheet | RM, SCHRACK | Tray | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 70.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUHP-11D17-48RELAY GEN PURPOSE DPDT 20A 48V |
1,818 | - |
|
Datasheet | KUHP | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 26.7 mA | Non Latching | - | PC Pin | - | Class B | 36 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92P7A52-24RELAY GEN PURPOSE DPST 30A 24V |
3,022 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 655.7 mA | Non Latching | - | Screw Terminal | - | Class F | 19.2 VAC | 2.4 VAC | 25 ms | 25 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

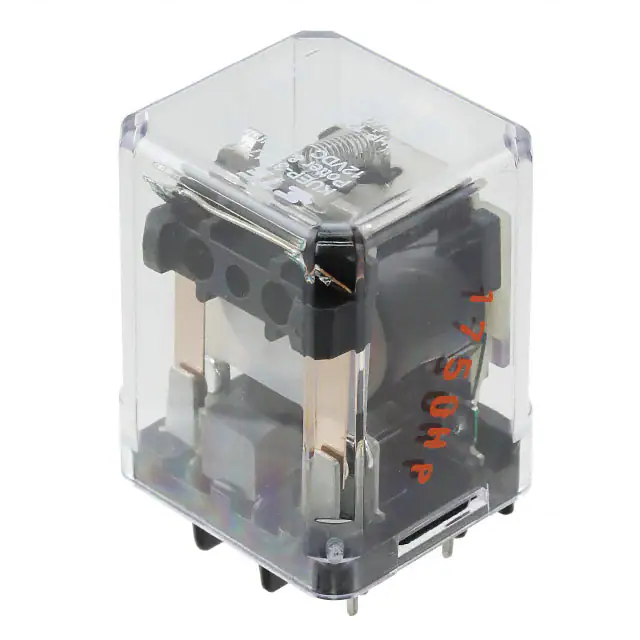

KUEP-3D17-12RELAY GEN PURPOSE SPST 10A 12V |
3,955 | - |
|
Datasheet | KUEP | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 100 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
