Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KHAU-17D12-24RELAY GEN PURPOSE 4PDT 5A 24V |
1,572 | - |
|
Datasheet | KHA | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 37.5 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
K10P-11D15-6RELAY GEN PURPOSE DPDT 15A 6V |
250 | - |
|
Datasheet | K10 | Tray | Active | Socketable | 6VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 4.5 VDC | 0.6 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
K10P-11A15-24RELAY GEN PURPOSE DPDT 15A 24V |
246 | - |
|
Datasheet | K10 | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 52 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | 2.4 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
K10P-11D55-12RELAY GEN PURPOSE DPDT 15A 12V |
134 | - |
|
Datasheet | K10 | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 75 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

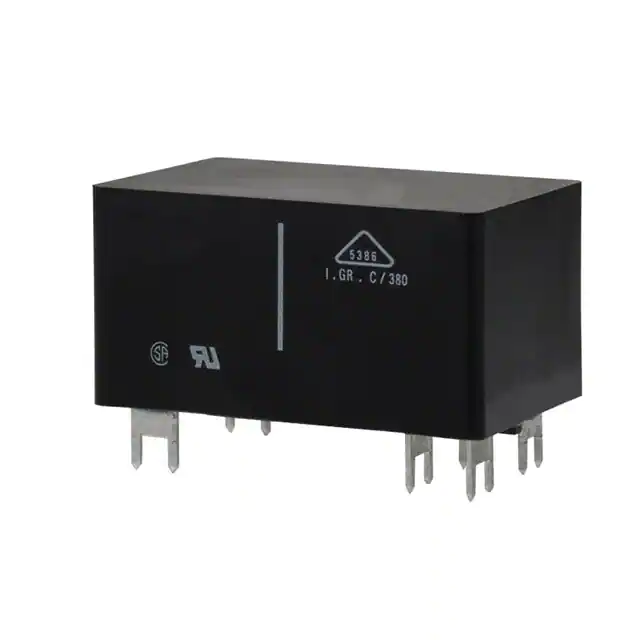

T92P7D12-12RELAY GEN PURPOSE DPST 30A 12V |
1,774 | - |
|
Datasheet | T92 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92S7D22-18RELAY GEN PURPOSE DPST 30A 18V |
1,256 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 18VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 94.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92S7D14-24RELAY GEN PURPOSE DPST 30A 24V |
1,372 | - |
|
Datasheet | T92 | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
K10P-11DT5-12RELAY GEN PURPOSE DPDT 15A 12V |
746 | - |
|
Datasheet | K10 | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | 1.2 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92S7A22-24RELAY GEN PURPOSE DPST 30A 24V |
287 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 19.2 VAC | 2.4 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92P7A22-24RELAY GEN PURPOSE DPST 30A 24V |
4,615 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 19.2 VAC | 2.4 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
