Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

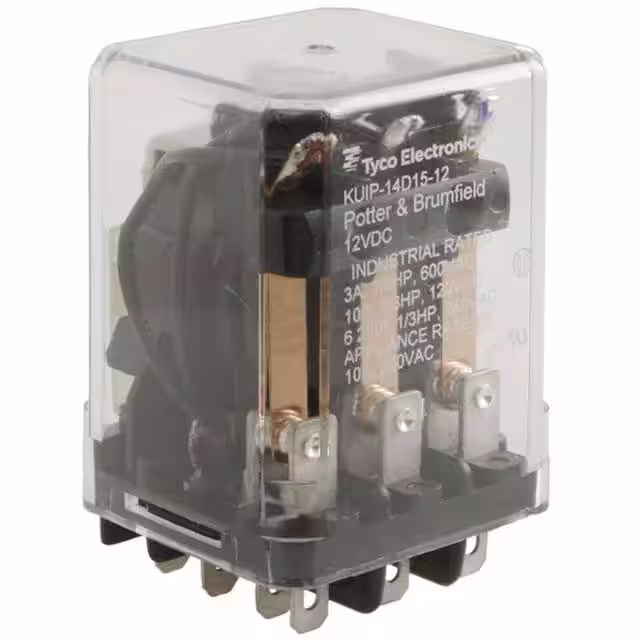

KUIP-14D15-12RELAY GEN PURPOSE 3PDT 10A 12V |
1,733 | - |
|
Datasheet | KUIP | Bulk | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 20 ms | 15 ms | -45°C ~ 95°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

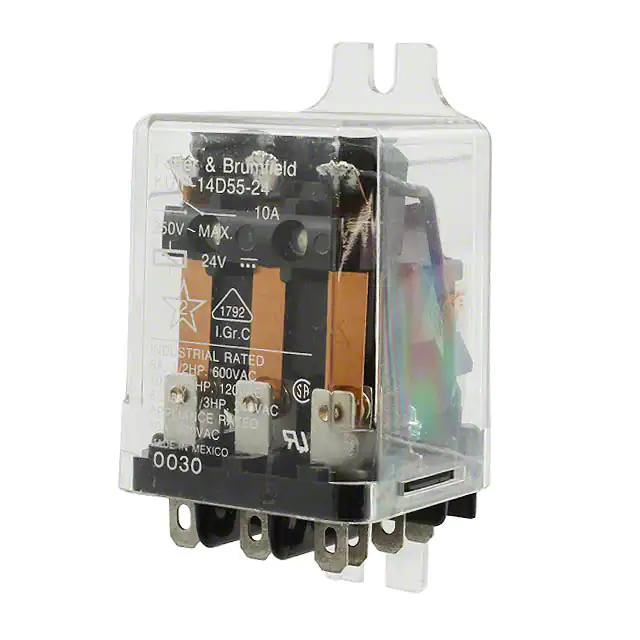

KUIP-14D55-24RELAY GEN PURPOSE 3PDT 10A 24V |
1,692 | - |
|
Datasheet | KUIP | Bulk | Obsolete | Chassis Mount | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 20 ms | 15 ms | -45°C ~ 95°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUIP-14A15-120RELAY GEN PURPOSE 3PDT 10A 120V |
2,258 | - |
|
Datasheet | KUIP | Bulk | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 20 ms | 15 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
OSA-SH-212DM3,000MRELAY GEN PURPOSE DPST 3A 12V |
1,218 | - |
|
Datasheet | OSA, OEG | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 45 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
OSA-SH-224DM3,000MRELAY GEN PURPOSE DPST 3A 24V |
2,313 | - |
|
Datasheet | OSA, OEG | Tube | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
RYA30012RELAY GEN PURPOSE SPST 8A 12V |
2,914 | - |
|
Datasheet | RY, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T90N1D42-24RELAY GEN PURPOSE SPST 30A 24V |
2,631 | - |
|
Datasheet | T90 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 36 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T90N1D12-9RELAY GEN PURPOSE SPST 30A 9V |
3,415 | - |
|
Datasheet | T90 | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 93 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T90N1D12-110RELAY GEN PURPOSE SPST 30A 110V |
4,181 | - |
|
Datasheet | T90 | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 8 mA | Non Latching | - | PC Pin | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RM835012RELAY GEN PURPOSE DPDT 25A 12V |
1,661 | - |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 109 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
