Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T75S5D112-48RELAY GEN PURPOSE SPDT 14A 48V |
3,986 | - |
|
Datasheet | T75 | Tube | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 14 A | 400VAC - Max | 5600VA | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 34.5 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
SRUDH-SS-109D1,000RELAY GEN PURPOSE SPDT 12A 9V |
1,453 | - |
|
Datasheet | SRUDH, OEG | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 2880VA, 336W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T75S1D112-12RELAY GEN PURPOSE SPST 14A 12V |
2,307 | - |
|
Datasheet | T75 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 14 A | 400VAC - Max | 5600VA | 18.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.5 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T75S1D112-05RELAY GEN PURPOSE SPST 14A 5V |
2,178 | - |
|
Datasheet | T75 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 14 A | 400VAC - Max | 5600VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.6 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
SRUDH-SS-112D1,000RELAY GEN PURPOSE SPDT 12A 12V |
2,969 | - |
|
Datasheet | SRUDH, OEG | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 2880VA, 336W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

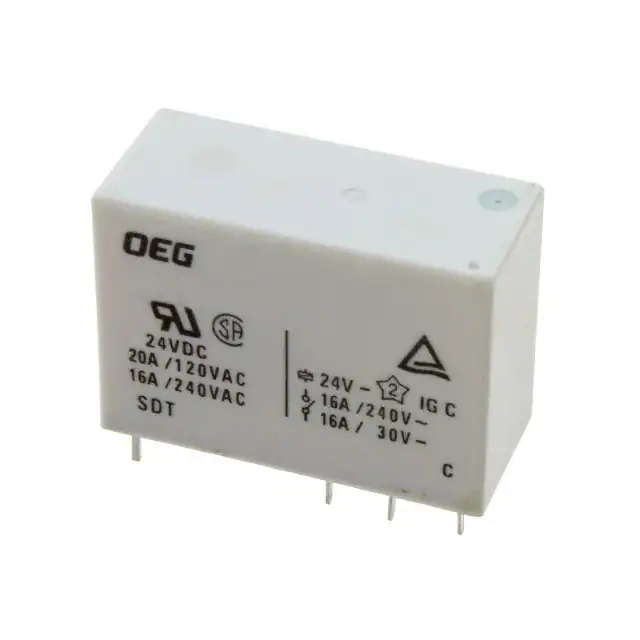

OZ-SH-124D,294RELAY GEN PURPOSE SPDT 16A 24V |
3,313 | - |
|
Datasheet | OZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 29.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.8 VDC | 1.2 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
VF4-15H13RELAY GEN PURPOSE SPDT 40A 24V |
3,078 | - |
|
Datasheet | VF4 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | - | 16.7 mA | Non Latching | - | PC Pin | - | - | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
VF4-15F11-C05RELAY GEN PURPOSE SPDT 40A 12V |
2,395 | - |
|
Datasheet | VF4 | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | - | 16.7 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
VF4-55F11-S01RELAY GEN PURPOSE SPDT 40A 12V |
1,742 | - |
|
Datasheet | VF4 | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | - | 16.7 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1432773-1RELAY GEN PURPOSE SPDT 30A 24V |
1,033 | - |
|
Datasheet | VF4 | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 76 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 15.6 VDC | 2.4 VDC | 10 ms | 13 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
