Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

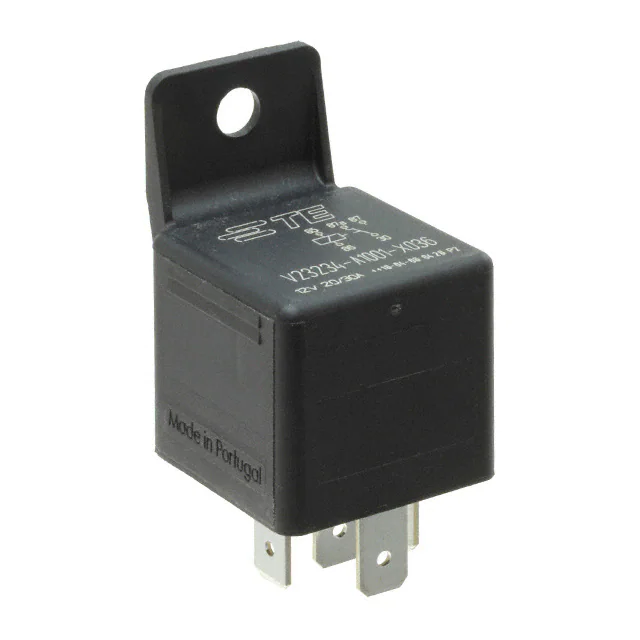

3-1904022-2RELAY GEN PURPOSE SPDT 30A 12V |
2,779 | - |
|
Datasheet | V23234, AXICOM | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | - | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
ORWH-SS-112DM1F,000RELAY GEN PURPOSE SPST 10A 12V |
1,617 | - |
|
Datasheet | ORWH, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 70°C | Silver Zinc Oxide (AgZnO) | General Purpose | - | - |
|
|
3-1393224-9RY210032 |
2,749 | - |
|
Datasheet | RY, SCHRACK | Bulk | Obsolete | Through Hole | 32VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 22.4 VDC | 3.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1-1393225-1RELAY GEN PURPOSE SPDT 8A 15V |
3,897 | - |
|
Datasheet | RY, SCHRACK | Tube | Obsolete | Through Hole | 15VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | - | - | - | - | 9 ms | 5 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
1393224-3RYA30009 |
2,235 | - |
|
Datasheet | RY, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1393224-5RYA30019 |
2,487 | - |
|
Datasheet | RY, SCHRACK | Tube | Obsolete | Through Hole | 19VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Fully | - | 13.3 VDC | 1.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
2-1393224-3RYA50005 |
4,732 | - |
|
Datasheet | RY, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
9-1393224-1RY550005 |
3,197 | - |
|
Datasheet | RY, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
9-1393224-3RY550009 |
4,790 | - |
|
Datasheet | RY, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
9-1393224-7RY550048 |
1,359 | - |
|
Datasheet | RY, SCHRACK | Tube | Obsolete | Through Hole | 48VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 5.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 9 ms | 5 ms | -40°C ~ 70°C | - | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
