Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB134005RELAY GEN PURPOSE SPST 10A 5V |
4,041 | - |
|
Datasheet | PB, SCHRACK | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 71.4 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
PB134024RELAY GEN PURPOSE SPST 10A 24V |
632 | - |
|
Datasheet | PB, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 15 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 10 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

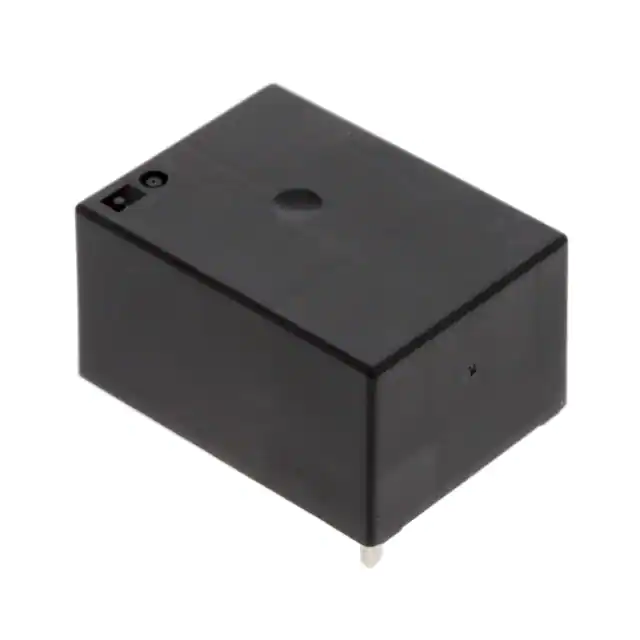

T9GV2L14-5RELAY GEN PURPOSE SPST 20A 5V |
5,557 | - |
|
Datasheet | T9G | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 180 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.75 VDC | 0.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
T9GS2L14-5RELAY GEN PURPOSE SPST 20A 5V |
5,793 | - |
|
Datasheet | T9G | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 180 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
T9GV1L24-15RELAY GEN PURPOSE SPST 30A 15V |
4,736 | - |
|
Datasheet | T9G | Bulk | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 60 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 11.25 VDC | 1.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
2-1415899-4RELAY GEN PURPOSE SPDT 16A 48V |
1,491 | - |
|
Datasheet | RZ, SCHRACK | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 8.4 mA | Non Latching | - | PC Pin | - | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

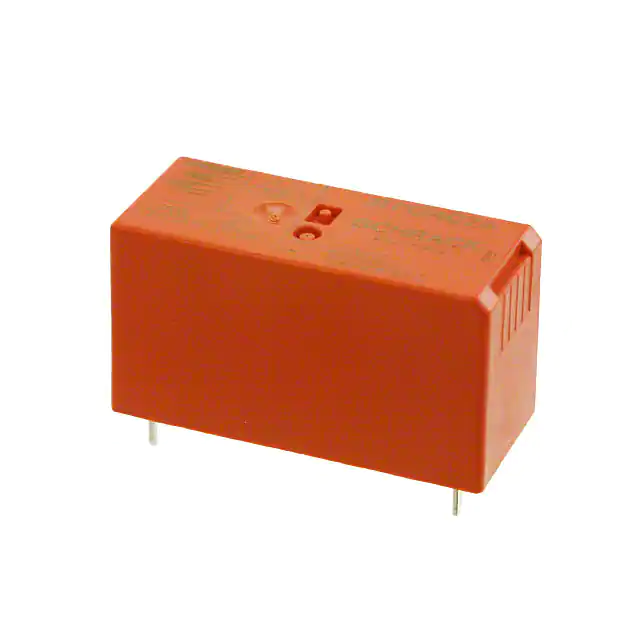

RT134024RELAY GEN PURPOSE SPST 12A 24V |
615 | - |
|
Datasheet | RT1, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RZ03-1A4-D009RELAY GEN PURPOSE SPST 16A 9V |
927 | - |
|
Datasheet | RZ, SCHRACK | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 44.4 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
PB114006RELAY GEN PURPOSE SPDT 10A 6V |
1,745 | - |
|
Datasheet | PB, SCHRACK | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 60 mA | Non Latching | - | PC Pin | - | Class F | 4.5 VDC | 0.6 VDC | 10 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
T9GS5L14-9RELAY GEN PURPOSE SPDT 20A 9V |
5,849 | - |
|
Datasheet | T9G | Bulk | Active | Through Hole | 9VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
