Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT570730RELAY GEN PURPOSE 4PDT 6A 230V |
174 | - |
|
Datasheet | PT, SCHRACK | Bulk | Active | Socketable | 230VAC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 11.8 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 184 VAC | 69 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

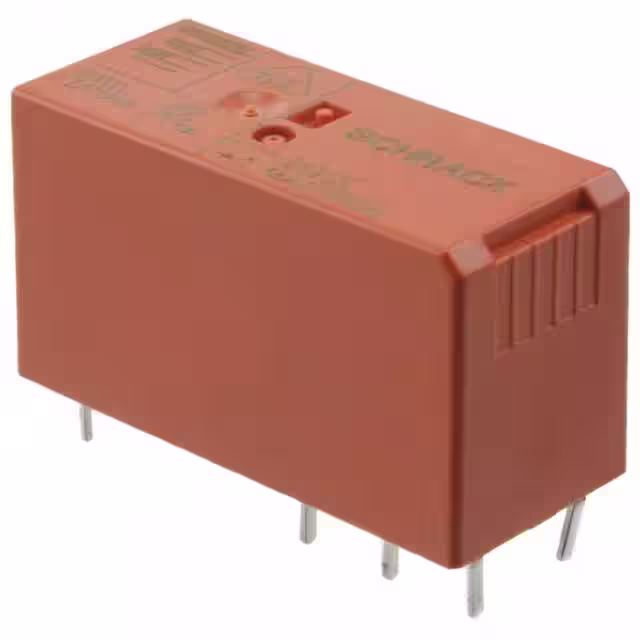

RT315024RELAY GEN PURPOSE SPDT 16A 24V |
1,440 | - |
|
Datasheet | RT1, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

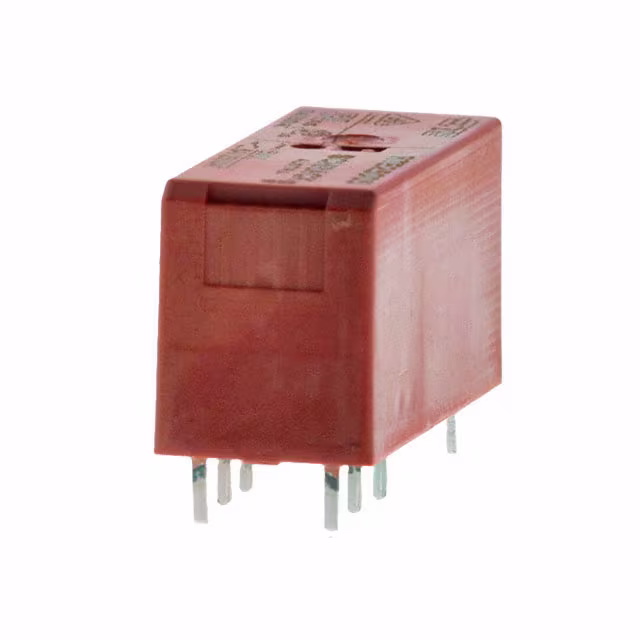

RTE25005RELAY GEN PURPOSE DPDT 8A 5V |
2,998 | - |
|
Datasheet | RT2, SCHRACK | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 80.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RT4S4R24RELAY GEN PURPOSE DPDT 8A 24V |
392 | - |
|
Datasheet | RT, SCHRACK | Tube | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 31.6 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | Class F | 18 VAC | 3.6 VAC | - | - | -20°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RP821048RELAY GEN PURPOSE DPDT 8A 48V |
796 | - |
|
Datasheet | RP II/2, SCHRACK | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 10.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 9 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RP3SL005RELAY GEN PURPOSE SPST 16A 5V |
418 | - |
|
Datasheet | RP3SL, SCHRACK | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 92.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.75 VDC | 0.5 VDC | 14 ms | 12 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

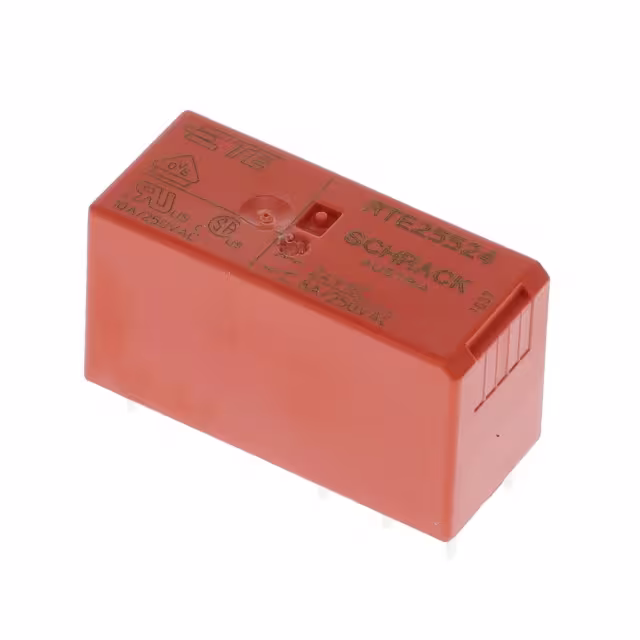

2-1393243-4RELAY GEN PURPOSE DPDT 8A 24V |
5,206 | - |
|
Datasheet | RT2, SCHRACK | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 68.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VAC | 3.6 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
RP421012RELAY GEN PURPOSE DPDT 8A 12V |
655 | - |
|
Datasheet | RP II/2, SCHRACK | Box | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 9 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1-1393204-4RELAY GEN PURPOSE SPDT 7A 6V |
299 | - |
|
Datasheet | V23148, SCHRACK | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 7 A | 400VAC - Max | 2800VA | 181.8 mA | Latching, Single Coil | - | PC Pin | - | - | 14.7 VDC | 1.5 VDC | 5 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

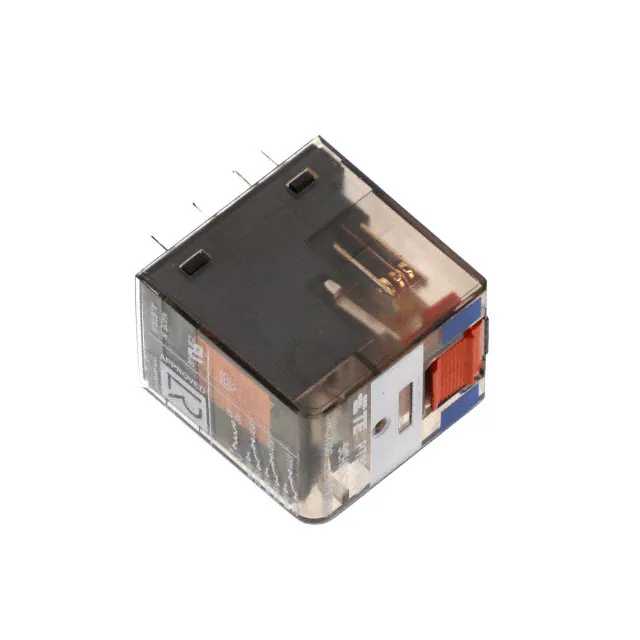

9-1415536-4RELAY GEN PURPOSE 3PDT 10A 24V |
239 | - |
|
Datasheet | PT, SCHRACK | Bulk | Active | Through Hole | 24VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 30.8 mA | Non Latching | Test Button | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
