Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1393845-4RELAY GEN PURPOSE DPDT 8A 24V |
480 | - |
|
Datasheet | RP II/2, SCHRACK | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 9 ms | 3 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
RTX3-1AT-C012RELAY GEN PURPOSE SPST 16A 12V |
689 | - |
|
Datasheet | RTX, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 79 mA | Latching, Dual Coil | - | PC Pin | - | Class F | 9 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | General Purpose | - | - |
|
9-1393243-3RELAY GEN PURPOSE DPDT 8A 230V |
937 | - |
|
Datasheet | RT2, SCHRACK | Tube | Active | Through Hole | 230VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 3.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
6-1393236-9RELAY GEN PURPOSE SPDT 6A 12V |
968 | - |
|
Datasheet | SNR, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RTX3-1AT-B048RELAY GEN PURPOSE SPST 16A 48V |
384 | - |
|
Datasheet | RTX, SCHRACK | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 13.5 mA | Latching, Single Coil | - | PC Pin | - | Class F | 36 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | General Purpose | - | - |
|

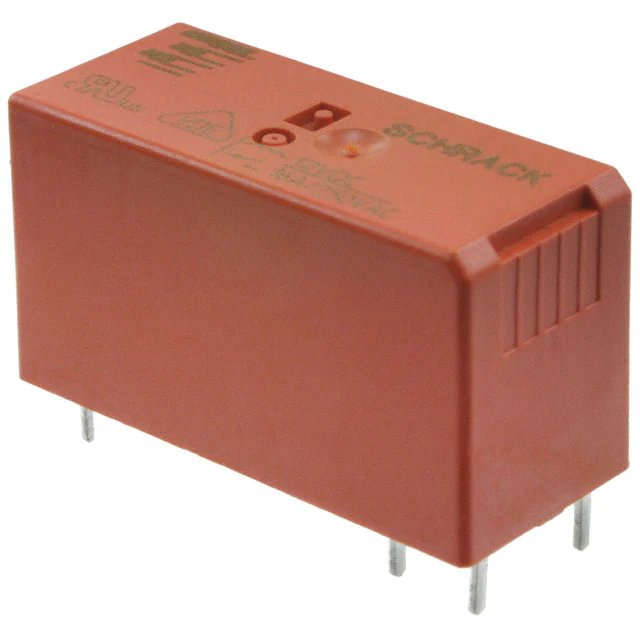

RTX3-1AT-B012RELAY GEN PURPOSE SPST 16A 12V |
101 | - |
|
Datasheet | RTX, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 54 mA | Latching, Single Coil | - | PC Pin | - | Class F | 9 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | General Purpose | - | - |
|
KHAU-17A12-24RELAY GEN PURPOSE 4PDT 5A 24V |
107 | - |
|
Datasheet | KHA | Tray | Active | Socketable | 24VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 52 mA | Non Latching | - | Plug In | - | Class B | 20.4 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
V23148-B0008-A101RELAY GEN PURPOSE SPDT 7A 48V |
2,286 | - |
|
Datasheet | V23148, SCHRACK | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 7 A | 400VAC - Max | 2800VA | 16.7 mA | Latching, Single Coil | - | PC Pin | - | - | 37.4 VDC | - | 5 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
V23148-B0005-A101RELAY GEN PURPOSE SPDT 7A 12V |
242 | - |
|
Datasheet | V23148, SCHRACK | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 7 A | 400VAC - Max | 2800VA | 16.7 mA | Latching, Single Coil | - | PC Pin | - | - | 9.4 VDC | - | 5 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T92S7D12-18RELAY GEN PURPOSE DPST 30A 18V |
235 | - |
|
Datasheet | T92 | Bulk | Active | Through Hole | 18VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 94.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
