Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G5PA-2 DC5RELAY GEN PURPOSE DPST 5A 5V |
1,995 | - |
|
Datasheet | G5PA-2 | Bulk | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.25 VDC | 15 ms | 5 ms | -25°C ~ 70°C | - | General Purpose | - | - |
|
|
G5PA-2 DC9 BY OMZ (PF)RELAY GEN PURPOSE DPST 5A 9V |
2,232 | - |
|
Datasheet | G5PA-2 | Bulk | Obsolete | Through Hole | 9VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 58.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.45 VDC | 15 ms | 5 ms | -25°C ~ 70°C | - | General Purpose | - | - |
|

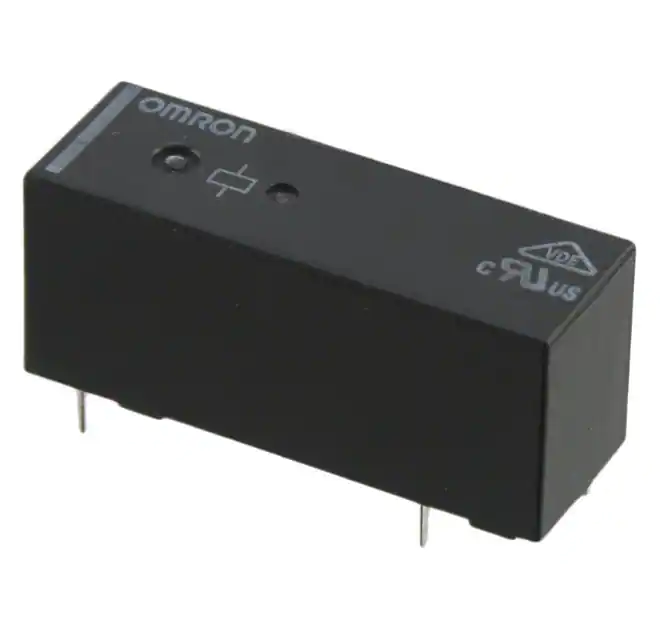

G6RL-1A4-ASI DC6RELAY GEN PURPOSE SPST 10A 6V |
4,381 | - |
|
Datasheet | G6RL | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 36.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
G5LE-1-ACD-DC12RELAY GEN PURPOSE SPDT 10A 12V |
4,628 | - |
|
Datasheet | G5LE | Tray | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
G5LE-1-ACD-DC24RELAY GEN PURPOSE SPDT 10A 24V |
1,274 | - |
|
Datasheet | G5LE | Tray | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
G8P-1C4-X-DC12RELAY GEN PURPOSE SPDT 10A 12V |
4,356 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G8P-1C4-X-DC24RELAY GEN PURPOSE SPDT 10A 24V |
2,489 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G5PA-2DC24BYOMZ(PF)RELAY GEN PURPOSE DPST 5A 24V |
4,357 | - |
|
Datasheet | G5PA-2 | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -25°C ~ 70°C | - | General Purpose | - | - |
|

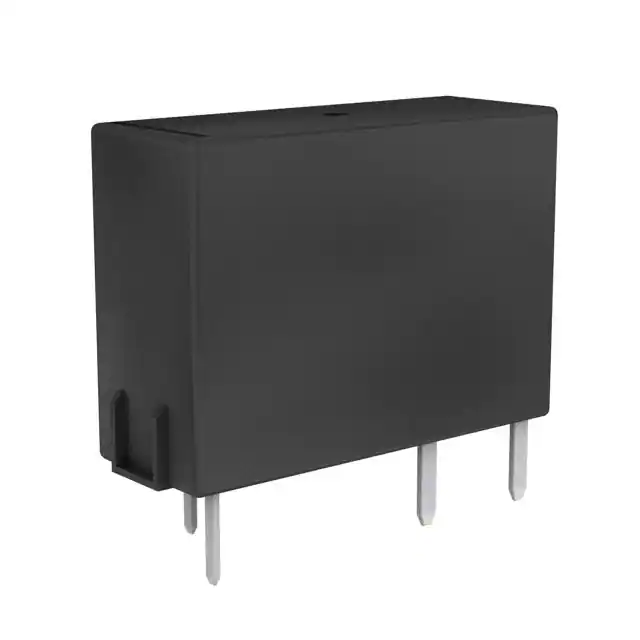

G6D-1A-DC24RELAY GEN PURPOSE SPST 5A 24V |
4,244 | - |
|
Datasheet | G6D | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G5RL-1A DC24 BY OMZRELAY GEN PURPOSE SPST 12A 24V |
2,548 | - |
|
Datasheet | G5RL | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 250VAC, 24VDC - Max | 3000VA, 288W | 16.7 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
