Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6B-47BND DC12RELAY GEN PURPOSE SPST 5A 12V |
2,724 | - |
|
Datasheet | G6B-4 | Bulk | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) x 4 | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 19.1 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 1.2 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|
|
G6B-4CB DC12RELAY GEN PURPOSE 4PDT 5A 12V |
3,032 | - |
|
Datasheet | G6B-4 | Bulk | Active | DIN Rail | 12VDC | 4PDT (4 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 25 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 1.2 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|

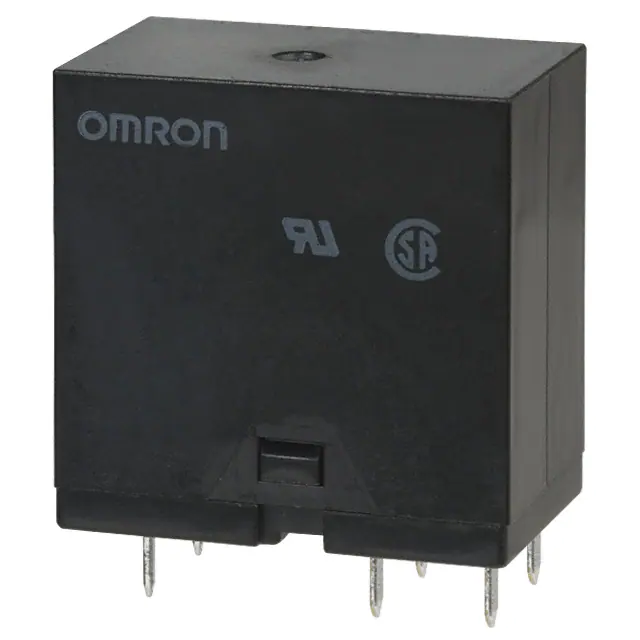

G4W-2212P-VD-TV5-HP-DC12RELAY GEN PURPOSE DPST 10A 12V |
4,342 | - |
|
Datasheet | G4W | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 10 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 66.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
G4B-112T1-C-US-AC24RELAY GEN PURPOSE SPDT 15A 24V |
1,293 | - |
|
Datasheet | G4B | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 54 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G4B-112T1-C-US AC120RELAY GEN PURPOSE SPDT 15A 120V |
4,438 | - |
|
Datasheet | G4B | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 10.8 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
G7P-2-DC24RELAY GEN PURPOSE DPDT 10A 24V |
2,893 | - |
|
Datasheet | G7P | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | - | - | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
G8P-1AP DC12RELAY GEN PURPOSE SPST 30A 12V |
2,663 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 77 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1AP DC24RELAY GEN PURPOSE SPST 30A 24V |
3,114 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 36 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1AP DC5RELAY GEN PURPOSE SPST 30A 5V |
2,584 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 185 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G8P-1A4P DC12RELAY GEN PURPOSE SPST 30A 12V |
2,577 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
