Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-14-H-DC6RELAY GEN PURPOSE SPDT 5A 6V |
4,248 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 6VDC | SPDT (1 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-14-T130 DC16RELAY GEN PURPOSE SPDT 8A 16V |
1,121 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 16VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 33.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 11.2 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-14-T130 DC22RELAY GEN PURPOSE SPDT 8A 22V |
3,862 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 22VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 24.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 15.4 VDC | 3.3 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
G2R-1A4 AC100/(110)RELAY GEN PURPOSE SPST 8A 110V |
2,948 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 110VAC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 88 VAC | 33 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

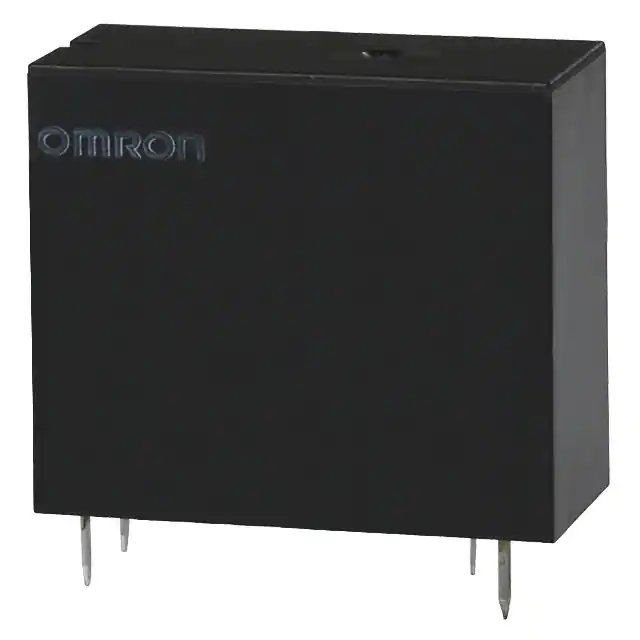

G2R-1A4-AC220RELAY GEN PURPOSE SPST 8A 220V |
2,155 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 220VAC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 4.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 176 VAC | 66 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-1A4 DC18RELAY GEN PURPOSE SPST 8A 18V |
4,931 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 29.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 12.6 VDC | 2.7 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
G2R-1A AC100/(110)RELAY GEN PURPOSE SPST 10A 110V |
1,192 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 110VAC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 10.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 88 VAC | 33 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-1A-AC110RELAY GEN PURPOSE SPST 10A 110V |
2,167 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 110VAC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 10.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 88 VAC | 33 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-1A-AP-DC12RELAY GEN PURPOSE SPST 10A 12V |
2,258 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-1A-ASI AC120RELAY GEN PURPOSE SPST 10A 120V |
3,790 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 120VAC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
