Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-1A-TUB-J-CB AC100/120RELAY GEN PURPOSE SPST 30A 120V |
258 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 20.4 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G7L-2A-BUBJ-CB-IN DC24RELAY GEN PURPOSE DPST 25A 24V |
4,782 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|

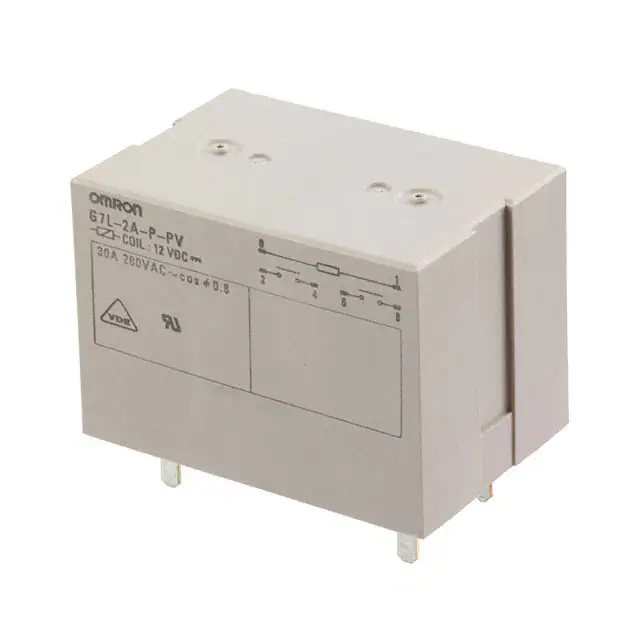

G7L-2A-P-PV-DC12RELAY GEN PURPOSE DPST 30A 12V |
255 | - |
|
Datasheet | G7L-PV | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 280VAC - Max | 8400VA | 192 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 30 ms | 30 ms | -25°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G7L-1A-BUBJ-CB DC24RELAY GEN PURPOSE SPST 30A 24V |
130 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 79 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-14 AC240RELAY GEN PURPOSE SPDT 8A 240V |
472 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 240VAC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 3.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 192 VAC | 72 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
G9KB-1A DC24RELAY GEN PURPOSE SPST 50A 24V |
284 | - |
|
Datasheet | G9KB | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 600VDC - Max | 30000W | 116.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G9KB-1A-E DC24RELAY GEN PURPOSE SPST 100A 24V |
2,524 | - |
|
Datasheet | G9KB | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 100 A | 60000W | - | 116.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G7L-2A-X-L DC24RELAY GEN PURPOSE DPST 20A 24V |
194 | - |
|
Datasheet | G7L-X | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 20 A | 1000VDC - Max | 20000W | 95.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G9KA-1A-E DC12RELAY GEN PURPOSE SPST 300A 12V |
540 | - |
|
Datasheet | G9KA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 300 A | 1000VAC - Max | 300000VA | 417 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G9EA-1-B DC48RELAY GEN PURPOSE SPST 60A 48V |
1,356 | - |
|
Datasheet | G9EA-1 | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Max | 24000W | 102 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 36 VDC | 3.84 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
