Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6CU-2114P-US DC5RELAY GEN PURPOSE DPST 8A 5V |
3,633 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G4W-1112P-VD-TV8-HP DC24RELAY GEN PURPOSE SPST 15A 24V |
3,082 | - |
|
Datasheet | G4W | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 33.3 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
G6B-2114P-FD-US DC12RELAY GEN PURPOSE DPST 5A 12V |
2,362 | - |
|
Datasheet | G6B | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
|
G7L-2A-T-CB DC12RELAY GEN PURPOSE DPST 25A 12V |
4,599 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 158 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G2RK-2 DC5RELAY GEN PURPOSE DPDT 3A 5V |
4,350 | - |
|
Datasheet | G2R | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 3 A | 380VAC, 125VDC - Max | 1140VA, 375W | 167 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G6CK-2114P-US DC12RELAY GEN PURPOSE DPST 8A 12V |
2,102 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 23.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G7L-1A-B-CB DC48RELAY GEN PURPOSE SPST 30A 48V |
4,361 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 40 mA | Non Latching | - | Screw Terminal | - | Class B | 36 VDC | 7.2 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-2 AC110RELAY GEN PURPOSE DPDT 5A 110V |
1,032 | - |
|
Datasheet | G2R | Tray | Active | Through Hole | 110VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 10.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 88 VAC | 33 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

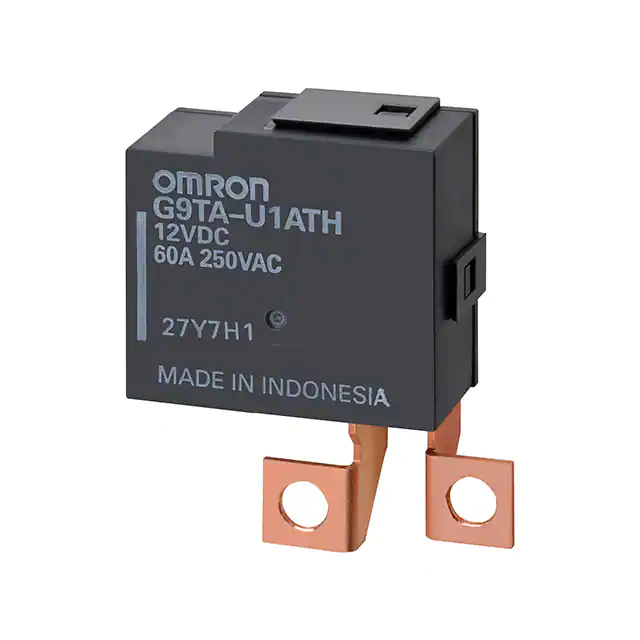

G9TA-U1ATH DC12RELAY GEN PURPOSE SPST 60A 12V |
3,993 | - |
|
Datasheet | G9TA | Tray | Active | Free Hanging | 12VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 15000VA | 83 mA | Latching, Single Coil | - | Square Lug | Sealed - Flux Protection | - | 9.6 VDC | - | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G7L-1A-TUB-CB DC12RELAY GEN PURPOSE SPST 30A 12V |
4,218 | - |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 158 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
