Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JE1XN-DC24V-HRELAY GEN PURPOSE SPDT 5A 24V |
4,234 | - |
|
Datasheet | JE-X | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
JK1A-12VRELAY GEN PURPOSE SPST 3A 12V |
4,207 | - |
|
Datasheet | JK | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 110VDC - Max | 750VA, 330W | 17 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 0.6 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
JK1A-12V-TVRELAY GEN PURPOSE SPST 3A 12V |
3,333 | - |
|
Datasheet | JK | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 110VDC - Max | 750VA, 330W | 17 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 0.6 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
JK1A-18VRELAY GEN PURPOSE SPST 3A 18V |
3,044 | - |
|
Datasheet | JK | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 110VDC - Max | 750VA, 330W | 11 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 14.4 VDC | 0.9 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
JK1A-24VRELAY GEN PURPOSE SPST 3A 24V |
4,223 | - |
|
Datasheet | JK | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 110VDC - Max | 750VA, 330W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 1.2 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
JK1A-24V-TVRELAY GEN PURPOSE SPST 3A 24V |
2,981 | - |
|
Datasheet | JK | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 110VDC - Max | 750VA, 330W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 1.2 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
JK1A-5VRELAY GEN PURPOSE SPST 3A 5V |
1,240 | - |
|
Datasheet | JK | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 110VDC - Max | 750VA, 330W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.25 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

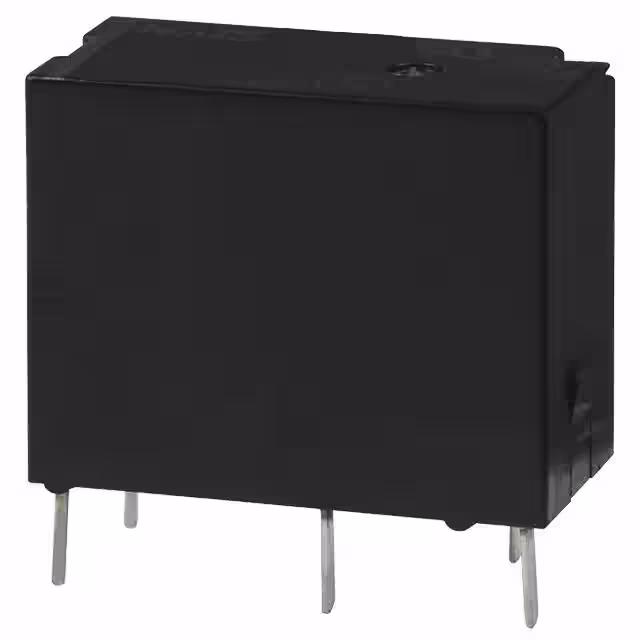

JK1AF-12VRELAY GEN PURPOSE SPST 3A 12V |
4,255 | - |
|
Datasheet | JK | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 110VDC - Max | 750VA, 330W | 17 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | 0.6 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
JM1AN-P-DC12VRELAY GEN PURPOSE SPST 20A 12V |
4,556 | - |
|
Datasheet | JM | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 75 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
JM1AN-P-DC24VRELAY GEN PURPOSE SPST 20A 24V |
1,014 | - |
|
Datasheet | JM | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 37.5 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
