Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JC2AF-DC5V-FRELAY GEN PURPOSE DPST 10A 5V |
1,824 | - |
|
Datasheet | JC | Tray | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 200 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JC2AF-DC6V-FRELAY GEN PURPOSE DPST 10A 6V |
3,680 | - |
|
Datasheet | JC | Tray | Obsolete | Through Hole | 6VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 167 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

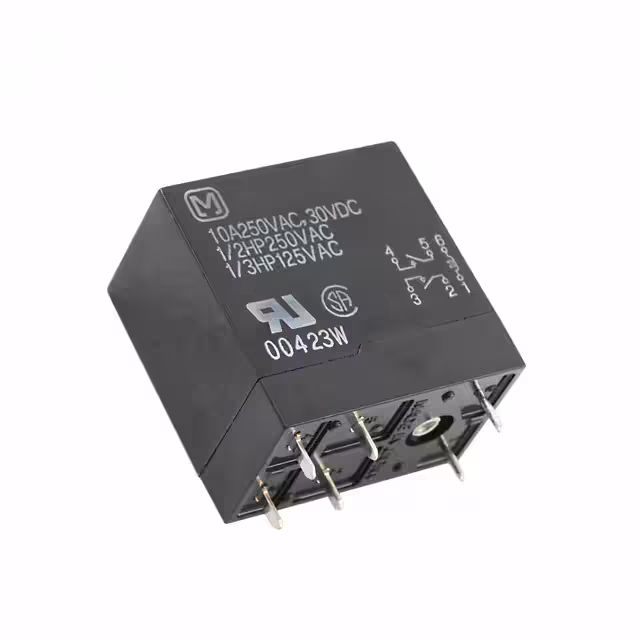

JC2AF-DC12V-FRELAY GEN PURPOSE DPST 10A 12V |
3,927 | - |
|
Datasheet | JC | Tray | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 83.3 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JC2AF-DC24V-FRELAY GEN PURPOSE DPST 10A 24V |
3,598 | - |
|
Datasheet | JC | Tray | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 41.6 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

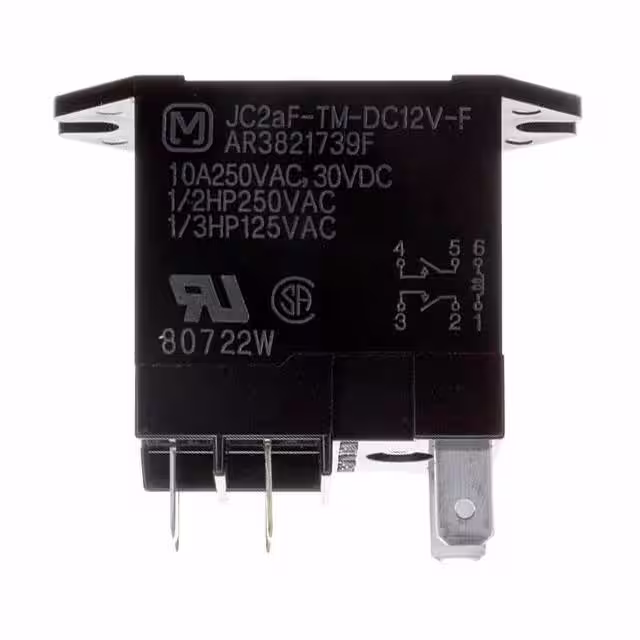

JC2AF-TM-DC12V-FRELAY GEN PURPOSE DPST 10A 12V |
1,209 | - |
|
Datasheet | JC | Tray | Obsolete | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 83.3 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

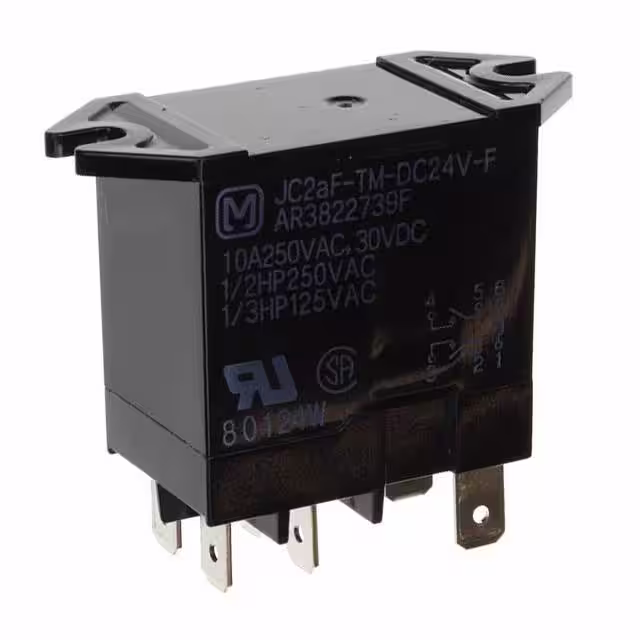

JC2AF-TM-DC24V-FRELAY GEN PURPOSE DPST 10A 24V |
2,251 | - |
|
Datasheet | JC | Tray | Obsolete | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 41.6 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JK1AP-12V-FRELAY GEN PURPOSE SPST 8A 12V |
1,847 | - |
|
Datasheet | JK | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 110VDC - Max | 2000VA, 880W | 17 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 0.6 VDC | 4 ms | 2 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

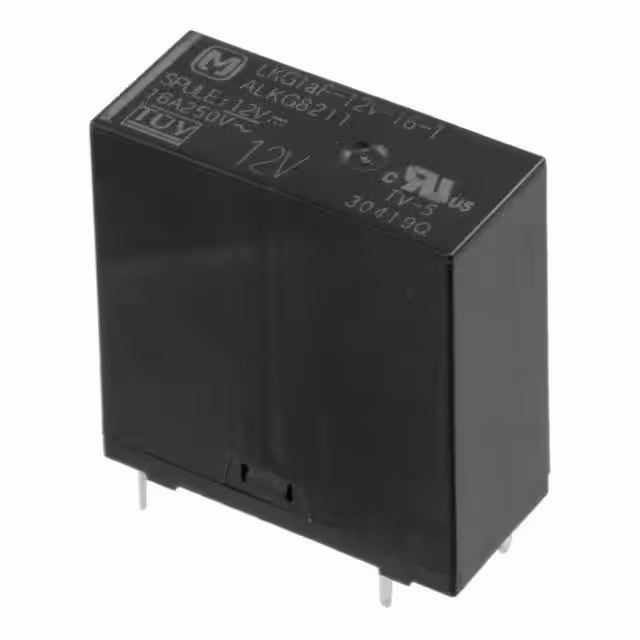

LKG1AF-12V-16-1RELAY GEN PURPOSE SPST 16A 12V |
2,414 | - |
|
Datasheet | LK-G | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 44.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
LKG1AF-24V-16-1RELAY GEN PURPOSE SPST 16A 24V |
1,527 | - |
|
Datasheet | LK-G | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
HL2-HP-DC12V-FRELAY GEN PURPOSE DPDT 10A 12V |
3,395 | - |
|
Datasheet | HL | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | - | 75 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
