Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS1A-48V-FRELAY GEN PURPOSE SPST 10A 48V |
1,748 | - |
|
Datasheet | JS | Tray | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 33.6 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ALE7PB05RELAY GEN PURPOSE SPST 16A 5V |
1,623 | - |
|
Datasheet | ALE | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 40 mA | Non Latching | - | PC Pin | - | Class B | 3.75 VDC | 0.25 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AHN12024RELAY GEN PURPOSE SPDT 16A 24V |
4,548 | - |
|
Datasheet | AHN | Tube | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 22 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

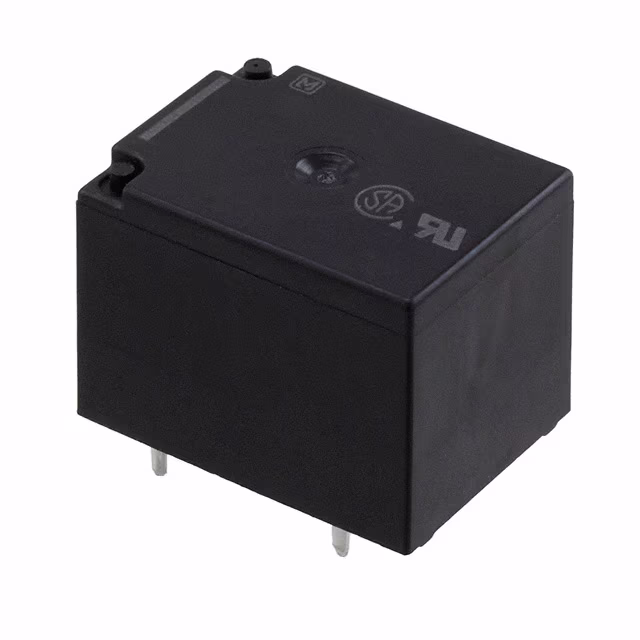

JS1F-F-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
4,871 | - |
|
Datasheet | JS | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JS1F-B-12V-FRELAY GEN PURPOSE SPDT 10A 12V |
3,438 | - |
|
Datasheet | JS | Tray | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

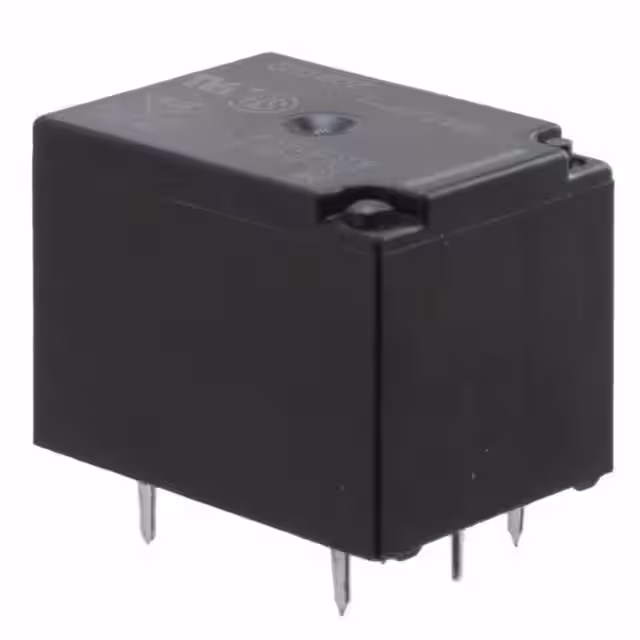

JS1-B-6V-FRELAY GEN PURPOSE SPDT 10A 6V |
1,581 | - |
|
Datasheet | JS | Tray | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JS1F-12V-FRELAY GEN PURPOSE SPDT 10A 12V |
4,704 | - |
|
Datasheet | JS | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JS1F-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
2,394 | - |
|
Datasheet | JS | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JS1F-48V-FRELAY GEN PURPOSE SPDT 10A 48V |
4,858 | - |
|
Datasheet | JS | Bulk | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 33.6 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JS1F-5V-FRELAY GEN PURPOSE SPDT 10A 5V |
4,109 | - |
|
Datasheet | JS | Tray | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 72 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
