Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALFG1PF18RELAY GEN PURPOSE SPST 22A 18V |
4,597 | - |
|
Datasheet | ALFG | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 22 A | 250VAC - Max | 5500VA | 78 mA | Non Latching | - | PC Pin | - | Class F | 12.6 VDC | 1.8 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

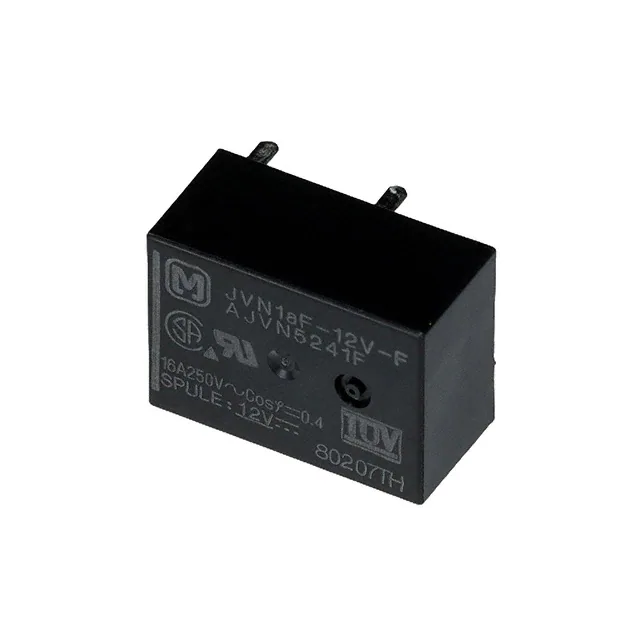

JVN1AF-12V-FRELAY GEN PURPOSE SPST 16A 12V |
4,368 | - |
|
Datasheet | JV-N | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
DE2A-L2-5VRELAY GEN PURPOSE DPST 8A 5V |
2,366 | - |
|
Datasheet | DE | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 40 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.5 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
NC2EBD-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
4,707 | - |
|
Datasheet | NC | Tube | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | Plug In | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
HE2AN-S-DC24VRELAY GEN PURPOSE DPST 25A 24V |
4,150 | - |
|
Datasheet | HE | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 80 mA | Non Latching | - | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

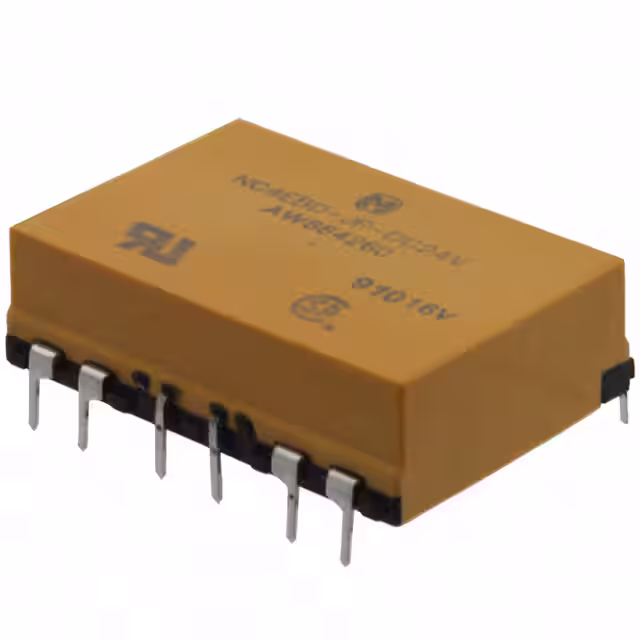

NC4EBD-JP-DC24VRELAY GEN PURPOSE 4PDT 5A 24V |
1,603 | - |
|
Datasheet | NC | Tube | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
AHES4292RELAY GEN PURPOSE 3PST 35A 24V |
1,637 | - |
|
Datasheet | HE-S | Tray | Active | Through Hole | 24VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 35 A | 277VAC - Nom | - | 78 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
SP2-L2-DC24VRELAY GEN PURPOSE DPDT 15A 24V |
1,953 | - |
|
Datasheet | SP | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 12.5 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
SP2-PL2-DC24VRELAY GEN PURPOSE DPDT 15A 24V |
2,252 | - |
|
Datasheet | SP | Box | Active | Through Hole | 24VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 12.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 16.8 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
SP4-L2-DC24VRELAY GEN PURPOSE 4PDT 10A 24V |
4,651 | - |
|
Datasheet | SP | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 12.5 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
