Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALFG1PF091RELAY GEN PURPOSE SPST 22A 9V |
2,805 | - |
|
Datasheet | ALFG | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 22 A | 250VAC - Max | 5500VA | 155 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADW1209WRELAY GEN PURPOSE SPST 8A 9V |
1,019 | - |
|
Datasheet | DW | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 44.4 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

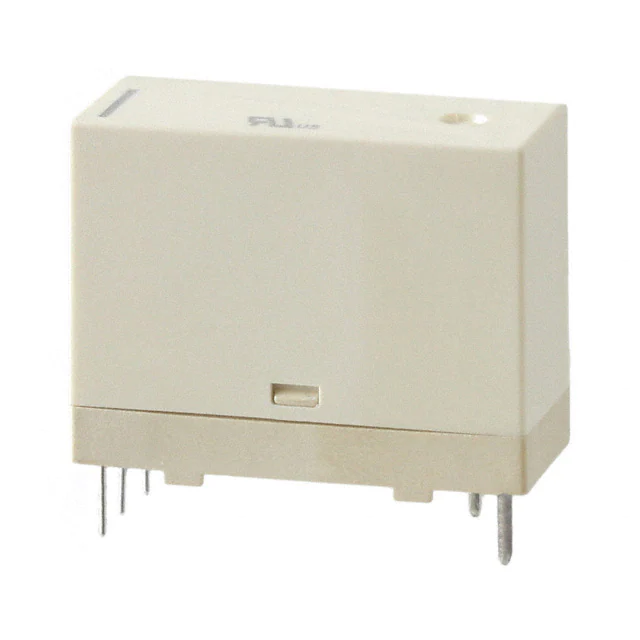

ADW1112WRELAY GEN PURPOSE SPST 8A 12V |
2,045 | - |
|
Datasheet | DW | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADW1112TWRELAY GEN PURPOSE SPST 8A 12V |
2,405 | - |
|
Datasheet | DW | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 16.7 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADY10003RELAY GEN PURPOSE SPST 10A 3V |
1,413 | - |
|
Datasheet | ADY | Box | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 66.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 8 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADW1106TWRELAY GEN PURPOSE SPST 8A 6V |
100 | - |
|
Datasheet | DW | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 33.3 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADW1103TWRELAY GEN PURPOSE SPST 8A 3V |
1,865 | - |
|
Datasheet | DW | Tray | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 66.7 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 2.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADW1105TWRELAY GEN PURPOSE SPST 8A 5V |
3,671 | - |
|
Datasheet | DW | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 40 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADJH22105RELAY GEN PURPOSE SPST 50A 5V |
1,613 | - |
|
Datasheet | ADJH | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 200 mA | Latching, Single Coil | Test Button | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADJH22012RELAY GEN PURPOSE SPST 50A 12V |
3,513 | - |
|
Datasheet | ADJH | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 83.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
