Power Relays, Over 2 Amps

Browse available Power Relays, Over 2 Amps part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Mounting Type	Coil Voltage	Contact Form	Contact Rating (Current)	Switching Voltage	Load - Max Switching	Coil Current	Coil Type	Features	Termination Style	Seal Rating	Coil Insulation	Must Operate Voltage	Must Release Voltage	Operate Time	Release Time	Operating Temperature	Contact Material	Relay Type	Grade	Qualification

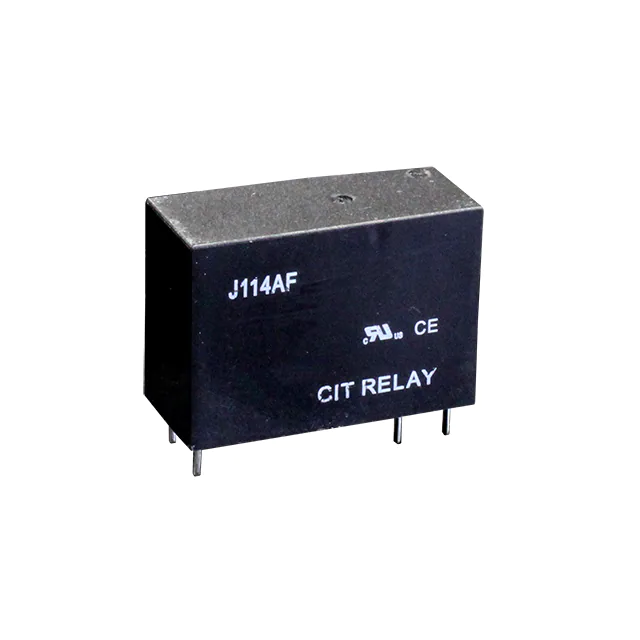

J114AF1AS24VDC.53 RELAY GEN PURPOSE SPST 16A 24V CIT Relay and Switch	2,195	-	RFQ	Datasheet	J114AF	Tube	Active	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	380VAC, 110VDC - Max	6080VA, 1760W	22.9 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	20 ms	10 ms	-55°C ~ 105°C	Silver Tin Oxide (AgSnO)	General Purpose	-	-

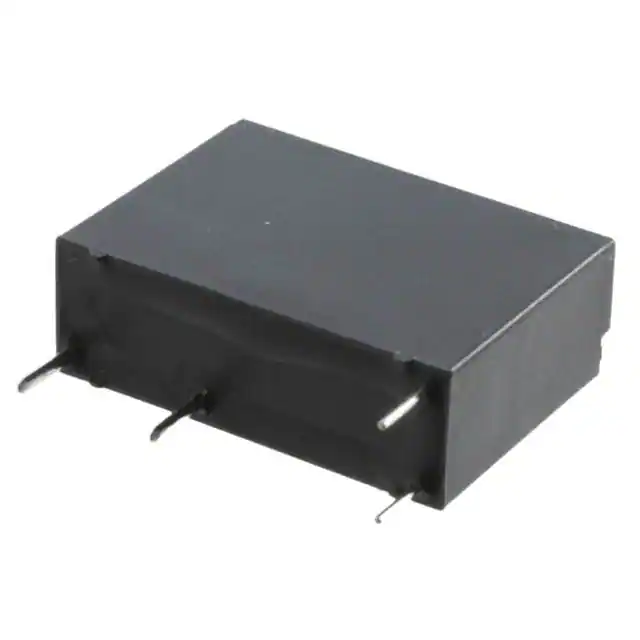

ALDP105W RELAY GEN PURPOSE SPST 5A 5V Panasonic Electric Works	6,697	-	RFQ	Datasheet	ALDP	Box	Active	Through Hole	5VDC	SPST-NO (1 Form A)	5 A	277VAC - Max	1385VA	40 mA	Non Latching	-	PC Pin	-	Class E	3.75 VDC	0.25 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Nickel (AgNi)	General Purpose	-	-

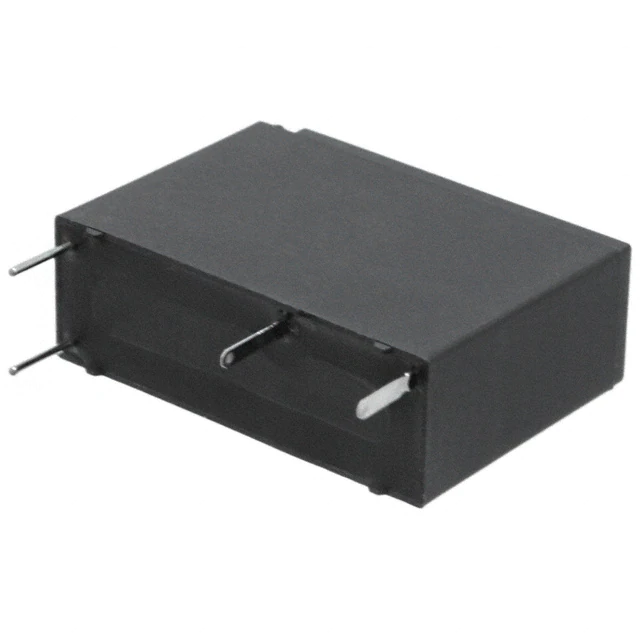

ALDP112W RELAY GEN PURPOSE SPST 5A 12V Panasonic Electric Works	5,264	-	RFQ	Datasheet	ALDP	Box	Active	Through Hole	12VDC	SPST-NO (1 Form A)	5 A	277VAC - Max	1385VA	16.7 mA	Non Latching	-	PC Pin	-	Class E	9 VDC	0.6 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Nickel (AgNi)	General Purpose	-	-
ALDP109W RELAY GEN PURPOSE SPST 5A 9V Panasonic Electric Works	998	-	RFQ	Datasheet	ALDP	Box	Active	Through Hole	9VDC	SPST-NO (1 Form A)	5 A	277VAC - Max	1385VA	22.2 mA	Non Latching	-	PC Pin	-	Class E	6.75 VDC	0.45 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Nickel (AgNi)	General Purpose	-	-
RZ03-1A4-D024 RELAY GEN PURPOSE SPST 16A 24V TE Connectivity Potter & Brumfield Relays	23,510	-	RFQ	Datasheet	RZ, SCHRACK	Tube	Active	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	400VAC - Max	6400VA	16.7 mA	Non Latching	-	PC Pin	-	Class F	16.8 VDC	2.4 VDC	8 ms	6 ms	-40°C ~ 85°C	Silver Nickel (AgNi)	General Purpose	-	-
AZ576-1A-12DE RELAY GEN PURPOSE SPST 20A 12V American Zettler	990	-	RFQ	Datasheet	AZ576	Tray	Active	Through Hole	12VDC	SPST-NO (1 Form A)	20 A	480VAC, 30VDC - Max	5540VA, 510W	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	9 VDC	1.2 VDC	15 ms	8 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)	General Purpose	-	-
G6DN-1A DC24 RELAY GEN PURPOSE SPST 5A 24V Omron Electronics Inc-EMC Div	8,641	-	RFQ	Datasheet	G6DN	Tube	Active	Through Hole	24VDC	SPST-NO (1 Form A)	5 A	277VAC, 125VDC - Max	1385VA, 625W	4.6 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	16.8 VDC	1.2 VDC	10 ms	5 ms	-40°C ~ 90°C	Silver Alloy	General Purpose	-	-
J114AF1AHS24VDC.53 RELAY GEN PURPOSE SPST 16A 24V CIT Relay and Switch	4,561	-	RFQ	Datasheet	J114AF	Tube	Active	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	380VAC, 110VDC - Max	6080VA, 1760W	22.9 mA	Non Latching	Alternate Pinout	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	20 ms	10 ms	-55°C ~ 105°C	Silver Tin Oxide (AgSnO)	General Purpose	-	-

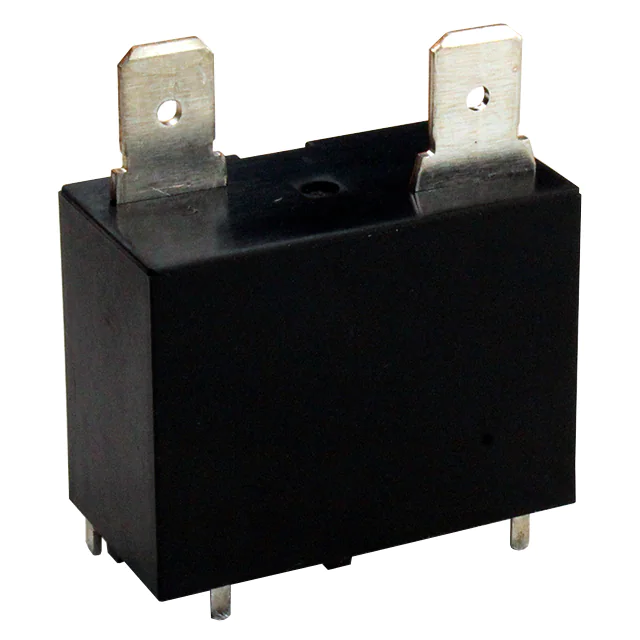

J120D1AS12VDC RELAY GEN PURPOSE SPST 20A 12V CIT Relay and Switch	2,898	-	RFQ	Datasheet	J120D	Tray	Active	Through Hole	12VDC	SPST-NO (1 Form A)	20 A	300VAC - Max	6000VA	75 mA	Non Latching	-	PC Pin, Quick Connect - 0.250" (6.3mm)	Sealed - Fully	-	9 VDC	1.2 VDC	20 ms	10 ms	-30°C ~ 55°C	Silver Tin Oxide (AgSnO)	General Purpose	-	-
G6DN-1A-SL DC24 RELAY GEN PURPOSE SPST 5A 24V Omron Electronics Inc-EMC Div	457	-	RFQ	Datasheet	G6DN	Tray	Active	Through Hole	24VDC	SPST-NO (1 Form A)	5 A	277VAC, 125VDC - Max	1385VA, 625W	4.6 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	16.8 VDC	1.2 VDC	10 ms	5 ms	-40°C ~ 90°C	Silver Alloy	General Purpose	-	-
G6DN-1A DC12 RELAY GEN PURPOSE SPST 5A 12V Omron Electronics Inc-EMC Div	8,381	-	RFQ	Datasheet	G6DN	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	5 A	277VAC, 125VDC - Max	1385VA, 625W	9.2 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	8.4 VDC	0.6 VDC	10 ms	5 ms	-40°C ~ 90°C	Silver Alloy	General Purpose	-	-
AZ2150-1A-12DE RELAY GEN PURPOSE SPST 40A 12V American Zettler	3,660	-	RFQ	Datasheet	AZ2150	Box	Active	Through Hole	12VDC	SPST-NO (1 Form A)	40 A	300VAC, 30VDC - Max	12000VA, 1200W	77.4 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	9 VDC	1.2 VDC	12 ms	5 ms	-55°C ~ 85°C	Silver Cadmium Oxide (AgCdO)	General Purpose	-	-
J114AF2CS12VDC.53 RELAY GEN PURPOSE DPDT 8A 12V CIT Relay and Switch	8,595	-	RFQ	Datasheet	J114AF	Tube	Active	Through Hole	12VDC	DPDT (2 Form C)	8 A	380VAC, 110VDC - Max	3040VA, 880W	44.4 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	20 ms	10 ms	-55°C ~ 105°C	Silver Tin Oxide (AgSnO)	General Purpose	-	-
JW2SN-DC12V RELAY GEN PURPOSE DPDT 5A 12V Panasonic Electric Works	5,639	-	RFQ	Datasheet	JW	Box	Active	Through Hole	12VDC	DPDT (2 Form C)	5 A	250VAC, 30VDC - Max	1250VA, 150W	44 mA	Non Latching	-	PC Pin	Sealed - Fully	Class E	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Alloy	General Purpose	-	-
AZ2150-1A-24DE RELAY GEN PURPOSE SPST 40A 24V American Zettler	244	-	RFQ	Datasheet	AZ2150	Box	Active	Through Hole	24VDC	SPST-NO (1 Form A)	40 A	300VAC, 30VDC - Max	12000VA, 1200W	36.4 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	18 VDC	2.4 VDC	12 ms	5 ms	-55°C ~ 85°C	Silver Cadmium Oxide (AgCdO)	General Purpose	-	-
G6RL-1A4-ASI DC5 RELAY GEN PURPOSE SPST 10A 5V Omron Electronics Inc-EMC Div	20,149	-	RFQ	Datasheet	G6RL	Bulk	Active	Through Hole	5VDC	SPST-NO (1 Form A)	10 A	250VAC - Nom	2500VA	44 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.5 VDC	0.5 VDC	10 ms	5 ms	-40°C ~ 85°C	Silver Tin Indium (AgSnIn)	General Purpose	-	-
G5LE-1-E DC24 RELAY GEN PURPOSE SPDT 16A 24V Omron Electronics Inc-EMC Div	15,330	-	RFQ	Datasheet	G5LE-E	Tray	Active	Through Hole	24VDC	SPDT (1 Form C)	16 A	250VAC - Max	4000VA	16.7 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	18 VDC	2.4 VDC	10 ms	5 ms	-40°C ~ 85°C	Silver Tin Indium (AgSnIn)	General Purpose	-	-
G6DN-1A-L DC12 RELAY GEN PURPOSE SPST 5A 12V Omron Electronics Inc-EMC Div	7,181	-	RFQ	Datasheet	G6DN	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	5 A	277VAC, 125VDC - Max	1385VA, 625W	15 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	8.4 VDC	0.6 VDC	10 ms	5 ms	-40°C ~ 90°C	Silver Alloy	General Purpose	-	-
G5LE-1-E DC12 RELAY GEN PURPOSE SPDT 16A 12V Omron Electronics Inc-EMC Div	2,670	-	RFQ	Datasheet	G5LE-E	Tray	Active	Through Hole	12VDC	SPDT (1 Form C)	16 A	250VAC - Max	4000VA	33.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	9 VDC	1.2 VDC	10 ms	5 ms	-40°C ~ 85°C	Silver Tin Indium (AgSnIn)	General Purpose	-	-
J114AF2CS24VDC.53 RELAY GEN PURPOSE DPDT 8A 24V CIT Relay and Switch	2,445	-	RFQ	Datasheet	J114AF	Tube	Active	Through Hole	24VDC	DPDT (2 Form C)	8 A	380VAC, 110VDC - Max	3040VA, 880W	22.9 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	20 ms	10 ms	-55°C ~ 105°C	Silver Tin Oxide (AgSnO)	General Purpose	-	-

WINSUN SOURCING SUPPORT

Need Power Relays, Over 2 Amps Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Power Relays, Over 2 Amps FAQ

Common questions about selecting, comparing and sourcing Power Relays, Over 2 Amps components through Winsun (HK) Electronics.

What should I check when selecting Power Relays, Over 2 Amps components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific Power Relays, Over 2 Amps part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find Power Relays, Over 2 Amps parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for Power Relays, Over 2 Amps components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
