Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1511CF220VAC1.2RELAY GEN PURPOSE SPDT 20A 220V |
2,149 | - |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 220VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 15.3 mA | Non Latching | - | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1512CF220VAC1.2RELAY GEN PURPOSE DPDT 20A 220V |
4,668 | - |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 220VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 15.3 mA | Non Latching | - | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J1522CF110VACRELAY GEN PURPOSE DPDT 10A 110V |
1,682 | - |
|
Datasheet | J152 | Tray | Active | Chassis Mount | 110VAC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 29.3 mA | Non Latching | - | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

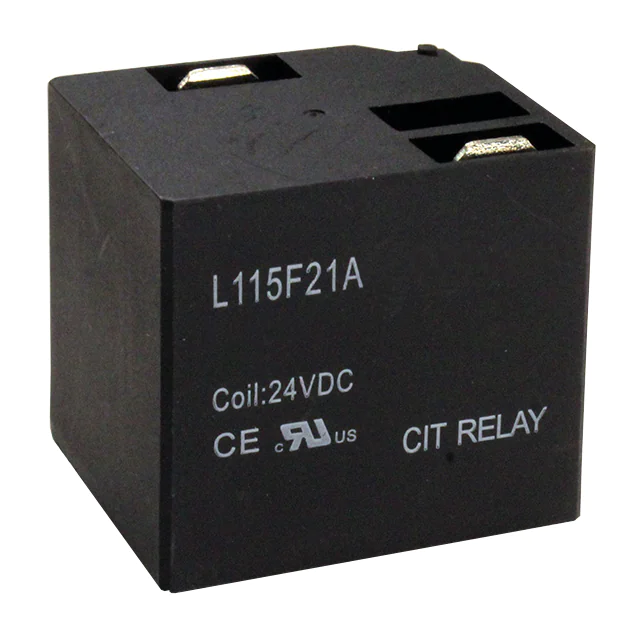

L115F21AH24VDCS1.5URELAY GEN PURPOSE SPST 50A 24V |
2,053 | - |
|
Datasheet | L115F2 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Latching, Single Coil | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
J1512CF110VAC1.2DRELAY GEN PURPOSE DPDT 20A 110V |
2,863 | - |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 110VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 28.2 mA | Non Latching | Lighted Indicator | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1511CF110VAC1.2DRELAY GEN PURPOSE SPDT 20A 110V |
2,504 | - |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 110VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 28.2 mA | Non Latching | Lighted Indicator | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J1522CT220VACDRELAY GEN PURPOSE DPDT 10A 220V |
3,853 | - |
|
Datasheet | J152 | Tray | Active | Socketable | 220VAC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 15.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J1522CP220VACDRELAY GEN PURPOSE DPDT 10A 220V |
4,808 | - |
|
Datasheet | J152 | Tray | Active | Through Hole | 220VAC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 15.3 mA | Non Latching | Lighted Indicator | PC Pin | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1511CF220VAC1.2DRELAY GEN PURPOSE SPDT 20A 220V |
3,478 | - |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 220VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 15.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1512CF220VAC1.2DRELAY GEN PURPOSE DPDT 20A 220V |
1,969 | - |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 220VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 15.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
