Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1511CT24VDC.9DRELAY GEN PURPOSE SPDT 20A 24V |
185 | - |
|
Datasheet | J151 | Tray | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J116F11A5VDCS1.5RELAY GEN PURPOSE SPST 50A 5V |
519 | - |
|
Datasheet | J116F1 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 294.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J116F11AW12VDCS1.5RELAY GEN PURPOSE SPST 50A 12V |
385 | - |
|
Datasheet | J116F1 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 125 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
L114FL1CS5VDC.40RELAY GEN PURPOSE SPDT 20A 5V |
861 | - |
|
Datasheet | L114FL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 80 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
L114FL1CS12VDC.40RELAY GEN PURPOSE SPDT 20A 12V |
772 | - |
|
Datasheet | L114FL | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
L114FL1AS5VDC.60DRELAY GEN PURPOSE SPST 20A 5V |
737 | - |
|
Datasheet | L114FL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 119 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

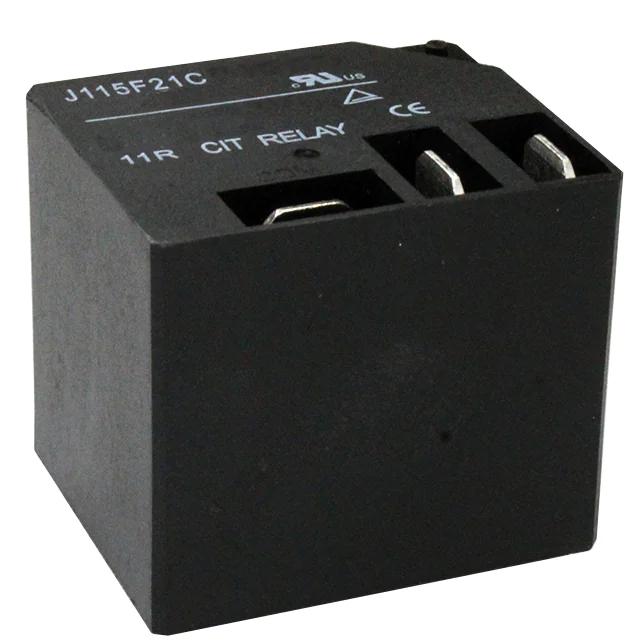

J115F21CH12VDCS61.5RELAY GEN PURPOSE SPDT 50A 12V |
384 | - |
|
Datasheet | J115F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

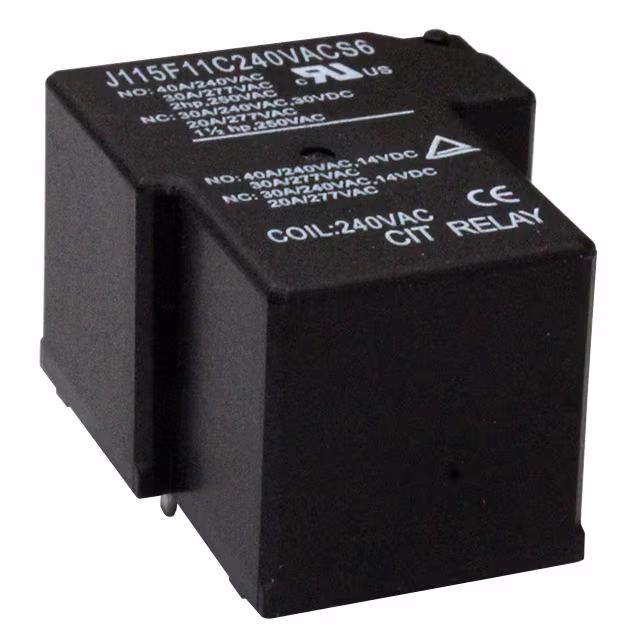

J115F11C240VACS6RELAY GEN PURPOSE SPDT 40A 240V |
2,096 | - |
|
Datasheet | J115F1 | Tube | Active | Through Hole | 240VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 15.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 180 VAC | 72 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

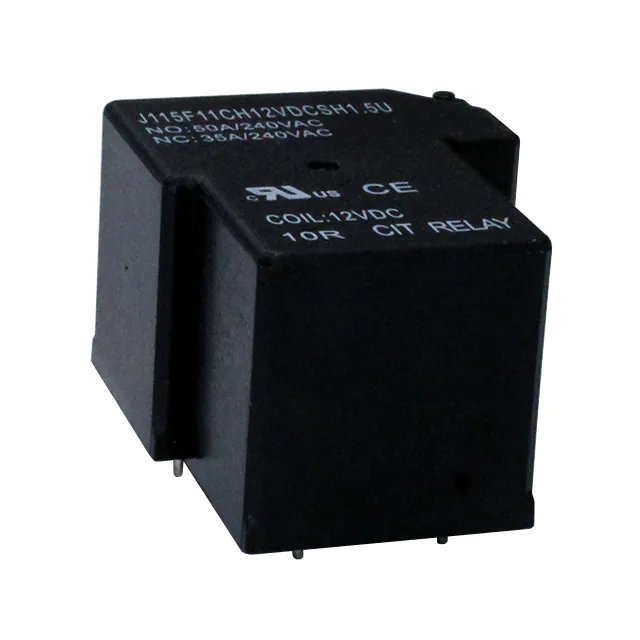

J115F11CH12VDCSH1.5URELAY GEN PURPOSE SPDT 50A 12V |
116 | - |
|
Datasheet | J115F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
L114FL1AS24VDC.60DRELAY GEN PURPOSE SPST 20A 24V |
122 | - |
|
Datasheet | L114FL | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 27.1 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
