Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J115F1E1CS24DSX.9FZRELAY GEN PURPOSE SPDT 30A 24VDC |
4,823 | - |
|
Datasheet | * | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J115F1E1CS48DSX.9FZRELAY GEN PURPOSE SPDT 30A 48VDC |
2,495 | - |
|
Datasheet | * | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J115F1E1AS110DSX.9FZRELAY GEN PURPOSE SPST N.O. 30A |
1,008 | - |
|
Datasheet | * | Tube | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J115F1E1CS110DSX.9BCRELAY GEN PURPOSE SPDT 30A 110VD |
4,553 | - |
|
Datasheet | * | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J115F11A12VDCSH.9SPST RELAY |
2,742 | - |
|
Datasheet | J115F | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
J115F1E1CS110DSX.9FZRELAY GEN PURPOSE SPDT 30A 110VD |
3,052 | - |
|
Datasheet | * | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1522CT24VDCRELAY GEN PURPOSE DPDT 10A 24V |
4,579 | - |
|
Datasheet | J152 | Tray | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 37.5 mA | Non Latching | - | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1672AC12VDCPRELAY GEN PURPOSE DPST |
2,148 | - |
|
Datasheet | J167 | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 160 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|

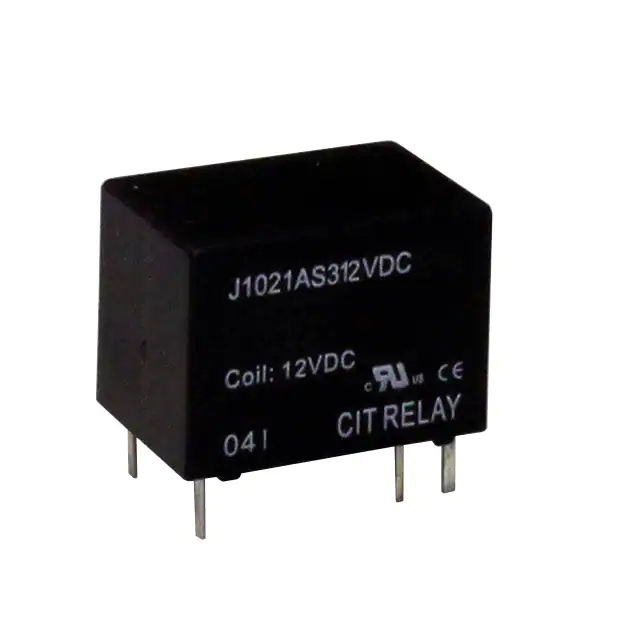

J1021AS312VDC.45RELAY GEN PURPOSE SPST 3A 12V |
1,427 | - |
|
Datasheet | J102 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J1021AS36VDC.36RELAY GEN PURPOSE SPST 3A 6V |
2,258 | - |
|
Datasheet | J102 | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
