Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20.21.8.120.0000RELAY IMPULSE SPST 16A 120V |
3,096 | - |
|
Datasheet | 20 | Bulk | Active | DIN Rail | 120VAC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 54 mA | Latching, Single Coil | Mechanical Indicator, Test Button | Screw Terminal | - | - | 102 VAC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | Impulse | - | - |
|

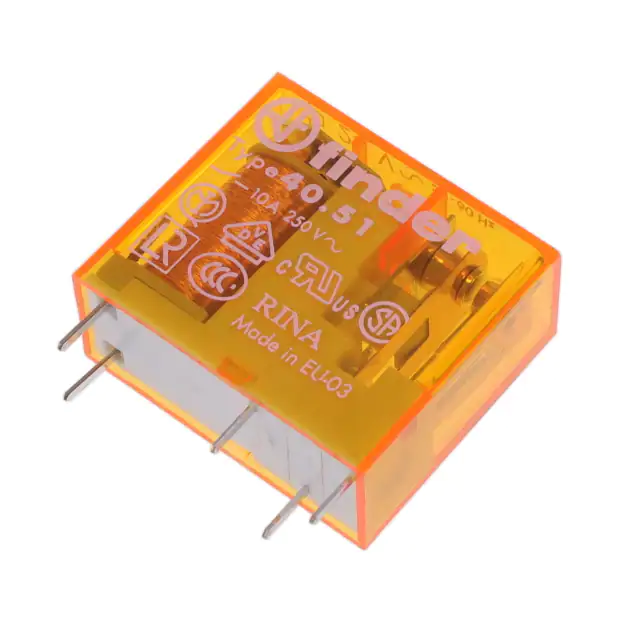

40.51.8.024.0000RELAY GEN PURPOSE SPDT 10A 24V |
2,023 | - |
|
Datasheet | 40 | Bulk | Active | Socketable | 24VAC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 45 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 19.2 VAC | 4.8 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
40.62.9.012.0000RELAY GEN PURPOSE DPDT 10A 12V |
4,167 | - |
|
Datasheet | 40 | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 55 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
40.51.8.230.0000RELAY GEN PURPOSE SPDT 10A 230V |
3,069 | - |
|
Datasheet | 40 | Bulk | Active | Socketable | 230VAC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 5 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 184 VAC | 46 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
55.32.9.012.0040RELAY GEN PURPOSE DPDT 10A 12V |
3,750 | - |
|
Datasheet | 55 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 86 mA | Non Latching | Mechanical Indicator, Test Button | Plug In | - | - | 9.6 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
55.33.8.024.0010RELAY GEN PURPOSE 3PDT 10A 24V |
4,057 | - |
|
Datasheet | 55 | Bulk | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 53 mA | Non Latching | Test Button | Plug In | - | - | 19.2 VAC | 4.8 VAC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

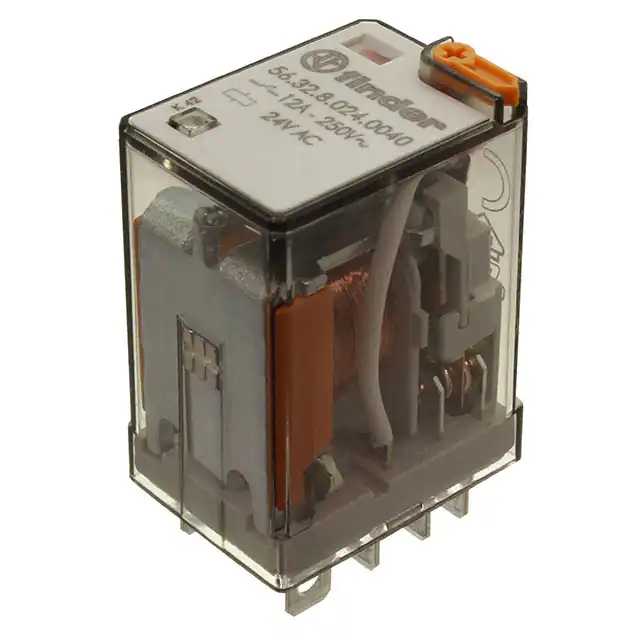

56.32.8.024.0040RELAY GEN PURPOSE DPDT 12A 24V |
2,416 | - |
|
Datasheet | 56 | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 53 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 4.8 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
55.32.8.120.0050RELAY GEN PURPOSE DPDT 10A 120V |
1,344 | - |
|
Datasheet | 55 | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 12 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 96 VAC | 24 VAC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
46.61.8.230.0040RELAY GEN PURPOSE SPDT 16A 230V |
2,323 | - |
|
Datasheet | 46 | Bulk | Active | Socketable | 230VAC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 5 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 184 VAC | 46 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

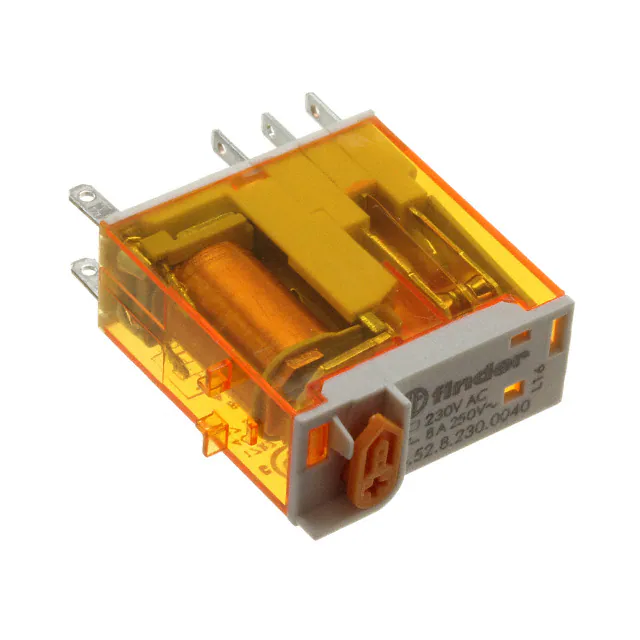

46.52.8.230.0040RELAY GEN PURPOSE DPDT 8A 230V |
3,914 | - |
|
Datasheet | 46 | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 5 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 184 VAC | 46 VAC | 10 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
