Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
166C50PWR XFMR LAMINATED 3.75VA CHAS |
1,855 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 50V | 75mA | Single | Single | Yes | 3.75VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms | 0.4 lb (181.44 g) |
|
160H40PWR XFMR LAMINATED 24VA TH |
2,456 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 1.2A, Series 600mA | Dual | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.8 lb (362.87 g) |
|
187F28PWR XFMR LAMINATED 100VA CHAS MT |
1,016 | - |
|
Datasheet | 187 | Box | Active | Laminated Core | 115V | 28V | 3.57A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.7 lbs (1.2 kg) |
|
|
166M16PWR XFMR LAMINATED 48VA CHAS MT |
4,757 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 16V | 3A | Single | Single | Yes | 48VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 2 lbs (907.2 g) |
|
229D10PWR XFMR SEMI-TORO 48VA TH |
1,075 | - |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.3 lbs (589.7 g) |
|
167G120PWR XFMR LAMINATED 60VA CHAS MT |
3,246 | - |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 120V | 500mA | Single | Single | Yes | 60VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|

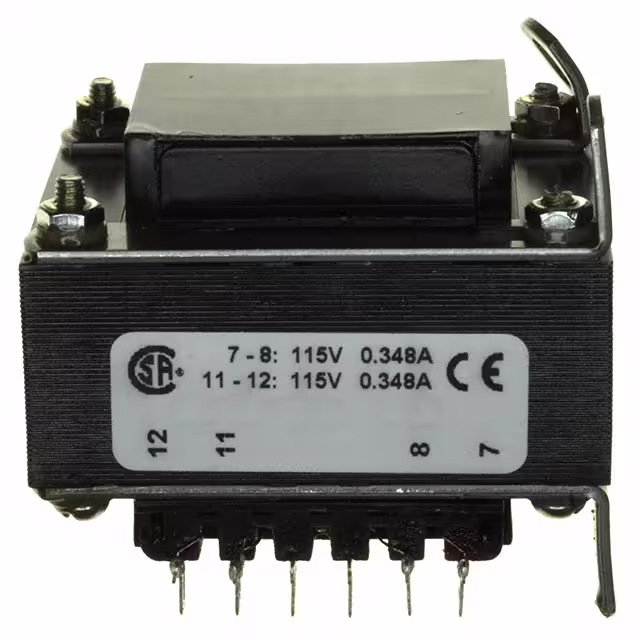

185E230PWR XFMR LAMINATED 80VA CHAS MT |
1,198 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 700mA, Series 350mA | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 66.29mm W | 76.20mm | 4000Vrms | 2.5 lbs (1.1 kg) |
|
PHC25JGAPWR XFMR LAMINATED 25VA CHAS MT |
2,512 | - |
|
Datasheet | PHC | Box | Active | Laminated Core | 120V | 24V | 1.04A | Single | Single | No | 25VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | - | 1.4 lbs (635 g) |
|
|
166Q6PWR XFMR LAMINATED 37.8VA CHAS |
4,737 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 6.3V | 6A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | 93.73mm L x 50.80mm W | 58.67mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
166M12BPWR XFMR LAMINATED 37.8VA CHAS |
1,248 | - |
|
Datasheet | 166 | Box | Active | Laminated Core | 117V | 12.6V | 3A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | - | - | 2000Vrms | - |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
