Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

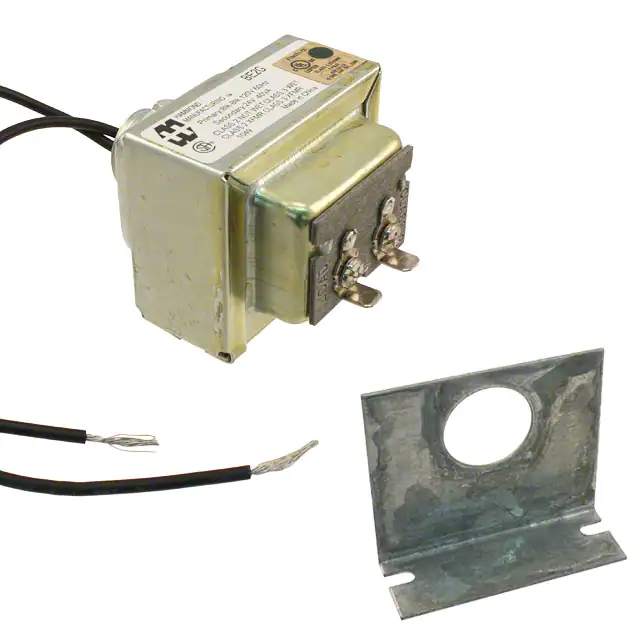

BE2GPWR XFMR LAMINATED 40VA CHAS MT |
1,879 | - |
|
Datasheet | BE | Bulk | Active | Laminated Core | 120V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 66.04mm W | 50.29mm | - | 1.5 lbs (680.4 g) |
|
166J8PWR XFMR LAMINATED 8.5VA CHAS MT |
3,760 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 8.5V | 1A | Single | Single | Yes | 8.5VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) |
|
|
166N12BPWR XFMR LAMINATED 48VA CHAS MT |
1,776 | - |
|
Datasheet | 166 | Box | Active | Laminated Core | 117V | 12V | 4A | Single | Single | Yes | 48VA | Chassis Mount | Wire Leads | 93.73mm L x 50.80mm W | 58.67mm | 2000Vrms | 2 lbs (907.2 g) |
|
269BXPWR XFMR LAMINATED 38VA CHAS MT |
1,570 | - |
|
Datasheet | 269 | Bulk | Active | Laminated Core | 115V | 300V, 6.3V | 86mA, 2A | Single | Dual | Yes | 38VA | Chassis Mount | Wire Leads | 55.63mm L x 63.50mm W | 66.80mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
1182T12PWR XFMR TOROIDAL 300VA CHAS MT |
4,351 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 12V, Series 24V | Parallel 25A, Series 12.5A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms | 6 lbs (2.7 kg) |
|
272DXPWR XFMR LAMINATED 123VA CHAS MT |
2,501 | - |
|
Datasheet | 272 | Bulk | Active | Laminated Core | 115V | 600V, 6.3V, 5V | 144mA, 4A, 3A | Single | Triple | Yes | 123VA | Chassis Mount | Wire Leads | 63.50mm L x 95.25mm W | 77.72mm | 2000Vrms | 4.6 lbs (2.1 kg) |
|
|
270FXPWR XFMR LAMINATED 138VA CHAS MT |
4,746 | - |
|
Datasheet | 270 | Bulk | Active | Laminated Core | 115V | 550V, 6.3V, 5V | 173mA, 5A, 3A | Single | Triple | Yes | 138VA | Chassis Mount | Wire Leads | 79.50mm L x 88.90mm W | 96.77mm | 2000Vrms | 4.8 lbs (2.2 kg) |
|
|
1182N60PWR XFMR TOROIDAL 500VA CHAS MT |
2,020 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 60V, Series 120V | Parallel 8.34A, Series 4.17A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 139.70mm Dia | 57.15mm | 4000Vrms | 9 lbs (4.1 kg) |
|
|
1182R30PWR XFMR TOROIDAL 500VA CHAS MT |
2,862 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 30V, Series 60V | Parallel 16.66A, Series 8.33A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 139.70mm Dia | 57.15mm | 4000Vrms | 9 lbs (4.1 kg) |
|
|
1182S24PWR XFMR TOROIDAL 500VA CHAS MT |
3,250 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 24V, Series 48V | Parallel 20.84A, Series 10.42A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 139.70mm Dia | 57.15mm | 4000Vrms | 9 lbs (4.1 kg) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
