Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XF-10202PWR XFMR TOROIDAL 1.6VA CHAS MT |
2,695 | - |
|
Datasheet | - | Bulk | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 67mA, Series 34mA | Dual | Dual | No | 1.6VA | Chassis Mount | Wire Leads | 37.50mm Dia | 17.00mm | 4000Vrms | 0.157 lb (71.21 g) |
|
L01-6334PWR XFMR TOROIDAL 7VA TH |
3,745 | - |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 388mA, Series 194mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms | 0.384 lb (174.18 g) |
|
|
XF-10232PWR XFMR TOROIDAL 15VA CHAS MT |
2,812 | - |
|
Datasheet | - | Bulk | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 625mA, Series 312mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | 57.50mm Dia | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
L01-6373PWR XFMR TOROIDAL 35VA TH |
1,678 | - |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 2.334A, Series 1.167A | Dual | Dual | No | 35VA | Through Hole | PC Pin | 72.00mm L x 72.00mm W | 37.50mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
|
L01-6383PWR XFMR TOROIDAL 50VA TH |
1,789 | - |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 3.332A, Series 1.666A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms | 1.8 lbs (816.5 g) |
|
|
XF-10250PWR XFMR TOROIDAL 50VA CHAS MT |
1,592 | - |
|
Datasheet | - | Bulk | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.083A, Series 1.0415A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 78.00mm Dia | 35.00mm | 4000Vrms | 1.5 lbs (680.4 g) |
|

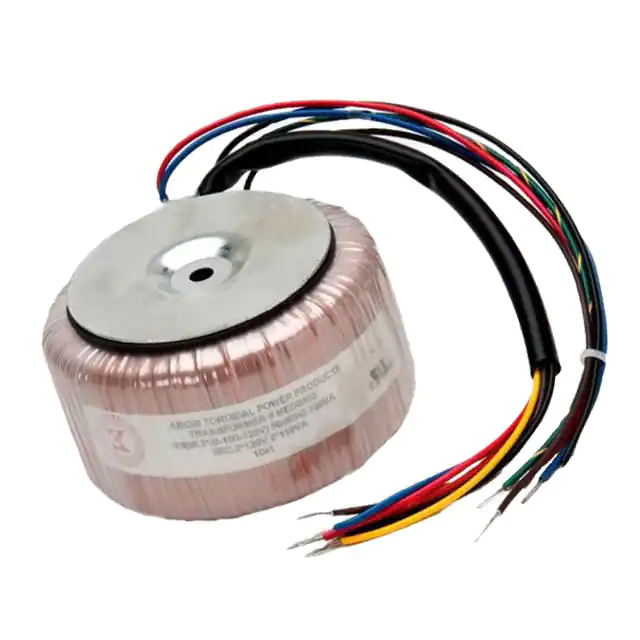

XF-00300-2018PWR XFMR TOROIDAL 300VA CHAS MT |
2,007 | - |
|
Datasheet | - | Bulk | Active | Toroidal | 117V | Parallel 18V, Series 36V | Parallel 16.66A, Series 8.33A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 116.84mm Dia | 73.66mm | 4000Vrms | 6.5 lbs (2.9 kg) |
|
|
XF-00300-2042PWR XFMR TOROIDAL 300VA CHAS MT |
1,739 | - |
|
Datasheet | - | Bulk | Active | Toroidal | 117V | Parallel 84V, Series 42V | Parallel 7.3A, Series 3.65A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 116.84mm Dia | 73.66mm | 4000Vrms | 6.5 lbs (2.9 kg) |
|
|
XF-00400-2042PWR XFMR TOROIDAL 400VA CHAS MT |
3,219 | - |
|
Datasheet | - | Bulk | Active | Toroidal | 117V | Parallel 42V, Series 84V | Parallel 9.52A, Series 4.76A | Dual | Dual | No | 400VA | Chassis Mount | Wire Leads | 142.24mm Dia | 60.96mm | 4000Vrms | 7.2 lbs (3.3 kg) |
|

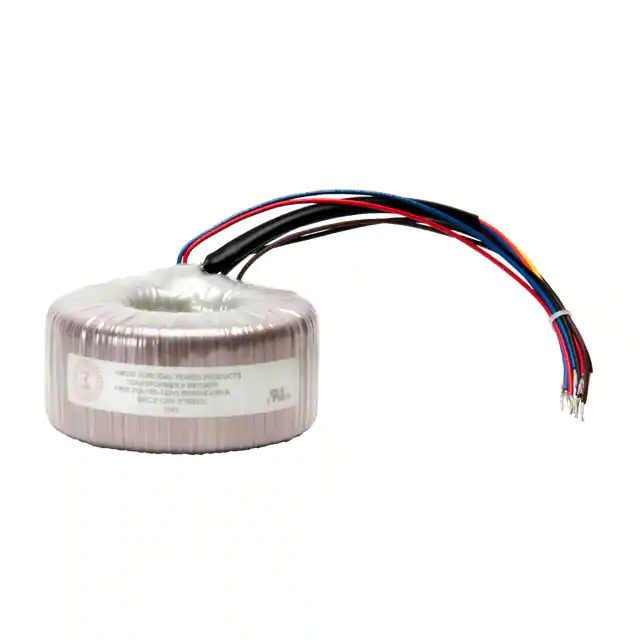

MED0100PWR XFMR TOROIDAL 100VA CHAS MT |
1,131 | - |
|
Datasheet | - | Bulk | Active | Toroidal | 100V, 120V | Parallel 120V, Series 240V | Parallel 830mA, Series 420mA | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | - | 50.80mm | - | 2.8 lbs (1.3 kg) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
