Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3FS-220PWR XFMR LAMINATED 1.1VA TH |
180 | - |
|
Datasheet | 3FS-2xx | Tube | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 25.40mm | 2500Vrms | - |
|
3FD-216PWR XFMR LAMINATED 1.1VA TH |
5,315 | - |
|
Datasheet | 3FD-2xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 38.00mm | 2500Vrms | - |
|
3FD-210PWR XFMR LAMINATED 1.1VA TH |
2,692 | - |
|
Datasheet | 3FD-2xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 25.40mm | 2500Vrms | - |
|
PL5.0-20-130BPWR XFMR LAMINATED 5VA TH |
516 | - |
|
Datasheet | PL5.0-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 500mA, Series 250mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms | - |
|

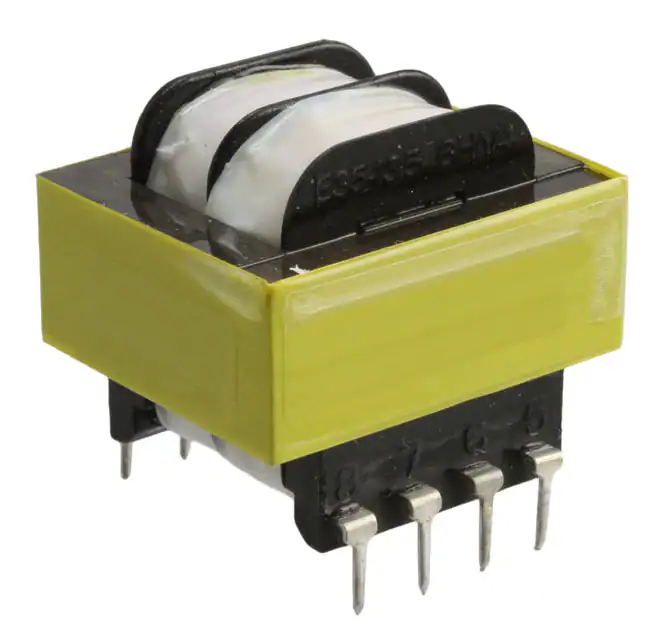

3FD-310PWR XFMR LAMINATED 2.4VA TH |
342 | - |
|
Datasheet | 3FD-3xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|
PL2.5-16-130BPWR XFMR LAMINATED 2.5VA TH |
561 | - |
|
Datasheet | PL2.5-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 28.60mm | 3500Vrms | - |
|
3FD-456PWR XFMR LAMINATED 6VA TH |
338 | - |
|
Datasheet | 3FD-4xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 220mA, Series 110mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 38.00mm | 2500Vrms | - |
|
PL10-28-130BPWR XFMR LAMINATED 10VA TH |
461 | - |
|
Datasheet | PL10-xx130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 720mA, Series 360mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 36.20mm | 3500Vrms | - |
|
|
PL5.0-12-130BPWR XFMR LAMINATED 5VA TH |
352 | - |
|
Datasheet | PL5.0-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 800mA, Series 400mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms | - |
|
|
PL5.0-36-130BPWR XFMR LAMINATED 5VA TH |
222 | - |
|
Datasheet | PL5.0-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 280mA, Series 140mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms | - |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
