Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F16-070PWR XFMR LAMINATED 1.1VA TH |
4,934 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
F28-040PWR XFMR LAMINATED 1.1VA TH |
3,453 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
F36-030PWR XFMR LAMINATED 1.1VA TH |
1,461 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 60mA, Series 30mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
F56-020PWR XFMR LAMINATED 1.1VA TH |
3,948 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
F-3132PPWR XFMR LAMINATED 1.5VA TH |
2,470 | - |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 7.5V, Series 15V | Parallel 200mA, Series 100mA | Dual | Dual | No | 1.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 28.58mm | 1500Vrms | 0.25 lb (113.4 g) |
|

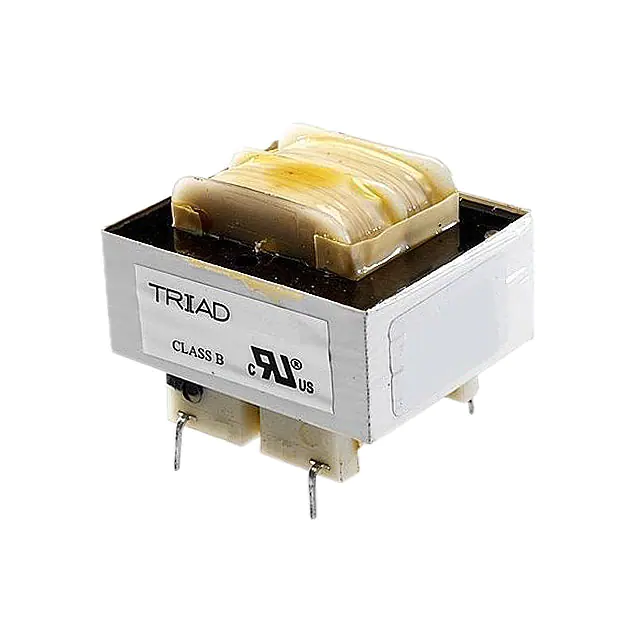

F16-150PWR XFMR LAMINATED 2.5VA TH |
1,779 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
F12-200PWR XFMR LAMINATED 2.5VA TH |
3,719 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
F28-85PWR XFMR LAMINATED 2.5VA TH |
2,937 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
F48-050PWR XFMR LAMINATED 2.5VA TH |
2,530 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 100mA, Series 50mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|

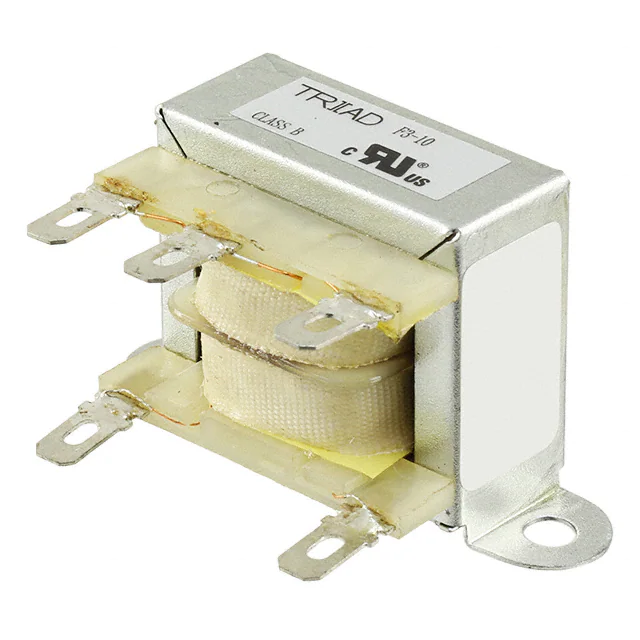

F3-10-BPWR XFMR LAMINATED 2.4VA CHAS MT |
1,608 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 10V | 250mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect | 52.37mm L x 44.45mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
