Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F7-36PWR XFMR LAMINATED 56VA CHAS MT |
3,409 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 36V | 1.5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|
F7-48PWR XFMR LAMINATED 56VA CHAS MT |
3,754 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 48V | 1.2A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

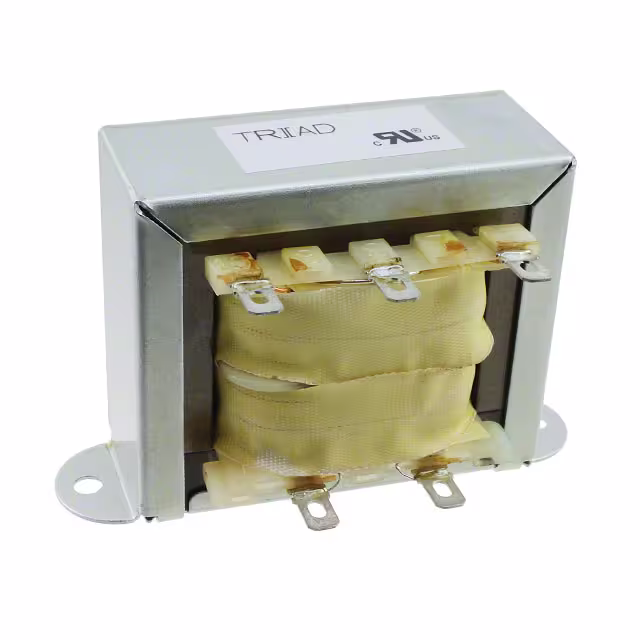

F7-56PWR XFMR LAMINATED 56VA CHAS MT |
3,542 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 56V | 1A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|
F-326XPWR XFMR LAMINATED 31.5VA CHAS |
4,776 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 12.6V | 2.5A | Dual | Single | Yes | 31.5VA | Chassis Mount | Wire Leads | 93.65mm L x 50.80mm W | 57.94mm | 1500Vrms | 1.6 lbs (725.7 g) |
|
F10-3600PWR XFMR LAMINATED 36VA TH |
2,828 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 7.2A, Series 3.6A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
F12-2850PWR XFMR LAMINATED 36VA TH |
4,753 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
F20-1800PWR XFMR LAMINATED 36VA TH |
2,285 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
F24-1500PWR XFMR LAMINATED 36VA TH |
4,163 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
F56-650PWR XFMR LAMINATED 36VA TH |
4,962 | - |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 1.3A, Series 650mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
TCT50-07E07ABPWR XFMR LAMINATED 50VA CHAS MT |
3,244 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 208V, 240V | 12V | 4.17A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.00mm | 1500Vrms | 2 lbs (907.2 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
