Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

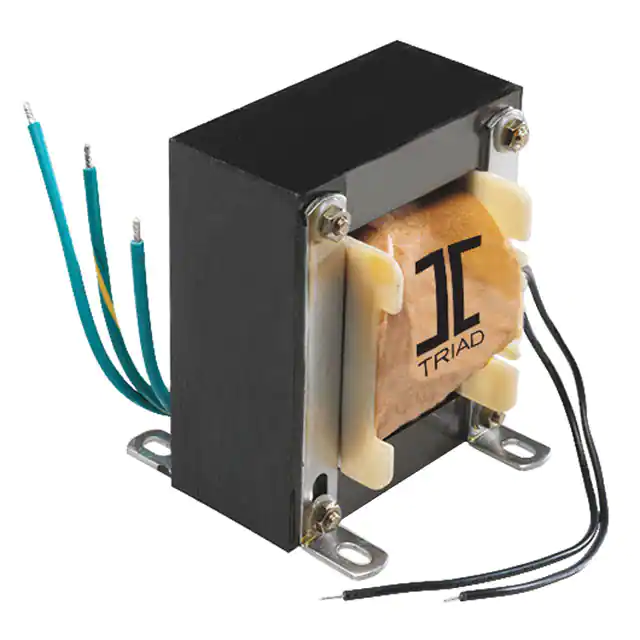

F-1000UPWR XFMR LAMINATED CHAS MT |
3,711 | - |
|
Datasheet | - | Box | Obsolete | Laminated Core | 115V, 230V | 24V | 21A | Dual | Single | Yes | - | Chassis Mount | Wire Leads | 111.13mm L x 88.90mm W | 133.35mm | 1500Vrms | 14 lbs (6.4 kg) |
|
VPM18-13800PWR XFMR TOROIDAL 250VA CHAS MT |
3,673 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 9V, Series 18V | Parallel 27.6A, Series 13.8A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms | 5.6 lbs (2.5 kg) |
|
|
VPM24-10420PWR XFMR TOROIDAL 250VA CHAS MT |
3,859 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 12V, Series 24V | Parallel 20.84A, Series 10.42A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms | 5.6 lbs (2.5 kg) |
|
|
VPM36-6940PWR XFMR TOROIDAL 250VA CHAS MT |
3,275 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 18V, Series 36V | Parallel 13.88A, Series 6.94A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms | 5.6 lbs (2.5 kg) |
|
|
VPM48-5200PWR XFMR TOROIDAL 250VA CHAS MT |
3,797 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 10.4A, Series 5.2A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms | 5.6 lbs (2.5 kg) |
|

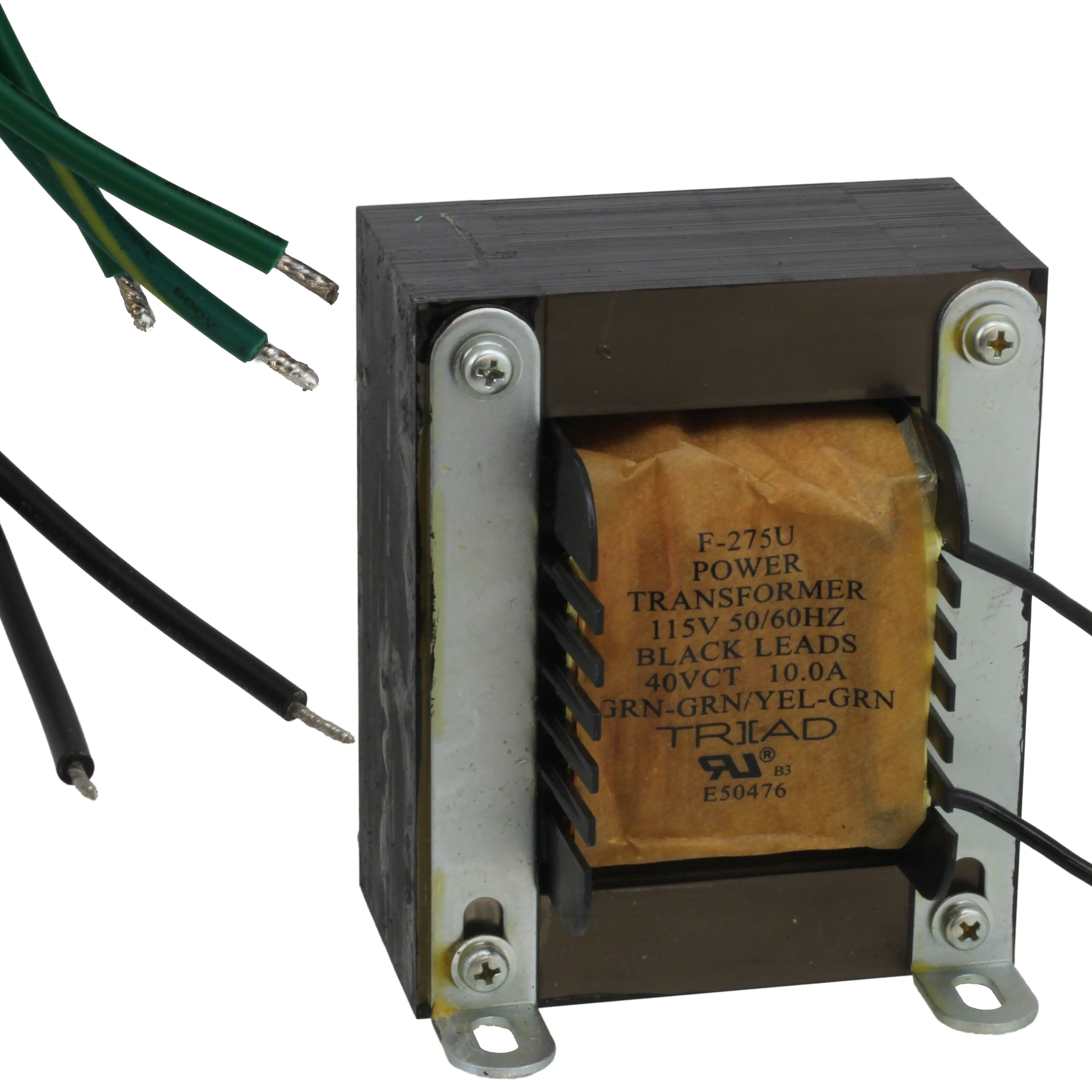

F-275UPWR XFMR LAMINATED 400VA CHAS MT |
3,294 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 40V | 10A | Single | Single | Yes | 400VA | Chassis Mount | Wire Leads | 111.13mm L x 114.30mm W | 136.53mm | 1500Vrms | 15 lbs (6.8 kg) |
|
|
F-282UPWR XFMR LAMINATED 360VA CHAS MT |
2,580 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 60V | 6A | Single | Single | Yes | 360VA | Chassis Mount | Wire Leads | 111.13mm L x 104.78mm W | 133.35mm | 1500Vrms | 13 lbs (5.9 kg) |
|
|
VPM100-5000PWR XFMR TOROIDAL 500VA CHAS MT |
2,767 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 50V, Series 100V | Parallel 10A, Series 5A | Dual, Multiple Taps | Dual | No | 500VA | Chassis Mount | Wire Leads | 147.00mm Dia | 64.00mm | 4000Vrms | 11 lbs (5 kg) |
|

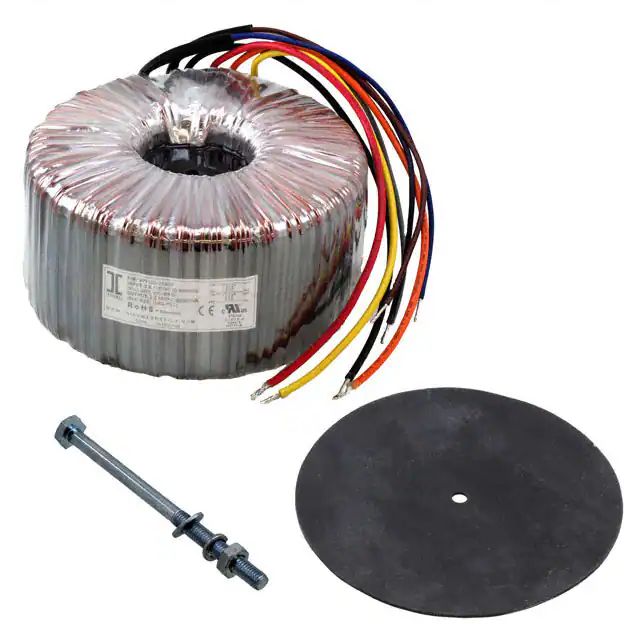

VPT230-10870PWR XFMR TOROIDAL 2500VA CHAS MT |
2,376 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 21.74A, Series 10.87A | Dual | Dual | No | 2500VA | Chassis Mount | Wire Leads | 208.00mm Dia x 112.00mm W | 120.0mm | 4000Vrms | 43 lbs (19.5 kg) |
|
HSM-203PWR XFMR 115/600V/5 |
1,219 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
