Pressure Sensors, Transducers
Use the filters and product table below to compare Pressure Sensors, Transducers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPRLS0025PA00001ASENSOR 25PSIA 0.1" 24BIT |
1,138 | - |
|
Datasheet | MPR | 12-SMD Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 25PSI (172.37kPa) | I2C | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
TBPDANN150PGUCVSENSOR 150PSIG 0.11" .04575V DIP |
2,258 | - |
|
Datasheet | TBP | 4-DIP (0.453", 11.50mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
ABP2DANT150PGSA3XXSENSOR 150PSIG 0.108" 14BIT 6DIP |
433 | - |
|
Datasheet | ABP2 | 6-DIP (0.453", 11.50mm), Top Port | Box | Active | - | Gauge | 150PSI (1034.21kPa) | SPI | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.108" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 240PSI (1654.74kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
|
ABP2MRRT060MD2A3XXSENSOR 14BIT 6SMD |
346 | - |
|
Datasheet | ABP2 | 6-SMD, J-Lead, Dual Ports, Same Side | Tube | Active | - | Vented Gauge | - | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | - | - | Amplified Output, Temperature Compensated | J Lead | - | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
|
ABPLLNT010BGAA5SENSOR 145.04PSIG 0.11" 4.5V SMD |
499 | - |
|
Datasheet | ABP | 6-SMD Module, No Lead | Tube | Active | Medical Ventilation | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.11" (2.67mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
24PCEFA6GSENSOR 0.5PSIC 0.2" .035V |
514 | - |
|
Datasheet | 24PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±0.5PSI (±3.45kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
ABPDANT015PGAA5SENSOR 15PSIG 0.08" 4.5V 6DIP |
161 | - |
|
Datasheet | ABP | 6-DIP Module | Tube | Active | Medical Ventilation | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|

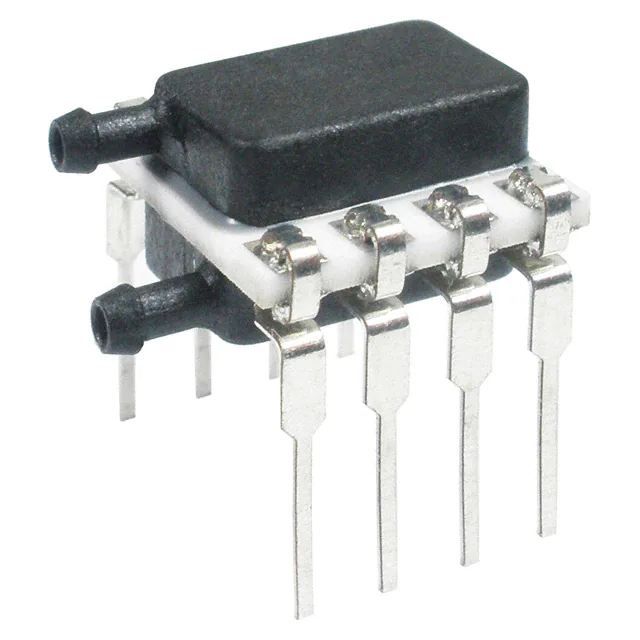

TSCDRRN015PDUCVSENSOR 15PSID 0.08" .0525V 8DIP |
2,069 | - |
|
Datasheet | TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 52.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ABPDANT005PGAA5SENSOR 5PSIG 0.08" 4.5V 6DIP |
307 | - |
|
Datasheet | ABP | 6-DIP Module | Tray | Active | Medical Ventilation | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
ABPMAND001PG2A3SENSOR 1PSIG 0.08" 12BIT 6SMD |
700 | - |
|
Datasheet | ABP | 6-SMD Module | Tube | Active | Medical Ventilation | Vented Gauge | 1PSI (6.89kPa) | I2C | 12 b | ±0.25% | 3.3V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
Pressure Sensors, Transducers FAQ
Common questions about filtering, comparing and sourcing Pressure Sensors, Transducers components.
How can I narrow the Pressure Sensors, Transducers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pressure Sensors, Transducers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
