Pressure Sensors, Transducers
Use the filters and product table below to compare Pressure Sensors, Transducers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

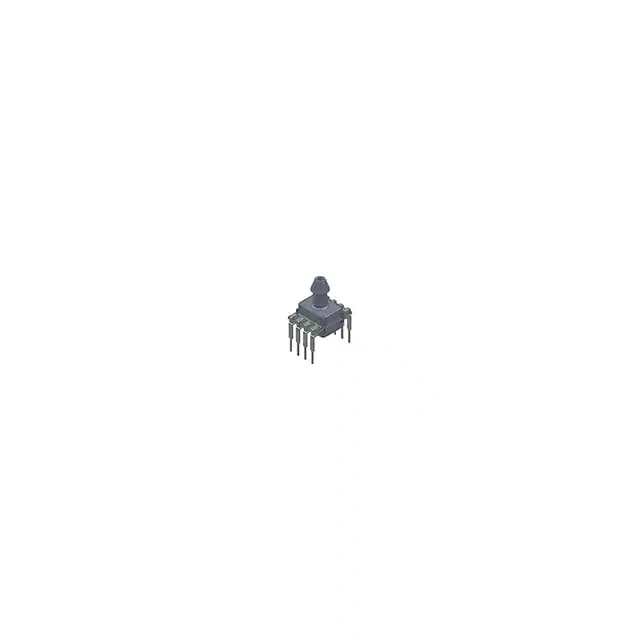

ELVH-L10D-HRND-C-NSA5SENSOR 0.36PSID 0.06" 14BIT |
4,603 | - |
|
Datasheet | ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | PC Pin | 12.62PSI (87kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
BLVR-L01D-B1NS-NSENSOR 0.04PSID 0.08" .008V 4SIP |
4,145 | - |
|
Datasheet | BLVR | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Wheatstone Bridge | 0 mV ~ 8 mV (3.3V) | ±2% | 6V | Male - 0.08" (2.04mm) Tube, Dual | Barbless | - | PC Pin | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
BLVR-L10D-B1NS-NSENSOR 0.36PSID 0.08" .032V 4SIP |
3,789 | - |
|
Datasheet | BLVR | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Wheatstone Bridge | 0 mV ~ 32 mV (3.3V) | ±2% | 6V | Male - 0.08" (2.04mm) Tube, Dual | Barbless | - | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

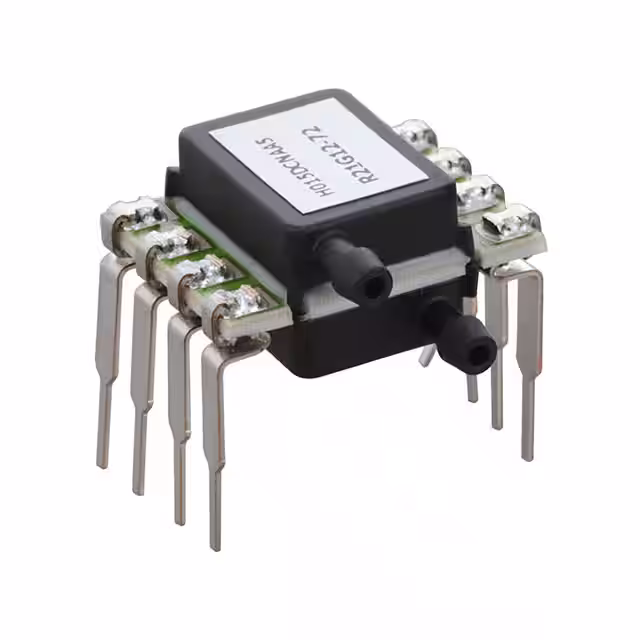

ELVH-015D-HRRD-C-NAA5SENSOR 14.94PSID 0.06" 8DIP |
1,051 | - |
|
Datasheet | ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | -1.45PSI ~ 14.94PSI (-10kPa ~ 103kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 30.02PSI (207kPa) | 0°C ~ 50°C | - | - | Through Hole | 8-DIP |
|
ELVH-015A-HAND-C-NAA5SENSOR 14.94PSIA 0.19" |
4,522 | - |
|
Datasheet | ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Absolute | 15PSI (103.42kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-150G-HAND-C-NAA5SENSOR 149.97PSIG 0.19" |
3,995 | - |
|
Datasheet | ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Gauge | 150PSI (1034.21kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 250.05PSI (1724kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-005D-HRRD-C-NAA5SENSOR 4.93PSID 0.06" 8DIP |
1,407 | - |
|
Datasheet | ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | -0.44PSI ~ 4.93PSI (-3kPa ~ 34kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Through Hole | 8-DIP |
|
ELVH-030A-HAND-C-NAA5SENSOR 30.02PSIA 0.19" |
2,602 | - |
|
Datasheet | ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Absolute | 30PSI (206.84kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 60.05PSI (414kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-030G-HAND-C-PSA4SENSOR 30.02PSIG 0.19" 14BIT |
2,570 | - |
|
Datasheet | ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Gauge | 30PSI (206.84kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 60.05PSI (414kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
|
ELVH-L10D-HAAH-C-NAA5SENSOR 0.36PSID 0.19" |
2,053 | - |
|
Datasheet | ELV | 4-SIP, Dual Ports, Opposite Sides | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 12.62PSI (87kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
Pressure Sensors, Transducers FAQ
Common questions about filtering, comparing and sourcing Pressure Sensors, Transducers components.
How can I narrow the Pressure Sensors, Transducers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pressure Sensors, Transducers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
