Pressure Sensors, Transducers
Browse available Pressure Sensors, Transducers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLX90809LXG-EAD-007-SPSENSOR 14.5PSI 4.5V 16SOIC |
496 | - |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Tube | Active | Industrial Automation | - | 14.5PSI (100kPa) | Analog Voltage | 0.5V ~ 4.5V | ±1.5% | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 16-SOIC |
|
|
SP4001511XTMA1SENSOR 203.05PSIA DSOSP14 |
1,790 | - |
|
Datasheet | - | 14-BSSOP (0.220", 5.60mm Width) | Tape & Reel (TR) | Active | Board Mount | Absolute | 14.5PSI ~ 203.05PSI (100kPa ~ 1400kPa) | RF | - | - | 3.6V | - | No Port | - | - | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | PG-DSOSP-14-82 |
|
NPP-301B-100ASENSOR 15PSIA 0.08" .06V |
546 | - |
|
Datasheet | NPP-301 | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.2% | 3V ~ 10V | Male - 0.08" (2.04mm) Tube, Dual | Barbless | - | Gull Wing | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MPXM2102AT1SENSOR 14.5PSIA .04V 5MPAK |
510 | - |
|
Datasheet | MPXM2102 | 5-SMD Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
MPXM2053GST1SENSOR 7.25PSIG 0.12" .04V 5MPAK |
4,188 | - |
|
Datasheet | MPXM2053 | 5-SMD Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | -0.6% ~ 0.4% | 10V ~ 16V | Male - 0.12" (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
TBPLANN100PGUCVSENSOR 100PSIG 0.11" .0255V 6SMT |
474 | - |
|
Datasheet | TBP | 6-SMD, No Lead, Top Port | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 25.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 245PSI (1689.22kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
|
MPXM2202GST1SENSOR 29.01PSIG 0.12" .04V MPAK |
544 | - |
|
Datasheet | MPX2202 | 5-SMD Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.12" (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
|
MPXM2102ASSENSOR 14.5PSIA 0.12" .04V 5MPAK |
3,995 | - |
|
Datasheet | MPXM2102 | 5-SMD Module, Top Port | Tube | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.12" (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
|
MPRSL0001PG0000SCSENSOR 1PSIG 0.17" 24BIT |
1,198 | - |
|
Datasheet | MPR | 12-SMD Module | Tape & Reel (TR) | Active | Board Mount | Gauge | 1PSI (6.89kPa) | SPI | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.17" (4.2mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
MPXH6101A6T1SENSOR 15.23PSIA 5V 8SSOP |
644 | - |
|
Datasheet | MPXH6101A | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.18PSI ~ 15.23PSI (15kPa ~ 105kPa) | Analog Voltage | 0.2 V ~ 5 V | ±1.72% | 4.75V ~ 5.5V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPXV2010DPSENSOR 1.45PSID 0.13" .025V 8SOP |
1,047 | - |
|
Datasheet | MPXV2010 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Active | Board Mount | Differential | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (10V) | ±1% | 10V ~ 16V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPXV2050GPSENSOR 7.25PSIG 0.13" .04V 8SOP |
109 | - |
|
Datasheet | MPXV2050 | 8-SMD, Gull Wing, Side Port | Tray | Active | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±0.3% | 10V ~ 16V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|

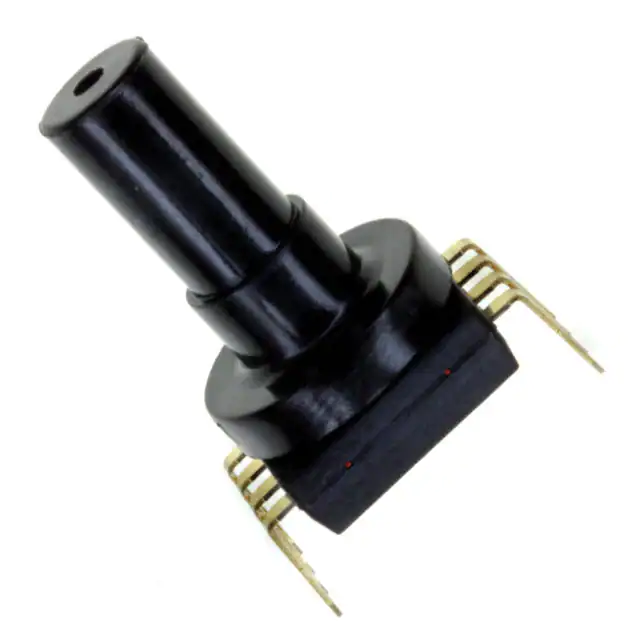

MPVZ4006GW7USENSOR 0.87PSIG 0.22" 4.6V |
138 | - |
|
Datasheet | MPVZ4006G | 8-DIP Module | Tube | Active | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0.3 V ~ 4.6 V | - | 4.75V ~ 5.25V | Male - 0.22" (5.59mm) Tube | Barbless | Temperature Compensated | PC Pin | 10.88PSI (75kPa) | 10°C ~ 60°C | - | - | Through Hole | - |
|
|
MMR920C04ARESENSOR 0.57PSIG 0.1" 7BIT |
489 | - |
|
Datasheet | - | 12-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Gauge | -0.57PSI ~ 0.57PSI (-3.92kPa ~ 3.92kPa) | I2C, SPI | 7 b | ±0.65% | 3V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.14PSI (7.85kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
MPX2102ASXSENSOR 14.5PSIA 0.19" .04V |
14,865 | - |
|
Datasheet | MPX2102 | 4-SIP Module | Tray | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPX2102APSENSOR 14.5PSIA 0.19" .04V |
3,223 | - |
|
Datasheet | MPX2102 | 4-SIP Module | Tray | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
MPX2010GSXSENSOR 1.45PSIG 0.19" .025V |
1,401 | - |
|
Datasheet | MPX2010 | 4-SIP Module | Tray | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19" (4.92mm) Tube | Barbed | Temperature Compensated | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

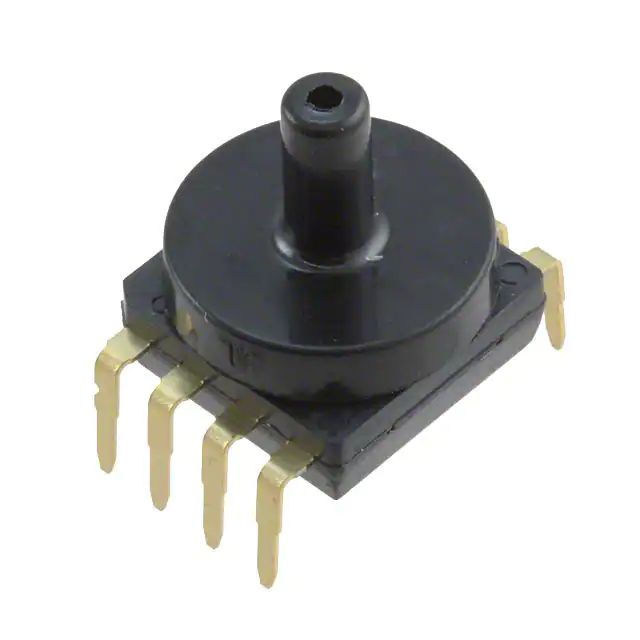

MPXV5010GC7USENSOR 1.45PSIG 0.13" 4.7V 8DIP |
120 | - |
|
Datasheet | MPXV5010 | 8-DIP (0.550", 13.97mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
P-2000-501G-15-BNSENSOR 7.11PSIG 0.13" .09V 6DIP |
1,713 | - |
|
Datasheet | P-2000 | 6-DIP (0.472", 12.00mm), Top Port | Bulk | Active | Board Mount | Gauge | 7.11PSI (49kPa) | Analog Voltage | 0 mV ~ 90 mV | - | - | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 14.21PSI (98kPa) | -20°C ~ 80°C | - | - | Through Hole | 6-DIP |
|
NBPLANN030PGUNVSENSOR 30PSIG 0.11" .105V |
697 | - |
|
Datasheet | NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | - | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
Pressure Sensors, Transducers FAQ
Common questions about selecting, comparing and sourcing Pressure Sensors, Transducers components through Winsun (HK) Electronics.
What should I check when selecting Pressure Sensors, Transducers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Pressure Sensors, Transducers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Pressure Sensors, Transducers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
