Pressure Sensors, Transducers
Use the filters and product table below to compare Pressure Sensors, Transducers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
86-300G-RSENSOR 300PSIG 0.1V |
2,922 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|

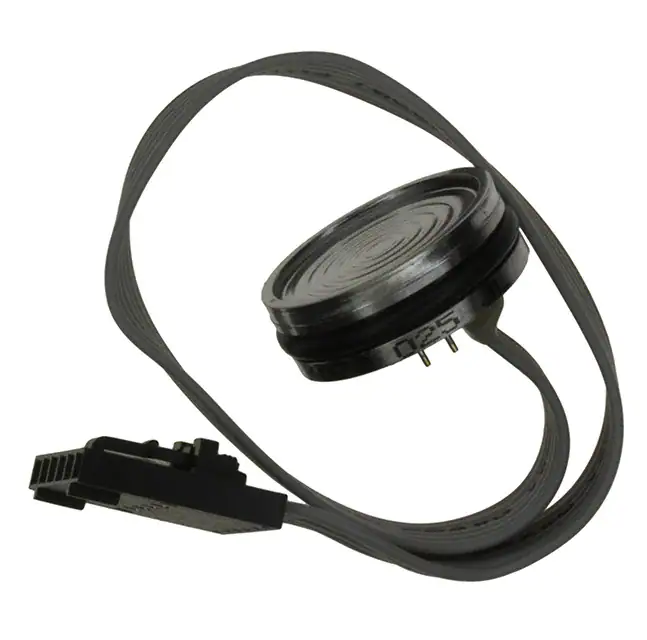

82-100G-CSENSOR 100PSIG 0.1V |
2,446 | - |
|
Datasheet | - | - | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|

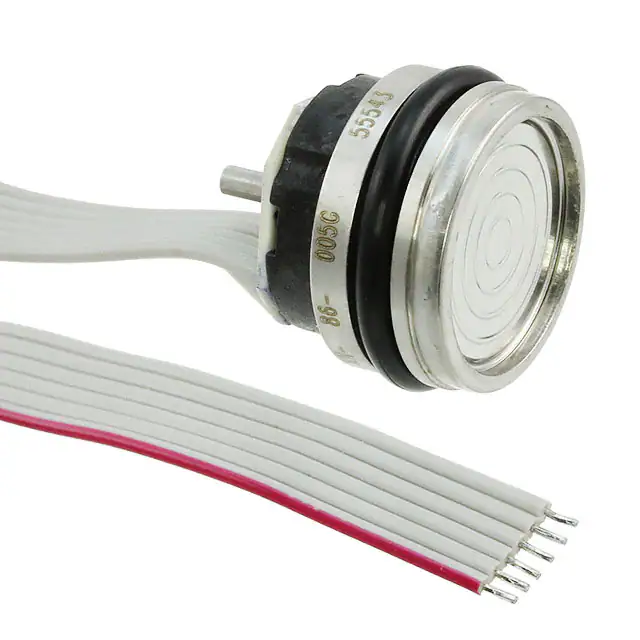

86-005G-RTSENSOR 5PSIG 0.1V |
4,772 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C | - | - | - | - |
|
M3256-00000E-020BGSENSOR 290.08PSIG 1/4" .02A |
1,111 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 290.08PSI (2000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Connector | 580PSI (4000kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M325M-00000P-250PGSENSOR 250PSIG 7/16" .02A |
4,679 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 500PSI (3447.38kPa) | -40°C ~ 125°C | - | - | - | - |
|
M325M-00000P-01KPGSENSOR 1000PSIG 7/16" .02A |
4,203 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 2000PSI (13789.51kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M326M-00000B-007BGSENSOR 101.53PSIG 1/4" 5V |
2,773 | - |
|
Datasheet | - | - | Box | Active | - | Gauge | 101.53PSI (700kPa) | Analog Voltage | 0 V ~ 5 V | ±0.25% | 8V ~ 30V | Male - 1/4" (6.35mm) G | Threaded | Amplified Output, Temperature Compensated | - | 203.05PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
85-015G-FCSENSOR 15PSIG 0.1V |
1,927 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|

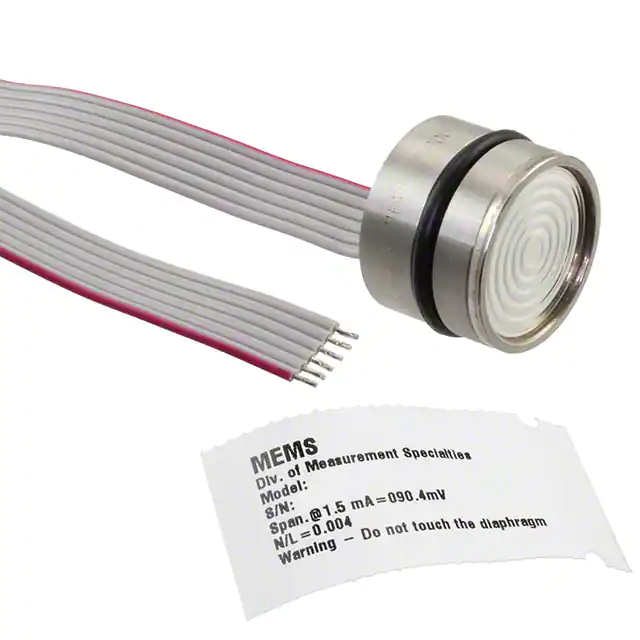

154N-050A-RSENSOR 50PSIA 0.1V |
1,006 | - |
|
Datasheet | - | Module | Tube | Active | Board Mount | Absolute | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
86BSD030PG-3AICSENSOR 30PSIG 14BIT |
3,634 | - |
|
Datasheet | - | - | Tube | Active | - | Gauge | 30PSI (206.84kPa) | I2C | 14 b | ±1% | 2.7V ~ 5.5V | - | No Port | Temperature Compensated | - | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | - | - |
Pressure Sensors, Transducers FAQ
Common questions about filtering, comparing and sourcing Pressure Sensors, Transducers components.
How can I narrow the Pressure Sensors, Transducers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pressure Sensors, Transducers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
