Pressure Sensors, Transducers
Use the filters and product table below to compare Pressure Sensors, Transducers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP42210SENSOR 4.97PSIG 0.1" 0.1V |
4,895 | - |
|
Datasheet | PS | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 4.97PSI (34.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 9.95PSI (68.6kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP42A23SENSOR 5.8PSIG 0.1" 0.1V |
3,626 | - |
|
Datasheet | PS | 6-DIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 11.6PSI (80kPa) | -5°C ~ 50°C | - | - | Through Hole | - |
|
|
ADP51A11SENSOR 5.8PSIG 0.12" 2.7V |
2,703 | - |
|
Datasheet | PS-A | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Analog Voltage | 0.3 V ~ 2.7 V | ±4% | 3V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 11.6PSI (80kPa) | -5°C ~ 50°C | - | - | Through Hole | - |
|
ADP1231SENSOR 7.11PSIG 0.12" 0.1V |
1,490 | - |
|
Datasheet | PF | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 7.11PSI (49kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 14.21PSI (98kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
ADP1181SENSOR 120.9PSIG 0.12" 0.1V |
1,660 | - |
|
Datasheet | PF | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 120.9PSI (833.6kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.6% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 181.36PSI (1250.4kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP42010SENSOR 0.71PSIG 0.1" .04V |
3,902 | - |
|
Datasheet | PS | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 0.71PSI (4.9kPa) | Wheatstone Bridge | 0 mV ~ 40 mV | ±0.7% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 1.42PSI (9.8kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP42810SENSOR 120.9PSIG 0.1" 0.1V |
1,532 | - |
|
Datasheet | PS | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 120.9PSI (833.6kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.6% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 181.36PSI (1250.4kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|

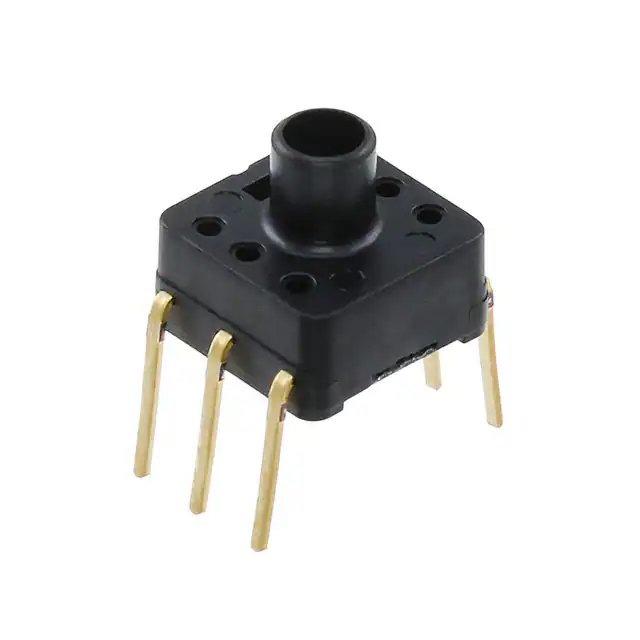

ADP5130SENSOR 7.25PSIG 0.12" 4.5V |
2,956 | - |
|
Datasheet | PS-A | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 14.5PSI (100kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|

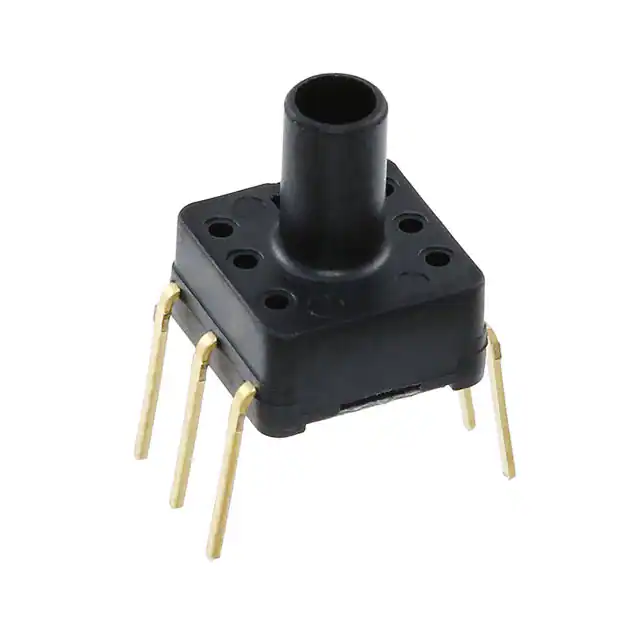

ADP5131SENSOR 7.25PSIG 0.12" 4.5V |
1,183 | - |
|
Datasheet | PS-A | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 14.5PSI (100kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
ADP1131SENSOR 7.11PSIG 0.12" 0.1V 6DIP |
1,142 | - |
|
Datasheet | PF | 6-DIP | Tray | Obsolete | Board Mount | Gauge | 7.11PSI (49kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | - | - | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 14.21PSI (98kPa) | -20°C ~ 100°C | - | - | Through Hole | 6-DIP |
Pressure Sensors, Transducers FAQ
Common questions about filtering, comparing and sourcing Pressure Sensors, Transducers components.
How can I narrow the Pressure Sensors, Transducers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pressure Sensors, Transducers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
