PTC Resettable Fuses
Use the filters and product table below to compare PTC Resettable Fuses components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "RS90-017")
|
RS90-017PTC RESET FUSE 72V 170MA RADIAL |
499 | - |
|
Datasheet | Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
RS90-020PTC RESET FUSE 72V 200MA RADIAL |
299 | - |
|
Datasheet | Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
RS90-040PTC RESET FUSE 72V 400MA RADIAL |
499 | - |
|
Datasheet | Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | 0.531" (13.50mm) | - | 0.201" (5.10mm) |
|
RS90-030PTC RESET FUSE 72V 300MA RADIAL |
499 | - |
|
Datasheet | Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

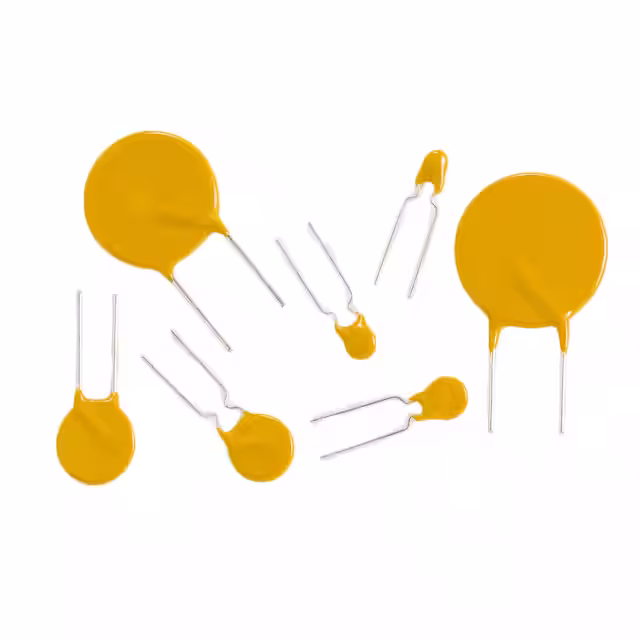

RS90-035PTC RESET FUSE 72V 350MA RADIAL |
489 | - |
|
Datasheet | Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 350 mA | 750 mA | 40 A | 10 s | 700 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
RS60RB-050PTC RESET FUSE 60V 500MA RADIAL |
875 | - |
|
Datasheet | Radial, Disc | RS60RB | Bulk | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
RS90-055PTC RESET FUSE 72V 550MA RADIAL |
484 | - |
|
Datasheet | Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 550 mA | 1.2 A | 40 A | 10 s | 400 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
|
RS90-050PTC RESET FUSE 72V 500MA RADIAL |
472 | - |
|
Datasheet | Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
RS30-090PTC RESET FUSE 30V 900MA RADIAL |
386 | - |
|
Datasheet | Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 900 mA | 1.8 A | 100 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
RS90-065PTC RESET FUSE 72V 650MA RADIAL |
229 | - |
|
Datasheet | Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
Common questions about filtering, comparing and sourcing PTC Resettable Fuses components.
How can I narrow the PTC Resettable Fuses selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific PTC Resettable Fuses part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
