PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRG21BC4R7MS5RAPTC RESET FUSE |
3,716 | - |
|
Datasheet | - | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MF-MSMD020-2PTC RESET FUSE 30V 200MA 1812 |
3,239 | - |
|
Datasheet | 1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 200 mA | 400 mA | 80 A | 60 ms | 400 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.027" W (4.55mm x 0.68mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD050-2PTC RESET FUSE 15V 500MA 1812 |
3,048 | - |
|
Datasheet | 1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.020" W (4.55mm x 0.50mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD075-2PTC RESET FUSE 13.2V 750MA 1812 |
3,525 | - |
|
Datasheet | 1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.020" W (4.55mm x 0.50mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD110-2PTC RESET FUSE 6V 1.1A 1812 |
6,481 | - |
|
Datasheet | 1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.020" W (4.55mm x 0.50mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD014-2PTC RESET FUSE 60V 140MA 1812 |
3,831 | - |
|
Datasheet | 1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 140 mA | 340 mA | 40 A | 150 ms | 400 mOhms | 6.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.027" W (4.55mm x 0.68mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD125-2PTC RESET FUSE 6V 1.25A 1812 |
5,713 | - |
|
Datasheet | 1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.25 A | 2.5 A | 100 A | 400 ms | 35 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.015" W (4.55mm x 0.39mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD150-2PTC RESET FUSE 6V 1.5A 1812 |
7,071 | - |
|
Datasheet | 1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.015" W (4.55mm x 0.39mm) | - | 0.134" (3.41mm) | - |
|
1812L125DRPTC RESET FUSE 15V 1.25A 1812 |
8,217 | - |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Digi-Reel® | Obsolete | Polymeric | 15V | 1.25 A | 2.5 A | 100 A | 0.4 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|

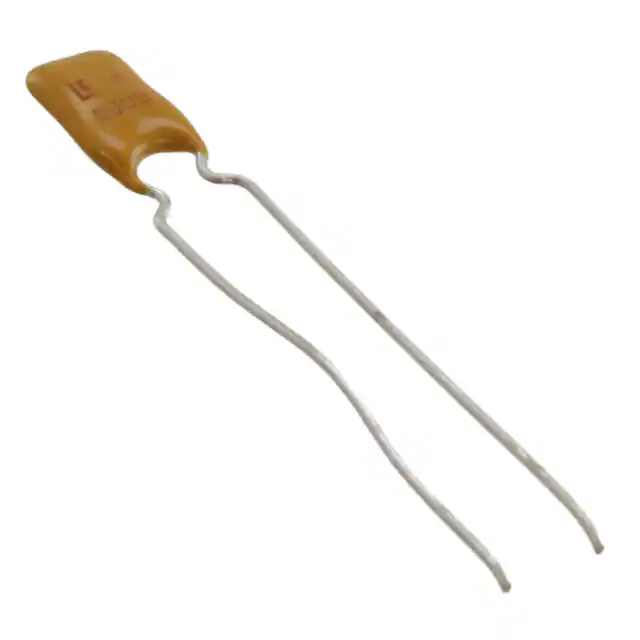

16R090BPRPTC RESET FUSE 16V 900MA RADIAL |
9,872 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, USBR | Cut Tape (CT) | Obsolete | Polymeric | 16V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|

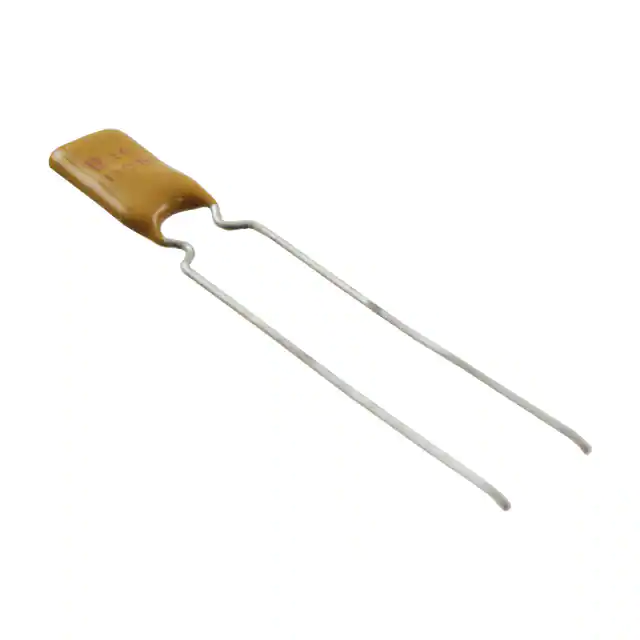

16R110BPRPTC RESET FUSE 16V 1.1A RADIAL |
6,712 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, USBR | Cut Tape (CT) | Obsolete | Polymeric | 16V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
0ZCD0200FF2CPTC RESET FUSE 16V 2A 2920 |
9,942 | - |
|
Datasheet | 2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2 A | 4 A | 40 A | 4.5 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
TRF600-160-RA-B-0.5-LPTC RESET FUSE 250V 160MA RADIAL |
3,575 | - |
|
Datasheet | Radial, Disc | PolySwitch® | Bag | Obsolete | Polymeric | 250V | 160 mA | 320 mA | 3 A | 9.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.200" (5.08mm) |
|
PTGL10AR3R9M3P51B0PTC RESET FUSE 56V 260MA RADIAL |
2,050 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 260 mA | 470 mA | 2 A | - | - | - | 3.9 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.413" Dia x 0.157" T (10.50mm x 4.00mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
PTGL07AR450H8B52A0PTC RESET FUSE 265V 105MA RADIAL |
5,526 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 105 mA | 200 mA | 1 A | - | - | - | 45 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.315" Dia x 0.236" T (8.00mm x 6.00mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
2016L500DR-APTC 6V POLYFUSE SURF MOUNT 2016 |
3,478 | - |
|
Datasheet | 2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 6V | 5 A | 10 A | 100 A | 2 s | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.063" (1.60mm) | - |
|

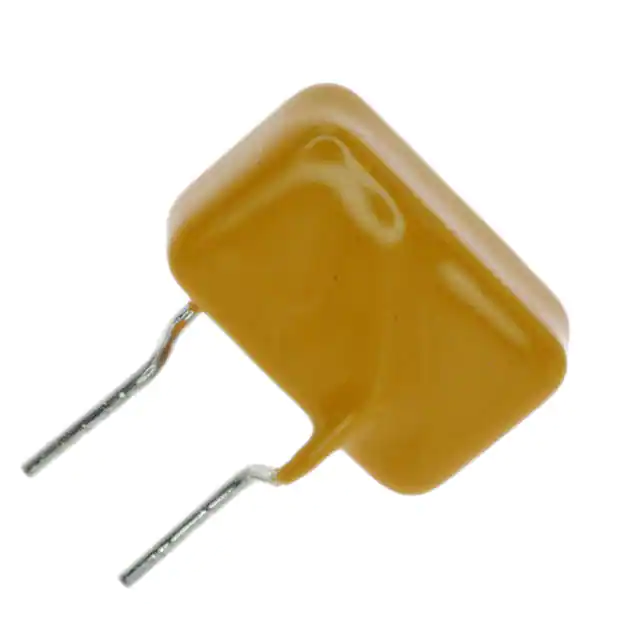

TR600-150-RA-B-0.5PTC RESET FUSE RADIAL DISC |
6,815 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TR600 | Bulk | Obsolete | Polymeric | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.532" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
PTCCL05H760HTEPTC RESET FUSE 265V 76MA RADIAL |
5,641 | - |
|
Datasheet | Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 76 mA | 115 mA | 550 mA | - | - | - | 85 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.217" T (5.00mm x 5.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
PTGL07BD6R8N2B51B0PTC RESET FUSE 24V 139MA RADIAL |
5,761 | - |
|
Datasheet | Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 24V | 139 mA | 296 mA | 2 A | - | - | - | 6.8 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
MINIASMDC110F/16-2PTC RESET FUSE 16V 1.1A 1812 |
1,186 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 300 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.019" (0.48mm) | - |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
