PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing

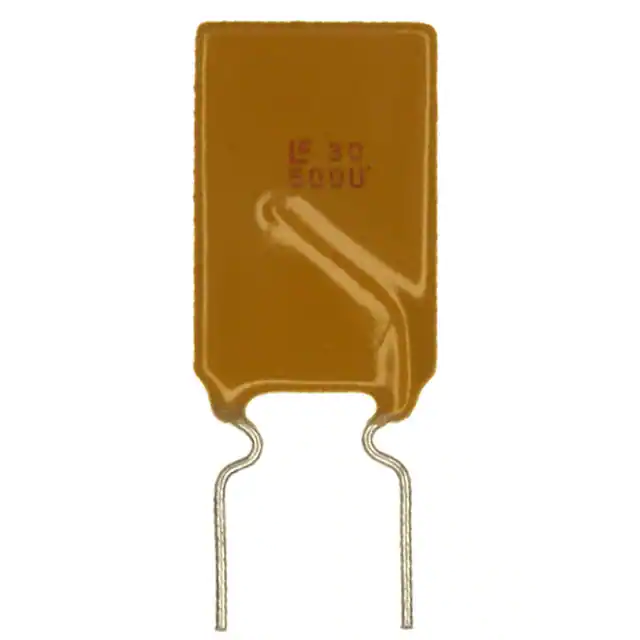

30R500U PTC RESET FUSE 30V 5A RADIAL Littelfuse Inc.	6,951	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 30R	Bulk	Obsolete	Polymeric	30V	5 A	10 A	40 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.551" L x 0.118" W (14.00mm x 3.00mm)	1.008" (25.60mm)	-	0.402" (10.20mm)
PTGL12AR5R6H4B71B0 PTC RESET FUSE 80V 350MA RADIAL Murata Electronics	8,101	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	80V	350 mA	650 mA	4.3 A	-	-	-	5.6 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.472" Dia x 0.177" W (12.00mm x 4.50mm)	0.709" (18.00mm)	-	0.295" (7.50mm)
YQB120N0025 PTC RESET FUSE 80V 100MA RADIAL Amphenol Advanced Sensors (Thermometrics)	9,654	-	RFQ	Datasheet	Radial, Disc	YQ	Bulk	Active	Ceramic	80V	100 mA	200 mA	1 A	-	-	-	25 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.256" Dia x 0.157" T (6.50mm x 4.00mm)	-	-	0.201" (5.10mm)
YQB120N0055 PTC RESET FUSE 80V 60MA RADIAL Amphenol Advanced Sensors (Thermometrics)	5,966	-	RFQ	Datasheet	Radial, Disc	YQ	Bulk	Active	Ceramic	80V	60 mA	120 mA	700 mA	-	-	-	55 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.157" Dia x 0.138" T (4.00mm x 3.50mm)	-	-	0.201" (5.10mm)
PTR060V0250-TR PTC RESET FUSE 60V 2.5A RADIAL Eaton - Electronics Division	6,868	-	RFQ	Datasheet	Radial, Disc	PTR060V	Tape & Reel (TR)	Active	Polymeric	60V	2.5 A	5 A	40 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.839" Dia x 0.118" T (21.30mm x 3.00mm)	1.039" (26.40mm)	-	0.394" (10.00mm)
PTR060V0250-TR1 PTC RESET FUSE 60V 2.5A RADIAL Eaton - Electronics Division	6,443	-	RFQ	Datasheet	Radial, Disc	PTR060V	Tape & Reel (TR)	Active	Polymeric	60V	2.5 A	5 A	40 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.839" Dia x 0.118" T (21.30mm x 3.00mm)	1.039" (26.40mm)	-	0.394" (10.00mm)
PTR060V0300-TR1 PTC RESET FUSE 60V 3A RADIAL Eaton - Electronics Division	9,611	-	RFQ	Datasheet	Radial, Disc	PTR060V	Tape & Reel (TR)	Active	Polymeric	60V	3 A	6 A	40 A	19.8 s	40 mOhms	100 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.980" Dia x 0.118" T (24.90mm x 3.00mm)	1.181" (30.00mm)	-	0.394" (10.00mm)
0ZCN0200FF2C PTC RESET FUSE 6V 2A 2016 Bel Fuse Inc.	2,729	-	RFQ	Datasheet	2016 (5041 Metric), Concave	0ZCN	Tape & Reel (TR)	Active	Polymeric	6V	2 A	4.2 A	100 A	3 s	48 mOhms	100 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.200" L x 0.160" W (5.08mm x 4.07mm)	-	0.022" (0.55mm)	-
0ZRN0750FF1A PTC RESET FUSE 16V 7.5A RADIAL Bel Fuse Inc.	6,809	-	RFQ	Datasheet	Radial, Disc	0ZRN	Bulk	Active	Polymeric	16V	7.5 A	13.1 A	100 A	7 s	9.4 mOhms	22 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.551" L x 0.118" W (14.00mm x 3.00mm)	0.925" (23.50mm)	-	0.201" (5.10mm)
0ZRN0800FF1A PTC RESET FUSE 16V 8A RADIAL Bel Fuse Inc.	7,860	-	RFQ	Datasheet	Radial, Disc	0ZRN	Bulk	Active	Polymeric	16V	8 A	15 A	100 A	8 s	8 mOhms	20 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.650" L x 0.118" W (16.50mm x 3.00mm)	0.886" (22.50mm)	-	0.201" (5.10mm)
0ZRN0900FF1A PTC RESET FUSE 16V 9A RADIAL Bel Fuse Inc.	8,875	-	RFQ	Datasheet	Radial, Disc	0ZRN	Bulk	Active	Polymeric	16V	9 A	16.5 A	100 A	10 s	7.4 mOhms	17 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.650" L x 0.118" W (16.50mm x 3.00mm)	1.012" (25.70mm)	-	0.201" (5.10mm)
YQS8103 PTC RESET FUSE 30V 120MA RADIAL Amphenol Advanced Sensors (Thermometrics)	2,792	-	RFQ	Datasheet	Radial, Disc	YP	Bulk	Active	Ceramic	30V	120 mA	240 mA	700 mA	-	-	-	13 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.177" Dia x 0.138" T (4.50mm x 3.50mm)	0.394" (10.00mm)	-	0.236" (6.00mm)
YQS8123 PTC RESET FUSE 30V 250MA RADIAL Amphenol Advanced Sensors (Thermometrics)	9,339	-	RFQ	Datasheet	Radial, Disc	YP	Bulk	Active	Ceramic	30V	250 mA	500 mA	1 A	-	-	-	4.6 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.256" Dia x 0.138" T (6.50mm x 3.50mm)	0.472" (12.00mm)	-	0.236" (6.00mm)
SMD075-2 POLYSWITCH 0.75A HOLD SMD Littelfuse Inc.	4,317	-	RFQ	Datasheet	2920 (7351 Metric)	PolySwitch®, SMD	Cut Tape (CT)	Obsolete	Polymeric	30V	750 mA	1.5 A	40 A	300 ms	350 mOhms	1 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.125" (3.18mm)	-
SMD125-2 POLYSWITCH 1.25A HOLD SMD Littelfuse Inc.	7,569	-	RFQ	Datasheet	2920 (7351 Metric)	PolySwitch®, SMD	Cut Tape (CT)	Obsolete	Polymeric	15V	1.25 A	2.5 A	40 A	2 s	70 mOhms	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.118" (3.00mm)	-
SMD030-2 POLYSWITCH 0.30A HOLD SMD Littelfuse Inc.	6,896	-	RFQ	Datasheet	2920 (7351 Metric)	PolySwitch®, SMD	Cut Tape (CT)	Obsolete	Polymeric	60V	300 mA	600 mA	10 A	3 s	1.2 Ohms	4.8 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.125" (3.18mm)	-
SMD100-2 POLYSWITCH 1.10A HOLD SMD Littelfuse Inc.	9,771	-	RFQ	Datasheet	2920 (7351 Metric)	PolySwitch®, SMD	Cut Tape (CT)	Obsolete	Polymeric	30V	1.1 A	2.2 A	40 A	500 ms	120 mOhms	480 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.200" L x 0.180" W (5.08mm x 4.58mm)	-	0.060" (1.52mm)	-
SMD050-2 POLYSWITCH 0.50A HOLD SMD Littelfuse Inc.	2,170	-	RFQ	Datasheet	2920 (7351 Metric)	PolySwitch®, SMD	Cut Tape (CT)	Obsolete	Polymeric	60V	500 mA	1 A	10 A	4 s	350 mOhms	1.4 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.125" (3.18mm)	-
PTR016V1300-TR1 PTC RESET FUSE 16V 13A RADIAL Eaton - Electronics Division	3,534	-	RFQ	Datasheet	Radial, Disc	PTR016V	Tape & Reel (TR)	Active	Polymeric	16V	13 A	22.1 A	100 A	8.5 s	2 mOhms	8 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.850" L x 0.122" W (21.60mm x 3.10mm)	1.260" (32.00mm)	-	0.394" (10.00mm)
PTGLCSAS2R2K4B51A0 PTC RESET FUSE 60V 556MA RADIAL Murata Electronics	9,164	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	60V	556 mA	739 mA	5 A	-	-	-	2.2 Ohms	-30°C ~ 125°C	-	-	-	Through Hole	0.453" Dia x 0.138" T (11.50mm x 3.50mm)	0.650" (16.50mm)	-	0.197" (5.00mm)

WINSUN SOURCING SUPPORT

Need PTC Resettable Fuses Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

PTC Resettable Fuses FAQ

Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.

What should I check when selecting PTC Resettable Fuses components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific PTC Resettable Fuses part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for PTC Resettable Fuses components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
