PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YPCL0055PTC RESET FUSE 265V 60MA RADIAL |
8,739 | - |
|
Datasheet | Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 60 mA | 125 mA | 1 A | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
1210L450/12SLWRPTC 12V POLYFUSE SMT 1210 SL 4.5 |
6,646 | - |
|
Datasheet | 1210 (3225 Metric), Concave | Lo Rho | Tape & Reel (TR) | Active | Polymeric | 12V | 4.5 A | 9 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
LVR075S-2PTC RESET FUSE 240V 750MA RADIAL |
5,013 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Obsolete | Polymeric | 240V (265V Int) | 750 mA | 1.5 A | 7.5 A | 18 s | 316 mOhms | 839 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.450" L x 0.189" W (11.43mm x 4.80mm) | 0.921" (23.40mm) | - | 0.200" (5.08mm) |
|
PTCTT95R500GTEPTC RESET FUSE 240V 90MA 4SMD |
3,129 | - |
|
Datasheet | 4-SMD | - | Tape & Reel (TR) | Active | Ceramic | 240V | 90 mA | 190 mA | 2.5 A | 1.2 s | - | - | 50 Ohms | -40°C ~ 85°C | - | - | - | Surface Mount | 0.354" L x 0.283" W (9.00mm x 7.20mm) | - | 0.272" (6.90mm) | - |
|
PTGL18AR120M9C01B0THERMISTOR PTC 125V 12 OHM 120C |
6,607 | - |
|
Datasheet | Radial, Disc | Posistor® | Bulk | Obsolete | Ceramic | - | - | - | - | - | - | - | 12 Ohms | - | - | - | - | Through Hole | - | - | - | - |
|
1206L380SLWRPTC RESET FUSE 6V 3.8A 1206 |
5,648 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.8 A | 8 A | 50 A | 3 s | 2 mOhms | 16 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
|
1206L300SLWRPTC RESET FUSE 6V 3A 1206 |
6,419 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 6 A | 50 A | 4 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
YS6176PTC RESET FUSE 75V RADIAL DISC |
5,150 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 75V | - | - | - | - | - | - | 6 Ohms | - | - | - | - | Through Hole | 0.650" Dia x 0.230" T (16.51mm x 5.84mm) | 0.900" (22.86mm) | - | 0.328" (8.33mm) |
|
1206L500SLWRPTC RESET FUSE 6V 5A 1206 |
4,497 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Not For New Designs | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 100 mOhms | 12 mOhms | - | - | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
PTCCL21H881FBEPTC RESET FUSE 145V 880MA RADIAL |
5,033 | - |
|
Datasheet | Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 880 mA | 1.32 A | 11 A | - | - | - | 1.7 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.807" Dia x 0.197" T (20.50mm x 5.00mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
TSM600-250-2POLYSWITCH 0.250A HOLD SMD |
9,674 | - |
|
Datasheet | 4-SMD | PolySwitch®, TSM | Cut Tape (CT) | Obsolete | Polymeric | 250V (600V Int) | 250 mA | 860 mA | 3 A | 6 s | 1 Ohms | 7 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.681" L x 0.425" W (17.30mm x 10.80mm) | - | 0.451" (11.45mm) | - |
|
0805L100WR-APTC RESET FUSE 6V 1A 0805 |
1,777 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 1 A | 1.95 A | 40 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.071" (1.80mm) | - |
|
|
TSM600-250-RA-2POLYSWITCH 0.250A HOLD SMD |
7,272 | - |
|
Datasheet | 4-SMD | PolySwitch®, TSM | Cut Tape (CT) | Obsolete | Polymeric | 250V | 250 mA | 860 mA | 3 A | 6 s | 1 Ohms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.681" L x 0.425" W (17.30mm x 10.80mm) | - | 0.461" (11.70mm) | - |
|
YM120D480N060PTC RESET FUSE 265V 407MA RADIAL |
5,340 | - |
|
Datasheet | Radial, Disc | YM120 | Bulk | Obsolete | Ceramic | 265V | 407 mA | 575 mA | 3.9 A | - | - | - | 6 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.689" Dia x 0.177" T (17.50mm x 4.50mm) | 0.787" (20.00mm) | - | 0.200" (5.08mm) |
|
|
1210L350SL-SYRPTC RESET FUSE 6V 3.5A 1210 |
2,883 | - |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.5 A | 7 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
|
PTCCL21H102FBEPTC RESET FUSE 145V 1A RADIAL |
1,344 | - |
|
Datasheet | Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 1 A | 1.5 A | 13 A | - | - | - | 1.3 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.807" Dia x 0.197" T (20.50mm x 5.00mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
B59758B0110A070PTC RESET FUSE 1.0KV RADIAL DISC |
4,397 | - |
|
Datasheet | Radial, Disc | - | Bulk | Obsolete | Ceramic | 1.0kV | - | 17 mA | 500 mA | 3 s | - | - | 7.5 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.492" Dia x 0.276" T (12.50mm x 7.00mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|

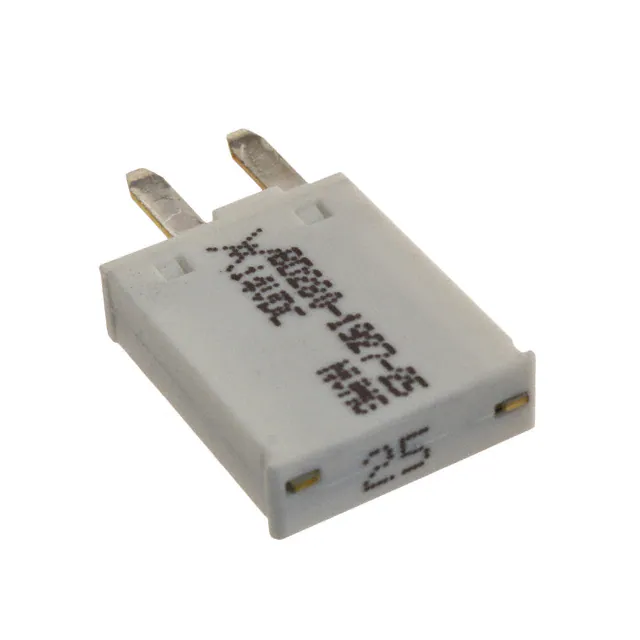

BD280-1927-25/16-WPTC RESET FUSE 14V 20A BLADE |
3,337 | - |
|
Datasheet | Blade Type | PolySwitch®, BD280 | Bulk | Active | Polymeric | 14V | 20 A | 32 A | 100 A | 13 s | 2.4 Ohms | 4.2 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Holder | 1.083" L x 0.756" W (27.50mm x 19.20mm) | 0.262" (6.65mm) | - | - |
|
BD280-1927-30/16-WPTC RESET FUSE 14V 21A BLADE |
9,492 | - |
|
Datasheet | Blade Type | PolySwitch®, BD280 | Bulk | Active | Polymeric | 14V | 21 A | 38 A | 100 A | 13 s | 2.1 Ohms | 4.3 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Holder | 1.083" L x 0.756" W (27.50mm x 19.20mm) | 0.262" (6.65mm) | - | - |
|
|
MHP-30-36-TPTC RESET FUSE 36V 30A BLADE |
3,449 | - |
|
Datasheet | Blade Type | MHP | Tray | Obsolete | Polymeric | 36V | 30 A | 50 A | 100 A | 4.5 s | - | - | - | - | - | - | - | Holder | 1.024" L x 0.370" W (26.00mm x 9.40mm) | 0.217" (5.50mm) | - | - |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
