PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

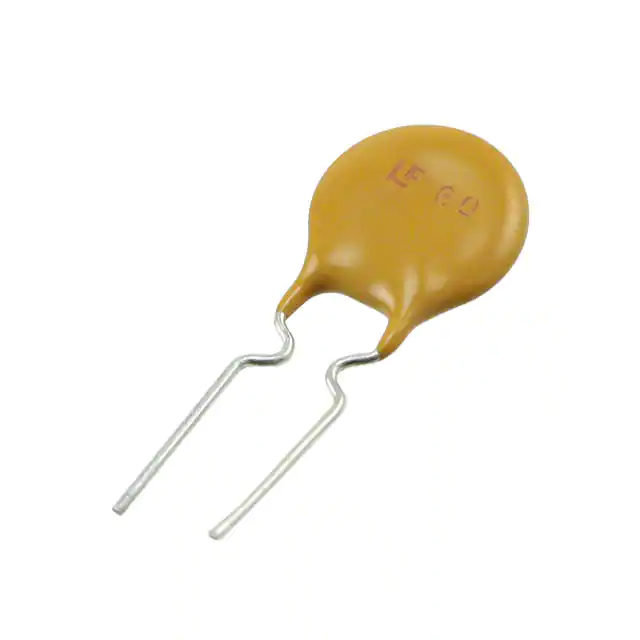

60R075XPRPTC RESET FUSE 60V 750MA RADIAL |
5,451 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.122" T (10.20mm x 3.10mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
MF-USML500/12-2PTC RESET FUSE 12V 5A 1210 |
3,121 | - |
|
Datasheet | 1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
60R110XMRPTC RESET FUSE 60V 1.1A RADIAL |
37,114 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.717" (18.20mm) | - | 0.201" (5.10mm) |
|
B59990C0080A070PTC RESET FUSE 80V 30MA RADIAL |
6,932 | - |
|
Datasheet | Radial, Disc | B59990 | Bulk | Active | Ceramic | 80V | 30 mA | 60 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|
B59995C0120A070PTC RESET FUSE 30V 120MA RADIAL |
6,057 | - |
|
Datasheet | Radial, Disc | B59995 | Bulk | Active | Ceramic | 30V | 120 mA | 240 mA | 700 mA | - | - | - | 13 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
.JPG "MF-NSMF020X-2")
|
MF-NSMF020X-2PTC RESET FUSE 30V 200MA 1206 |
33,736 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 60 A | 600 ms | 600 mOhms | 3.3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
2920L200DRPTC RESET FUSE 15V 2A 2920 |
10,335 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 15V | 2 A | 4 A | 40 A | 5 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
2016L150DRPTC RESET FUSE 15V 1.5A 2016 |
9,624 | - |
|
Datasheet | 2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 15V | 1.5 A | 3 A | 40 A | 1 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.061" (1.55mm) | - |
|
AHS120F/33-2PPTC-SMD-PSW |
7,807 | - |
|
Datasheet | 2-SMD | PolySwitch® AHS | Tape & Reel (TR) | Active | Polymeric | 33V | 1.2 A | 2.3 A | 20 A | 2 s | 150 mOhms | 340 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | 0.118" (3.00mm) | - | - |
|
MF-NSML400/6-2PTC RESET FUSE 6V 4A 1206 |
7,731 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 8 A | 50 A | 5 s | 2 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.055" (1.40mm) | - |
|
|
MF-NSMF050/16X-2FUSE RESET PPTC 1206 0.50A/16V |
7,724 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 750 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
|
MF-NSMF025/30X-2FUSE RESET PPTC 1206 0.25A/30V |
6,994 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 30V | 250 mA | 500 mA | 60 A | 50 ms | 450 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
|
MF-NSMF110/16X-2FUSE RESET PPTC 1206 1.1A/16V |
5,368 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 100 ms | 60 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - |
|
LVR033S-2PTC RESET FUSE 240V 330MA RADIAL |
5,291 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.650" (16.50mm) | - | 0.200" (5.08mm) |
|
60R090XPRPTC RESET FUSE 60V 900MA RADIAL |
3,108 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.122" T (11.20mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|
MF-MSHT035KX-21812 HIGH TEMP SMD POLYMER PTC 0 |
4,474 | - |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse® MF-MSHT | Tape & Reel (TR) | Active | Polymeric | 36V | 350 mA | 1.75 A | 40 A | 100 ms | 300 mOhms | 2.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
0ZRE0055FF2APTC RESET FUSE 240V 550MA RADIAL |
3,970 | - |
|
Datasheet | Radial, Disc | 0ZRE | Tape & Reel (TR) | Active | Polymeric | 240V | 550 mA | 1.25 A | 7 A | 26 s | 450 mOhms | 1.45 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
AHEF100PTC RESET FUSE 32V 1A RADIAL |
2,809 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 1 A | 1.9 A | 100 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.199" (5.05mm) |
|
CMF-RL25U-0PTC RESET FUSE 220V 60MA RADIAL |
2,500 | - |
|
Datasheet | Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 60 mA | 150 mA | 900 mA | 250 ms | - | - | 25 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.205" L x 0.138" W (5.20mm x 3.50mm) | 0.205" (5.20mm) | - | 0.197" (5.00mm) |
|
2920L075/72MR2920L |
2,236 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | - | 72V | 750 mA | 1.5 A | 10 A | 300 ms | 240 mOhms | 950 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.071" (1.80mm) | - |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
