PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
MF-LSMF500/16X-2 2920 RESETTABLE SMD PPTC 5.0A/16 Bourns Inc.	2,713	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Multifuse®, MF-LSMF	Tape & Reel (TR)	Active	Polymeric	16V	5 A	-	-	-	-	-	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	-	-
PTCTL8NR100HBE PTC RESET FUSE 250V 100MA RADIAL Vishay Beyschlag/Draloric/BC Components	600	-	RFQ	Datasheet	Radial, Disc	-	Bulk	Active	Ceramic	250V	100 mA	450 mA	10 A	40 s	-	-	10 Ohms	0°C ~ 70°C	-	-	-	Through Hole	0.535" Dia x 0.236" T (13.60mm x 6.00mm)	0.732" (18.60mm)	-	0.197" (5.00mm)
1206L150SLYR PTC RESET FUSE 6V 1.5A 1206 Littelfuse Inc.	10,983	-	RFQ	Datasheet	1206 (3216 Metric), Concave	POLY-FUSE®, LoRho	Tape & Reel (TR)	Active	Polymeric	6V	1.5 A	3.9 A	50 A	300 ms	10 mOhms	65 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.126" L x 0.065" W (3.20mm x 1.65mm)	-	0.028" (0.70mm)	-
0805L200SLTHYR PTC RESET FUSE 6V 2A 0805 Littelfuse Inc.	10,219	-	RFQ	Datasheet	0805 (2012 Metric), Concave	POLY-FUSE®, LoRho	Tape & Reel (TR)	Active	Polymeric	6V	2 A	4 A	50 A	1 s	5 mOhms	45 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.083" L x 0.053" W (2.10mm x 1.35mm)	-	0.030" (0.75mm)	-
0603L200SL-VYR PTC RESET FUSE 2.0A 6V 0603 Littelfuse Inc.	7,435	-	RFQ	Datasheet	0603 (1608 Metric), Concave	POLY-FUSE®, LoRho	Tape & Reel (TR)	Active	Polymeric	6V	2 A	4 A	50 A	1 s	5 mOhms	40 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.063" L x 0.031" W (1.60mm x 0.80mm)	-	0.039" (1.00mm)	-
1206L380SLTHYR PTC RESET FUSE 6V 2.82A 1206 Littelfuse Inc.	6,840	-	RFQ	Datasheet	1206 (3216 Metric), Concave	POLY-FUSE®, LoRho	Tape & Reel (TR)	Active	Polymeric	6V	2.82 A	8 A	50 A	5 s	2 mOhms	14 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.028" (0.70mm)	-
1206L200SLYR PTC RESET FUSE 6V 2A 1206 Littelfuse Inc.	5,032	-	RFQ	Datasheet	1206 (3216 Metric), Concave	POLY-FUSE®, LoRho	Tape & Reel (TR)	Active	Polymeric	6V	2 A	4 A	50 A	500 ms	5 mOhms	25 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.024" (0.60mm)	-

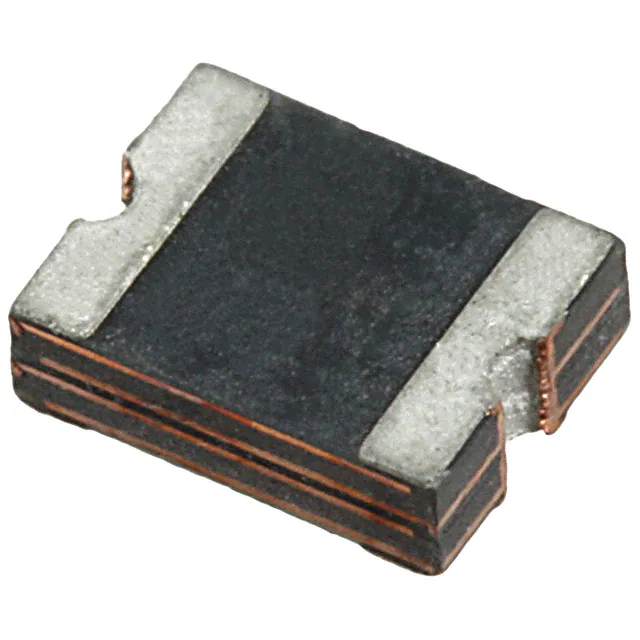

1210L300SLWR PTC RESET FUSE 6V 3A 1210 Littelfuse Inc.	983	-	RFQ	Datasheet	1210 (3225 Metric), Concave	POLY-FUSE®, LoRho	Tape & Reel (TR)	Active	Polymeric	6V	3 A	6 A	50 A	2 s	3 mOhms	20 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.028" (0.70mm)	-
B59115P1080A062 PTC RESET FUSE 80V 40MA 3225 EPCOS - TDK Electronics	20,959	-	RFQ	Datasheet	3225 (8063 Metric)	B59115	Tape & Reel (TR)	Active	Ceramic	80V	40 mA	85 mA	700 mA	-	-	-	55 Ohms	-40°C ~ 60°C	Automotive	AEC-Q200	-	Surface Mount	0.315" L x 0.248" W (8.00mm x 6.30mm)	-	0.150" (3.80mm)	-
B59215P1080A062 PTC RESET FUSE 80V 65MA 3225 EPCOS - TDK Electronics	20,079	-	RFQ	Datasheet	3225 (8063 Metric)	B59215	Tape & Reel (TR)	Active	Ceramic	80V	65 mA	135 mA	1 A	-	-	-	25 Ohms	-40°C ~ 60°C	Automotive	AEC-Q200	-	Surface Mount	0.315" L x 0.248" W (8.00mm x 6.30mm)	-	0.150" (3.80mm)	-
B59101P1120A062 PTC RESET FUSE 24V 355MA 2SMD EPCOS - TDK Electronics	6,743	-	RFQ	Datasheet	2-SMD	B59101	Tape & Reel (TR)	Active	Ceramic	24V	355 mA	-	170 mA	-	7.8 Ohms	13 Ohms	-	-40°C ~ 60°C	Automotive	AEC-Q200	-	Surface Mount	0.398" L x 0.138" W (10.10mm x 3.50mm)	-	0.150" (3.80mm)	-
B59201P1080A062 PTC RESET FUSE 30V 165MA 3225 EPCOS - TDK Electronics	1,952	-	RFQ	Datasheet	3225 (8063 Metric)	B59201	Tape & Reel (TR)	Active	Ceramic	30V	165 mA	340 mA	1 A	-	-	-	4.6 Ohms	-40°C ~ 60°C	Automotive	AEC-Q200	-	Surface Mount	0.315" L x 0.248" W (8.00mm x 6.30mm)	-	0.150" (3.80mm)	-
1812L300MR PTC RESET FUSE 6V 3A 1812 Littelfuse Inc.	3,520	-	RFQ	Datasheet	1812 (4532 Metric), Concave	POLY-FUSE®, 1812L	Tape & Reel (TR)	Active	Polymeric	6V	3 A	5 A	100 A	4 s	12 mOhms	40 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.059" (1.50mm)	-
1812L010/60DR PTC RESET FUSE 60V 100MA 1812 Littelfuse Inc.	2,081	-	RFQ	Datasheet	1812 (4532 Metric), Concave	POLY-FUSE®, 1812L	Tape & Reel (TR)	Active	Polymeric	60V	100 mA	300 mA	10 A	1.5 s	1.6 Ohms	15 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.049" (1.25mm)	-
CL20 250120 PTC RESET FUSE 480V 300MA RADIAL Ametherm	3,601	-	RFQ	Datasheet	Radial, Disc	-	Bulk	Active	-	480V	300 mA	600 mA	-	-	-	-	25 Ohms	-	-	-	-	Through Hole	0.866" Dia x 0.236" T (22.00mm x 6.00mm)	-	-	0.307" (7.80mm)
B59940C0120A070 PTC RESET FUSE 80V 450MA RADIAL EPCOS - TDK Electronics	580	-	RFQ	Datasheet	Radial, Disc	B59940	Bulk	Active	Ceramic	80V	450 mA	900 mA	8 A	-	-	-	2.3 Ohms	-40°C ~ 125°C	-	-	-	Through Hole	0.866" Dia x 0.138" T (22.00mm x 3.50mm)	1.004" (25.50mm)	-	0.197" (5.00mm)
0805L150/12SLYR LOW RHO SMD Littelfuse Inc.	2,719	-	RFQ	Datasheet	0805 (2012 Metric), Concave	PolySwitch® Low Rho	Tape & Reel (TR)	Active	Polymeric	12V	1.5 A	3 A	50 A	500 ms	7 mOhms	80 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.083" L x 0.053" W (2.10mm x 1.35mm)	-	0.030" (0.75mm)	-
0603L003/36YR-A PTC 36V POLYFUSE SMD 0603 .030A Littelfuse Inc.	2,299	-	RFQ	Datasheet	0603 (1608 Metric), Concave	POLY-FUSE®, 0603L	Tape & Reel (TR)	Active	Polymeric	36V	30 mA	90 mA	40 A	1 s	6 Ohms	50 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.063" L x 0.031" W (1.60mm x 0.80mm)	-	0.039" (1.00mm)	-
2920L330/24MR-A PTC RESET FUSE 24V 3.3A 2920 Littelfuse Inc.	2,007	-	RFQ	Datasheet	2920 (7351 Metric), Concave	POLY-FUSE®, 2920L	Tape & Reel (TR)	Active	Polymeric	24V	3.3 A	5.5 A	40 A	5 s	15 mOhms	55 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.079" (2.00mm)	-
AHEF1000 PTC RESET FUSE 32V 10A RADIAL Littelfuse Inc.	579	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHEF	Bag	Active	Polymeric	32V	10 A	20 A	100 A	15 s	6 mOhms	16 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.925" L x 0.157" W (23.50mm x 4.00mm)	1.098" (27.90mm)	-	0.400" (10.15mm)

WINSUN SOURCING SUPPORT

Need PTC Resettable Fuses Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

PTC Resettable Fuses FAQ

Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.

What should I check when selecting PTC Resettable Fuses components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific PTC Resettable Fuses part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for PTC Resettable Fuses components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
